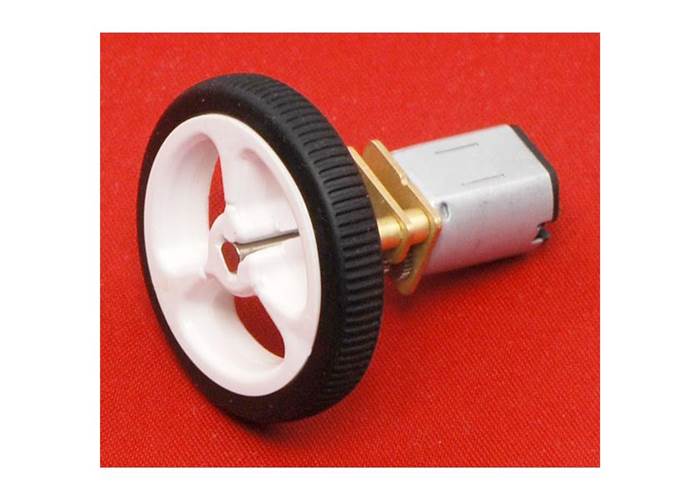

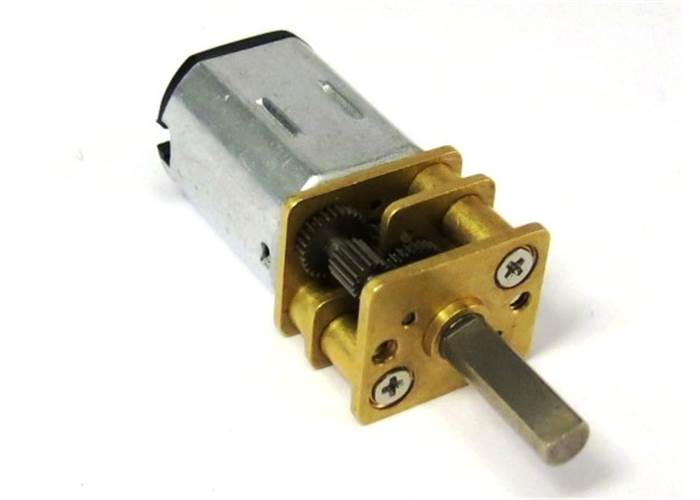

This high quality, low current miniature 6V gear motor has a 298:1 gear ratio and is similar to Sanyo's popular 12mm gearmotors. The 3mm D-shaped output shaft is 9.3mm long to enable press fitting to many different wheels. Key specs at 6 V: 45 RPM and 30 mA free-run, 40 oz-in (2.9 kg-cm) and 0.36 A stall.
In stock in Australia
We can ship more in 7 days
Our Code: MEC-30127
Designed for operation at 6V the motor is suitable over a range of about 3-9V beyond which the performance or motor life may degrade.
Key specs at 6 V: 45 RPM and 30 mA free-run, 40 oz-in (2.9 kg-cm) and 0.36 A stall.

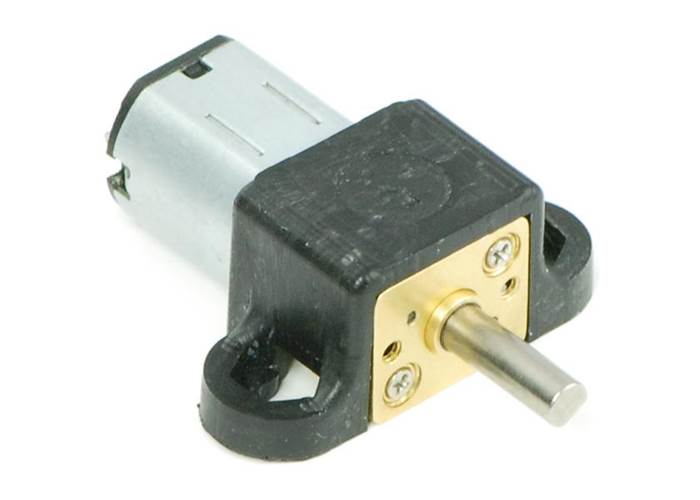

Two M1.6 screw holes are available on the face plate of the motor to mount the motor on the inside of a chassis or alternatively the micro metal gearmotor mounting bracket or extended micro metal gearmotor mounting bracket can be used.

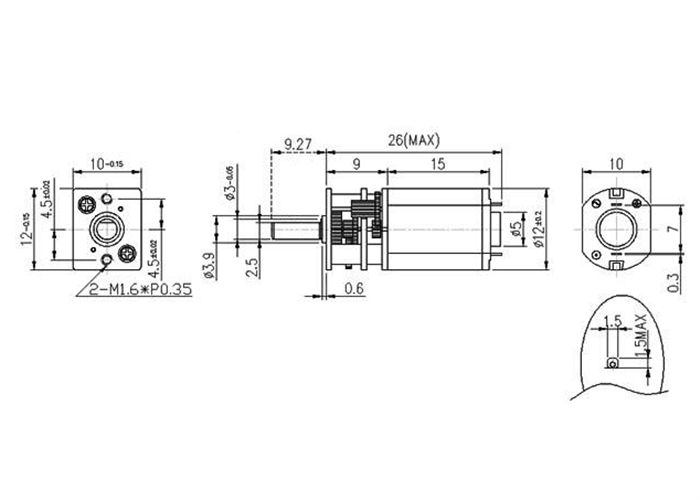

|Size||24 x 10 x 12 mm|
|Weight||0.34oz / 9.6g|
|Shaft||3mm Ø, 9.6mm length, D shaft|
|Free-run speed @ 6V||45RPM|
|Free-run current @6V||30mA|
|Stall current @6V||360mA|
|Stall torque @6V||40oz-in / 2.9kg-cm|
All the micro metal gear motors have the same dimensions but vary in gear ratios and motor power.
