Pololu Zumo Chassis Kit (No Motors)


Overview

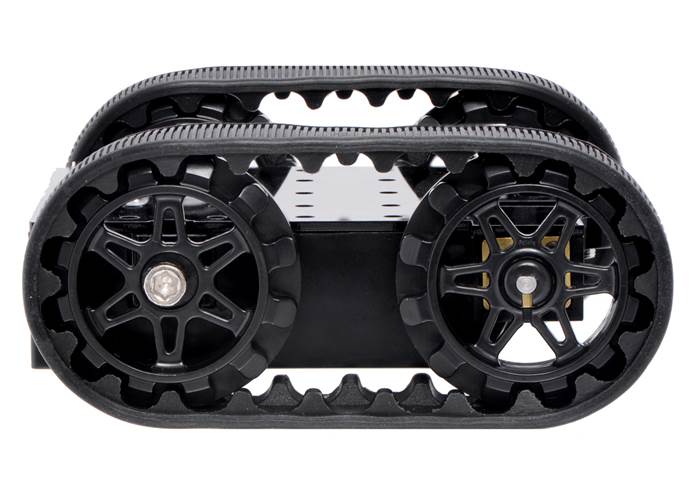

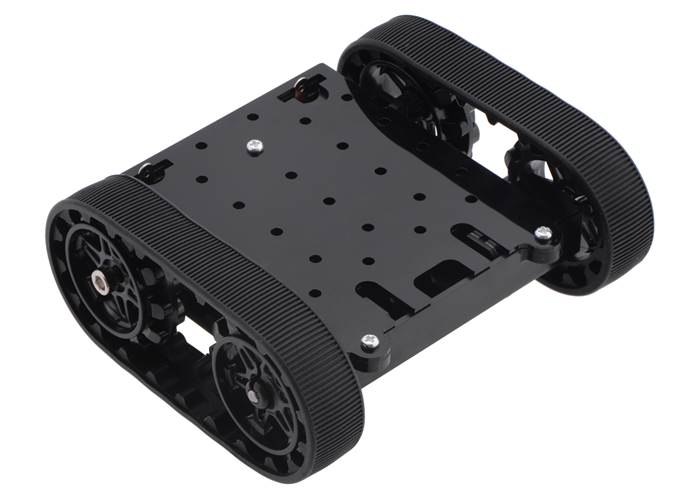

The Pololu Zumo chassis kit contains the components necessary to build a small, high-performance tracked robot platform that is compact enough to qualify for Mini Sumo competitions. Each side of the chassis has an idler sprocket that spins freely and a drive sprocket that connects to a micro metal gearmotor (not included). The main body is composed of ABS plastic and has sockets for two micro metal gearmotors and a compartment for four AA batteries (not included). The battery compartment terminals protrude through the chassis and can be accessed from the top side. A black acrylic plate is included with the chassis. This plate holds the motors in place and can be used for mounting your electronics, such as your microcontroller, motor drivers, and sensors. Assembly instructions are available in the user’s guide under the resources tab.

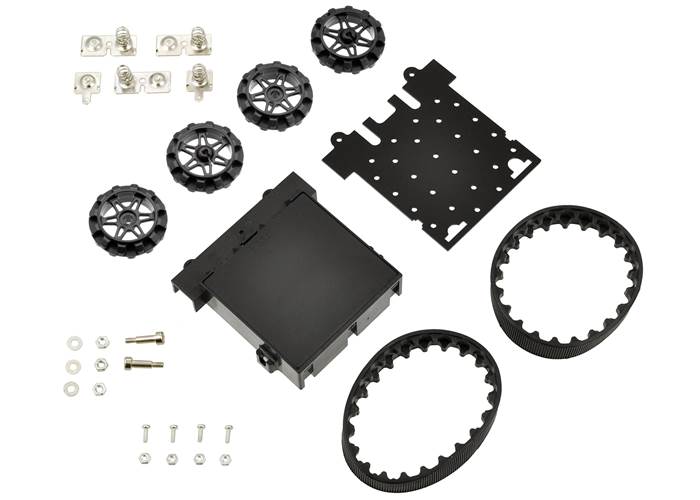

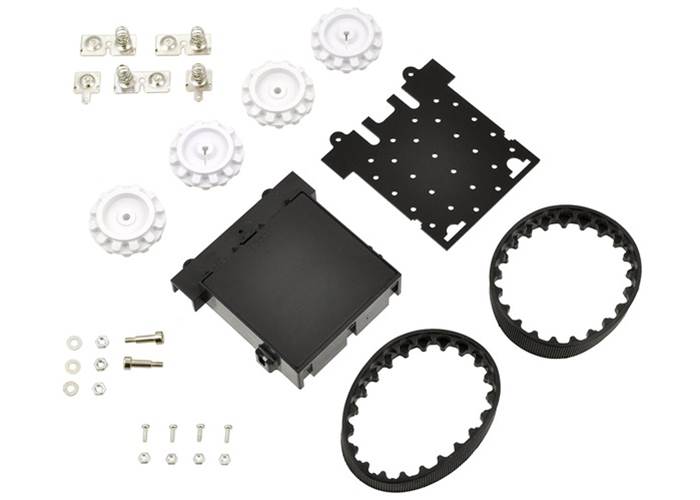

Pololu Zumo chassis kit components

Pololu Zumo chassis kit components



Motors (Not Included)

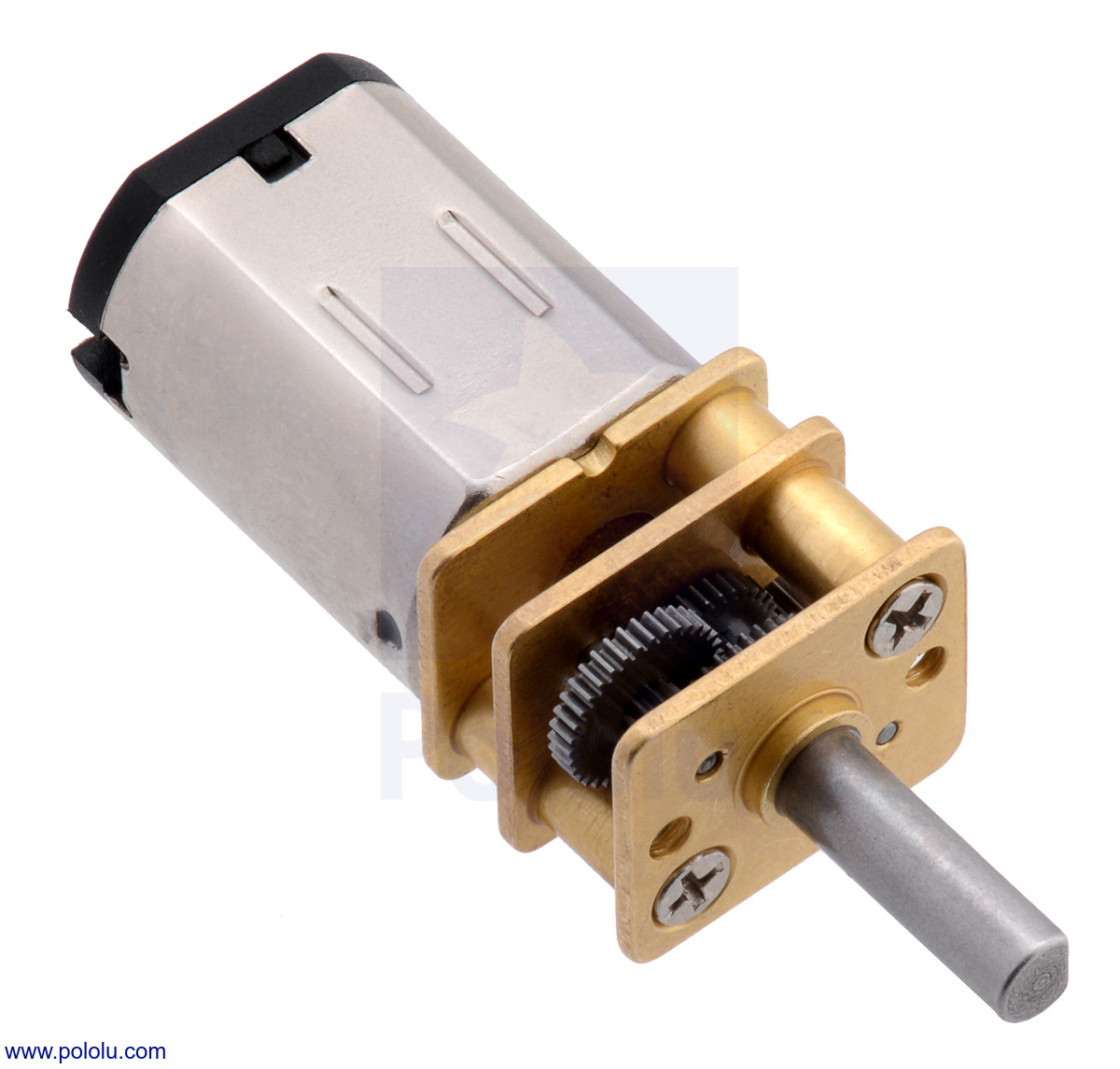

Micro metal gear motor



The Zumo chassis uses two motors, one for each tread. The ideal motors for your robot depend on your desired torque, speed, and current draw, so motors are not included with the chassis. If you have limited ability to supply current, we recommend using lower-power non-HP motors, which have a stall current of 360 mA at 6 V; if you have the ability to deliver more current, the HP micro metal gearmotors offer more torque and speed for the same gear ratio.

We recommend the 50:1, 75:1, or 100:1 HP motors for use with this chassis if you are using sufficiently powerful motor drivers, but the non-HP versions of those gear ratios should also work decently (just with lower torque and speed). The 30:1 micro metal gearmotors might also work, but note that non-HP 30:1 motors do not offer much torque, so they are not very practical for sumobots and the robot might have difficulty turning on high-friction surfaces like carpet, and 30:1 HP motors will make the more difficult to control due to its higher top speed. The following table shows theoretical limits based on the motor specifications alone (the weight of the chassis and the load imposed by the tracks will decrease the motor speed). Note that the specifications are for 6V operation, while four NiMH AA cells will typically provide less than 5V.

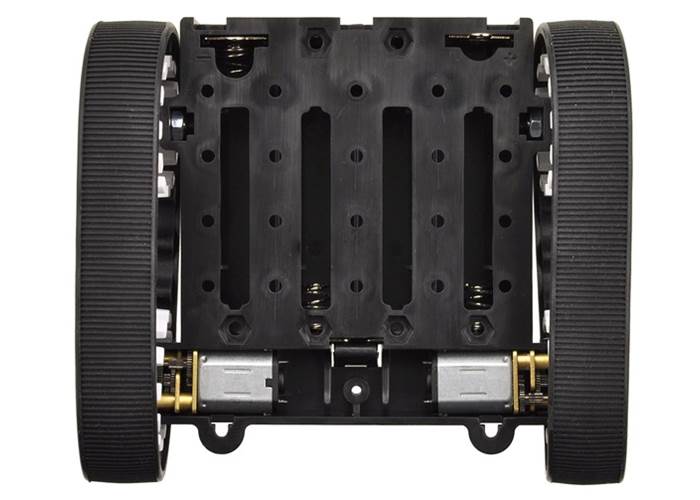

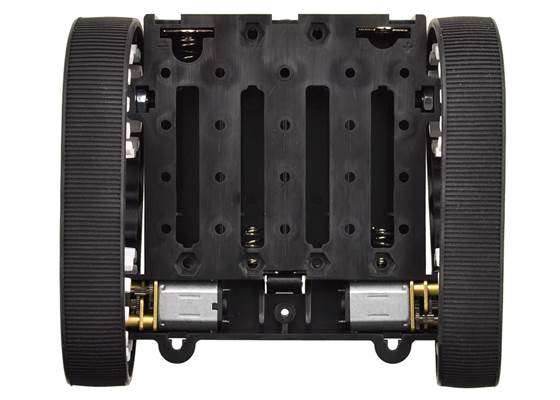

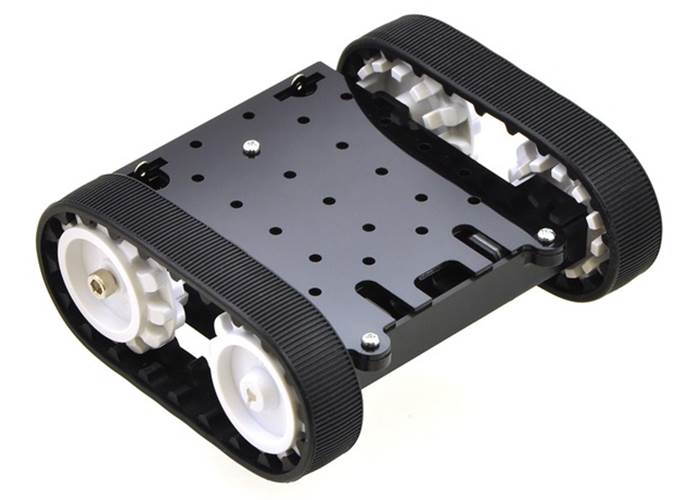

Pololu Zumo chassis kit - with motors fitted (not included)

Pololu Zumo chassis kit - with motors fitted (not included)



Micro Metal
Gearmotor

Speed
@ 6V

Top Zumo Speed
@ 6V

Stall Torque
@ 6V

Stall Current
@ 6V

100:1 HP 320 RPM 25 in/s (65 cm/s) 30 oz·in 1600 mA
75:1 HP 400 RPM 32 in/s (80 cm/s) 22 oz·in 1600 mA
50:1 HP 625 RPM 50 in/s (130 cm/s) 15 oz·in 1600 mA
30:1 HP 1000 RPM 80 in/s (200 cm/s) 9 oz·in 1600 mA
100:1 120 RPM 10 in/s (25 cm/s) 12 oz·in 360 mA
75:1 170 RPM 14 in/s (35 cm/s) 9 oz·in 360 mA
50:1 250 RPM 20 in/s (50 cm/s) 7 oz·in 360 mA
30:1 440 RPM 35 in/s (90 cm/s) 4 oz·in 360 mA

Electronics (not included)

The Zumo Shield for Arduino is designed specifically to act as an interface between an Arduino Uno or Leonardo and the Zumo chassis. The shield provides all the electronics necessary to power the motors and includes some additional fun components for making a more interesting robot, such as a buzzer for making sounds and a 3-axis accelerometer and compass. The Zumo chassis is also available bundled with a Zumo Shield and Zumo blade. If you are assembling your chassis with the Zumo shield, please follow the Zumo shield assembly instructions in place of the more general Zumo chassis assembly instructions.

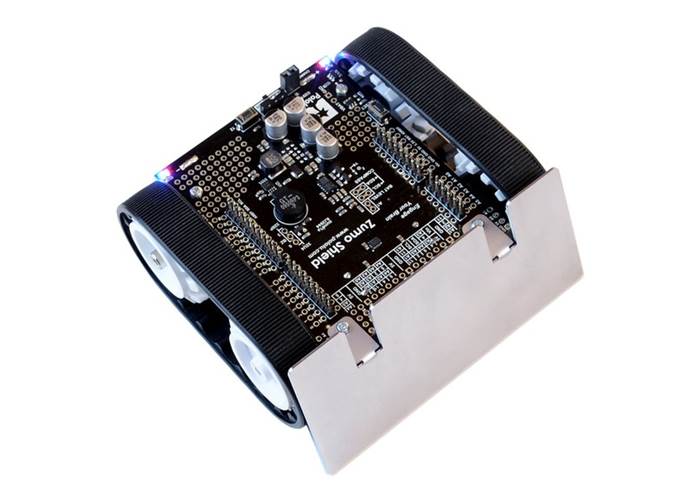

Zumo chassis kit, assembled with Zumo Shield and Zumo blade

Zumo chassis kit, assembled with Zumo Shield and Zumo blade

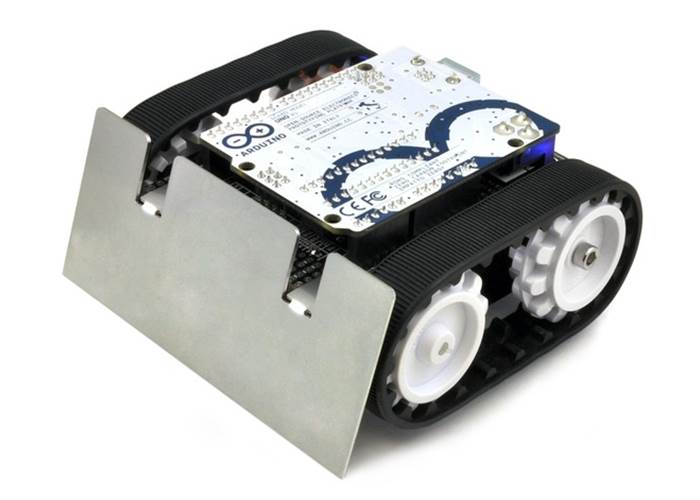

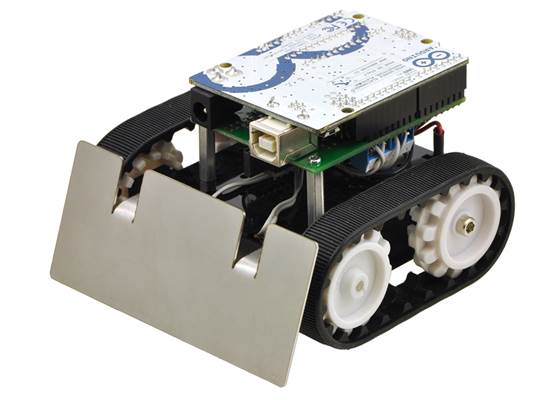

Assembled Zumo robot with a Zumo Shield, Arduino Uno, and Zumo blade

Assembled Zumo robot with a Zumo Shield, Arduino Uno, and Zumo blade



If your goal is to make a robot based around a controller other than an Arduino, we recommend the DRV8833 motor driver carrier or qik 2s9v1 for use with this chassis.

Batteries (not included)

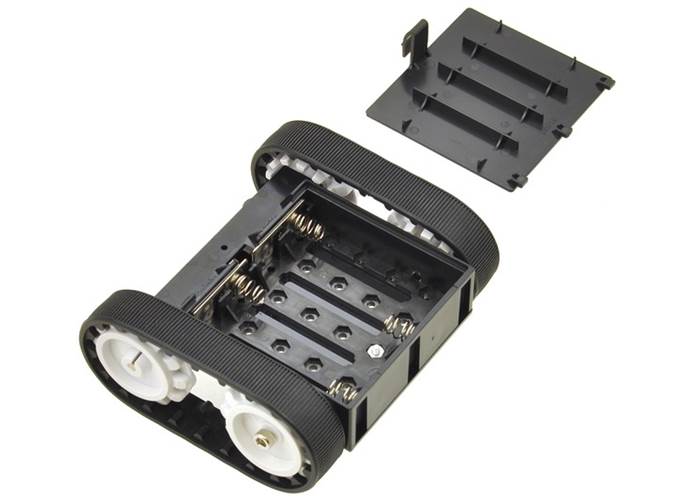

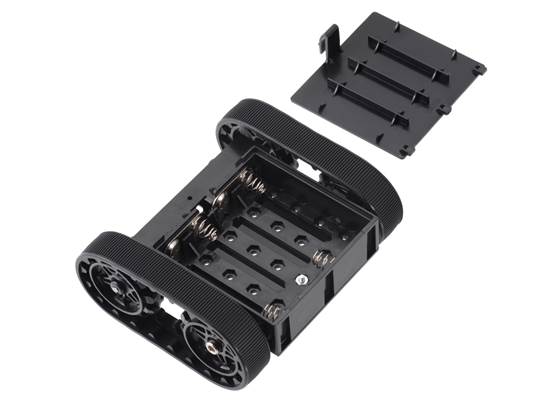

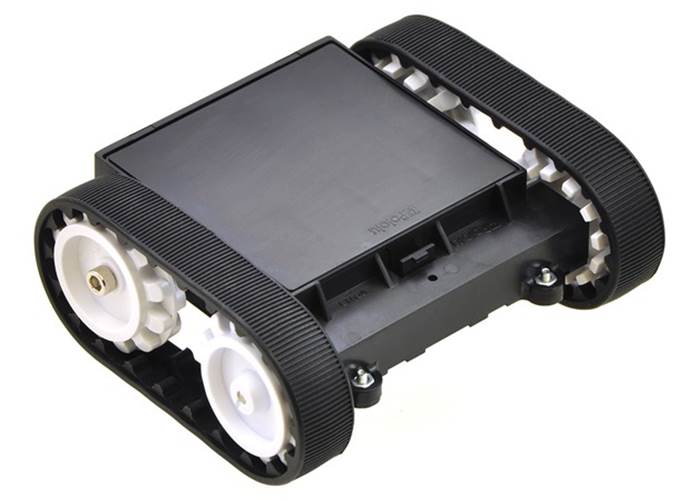

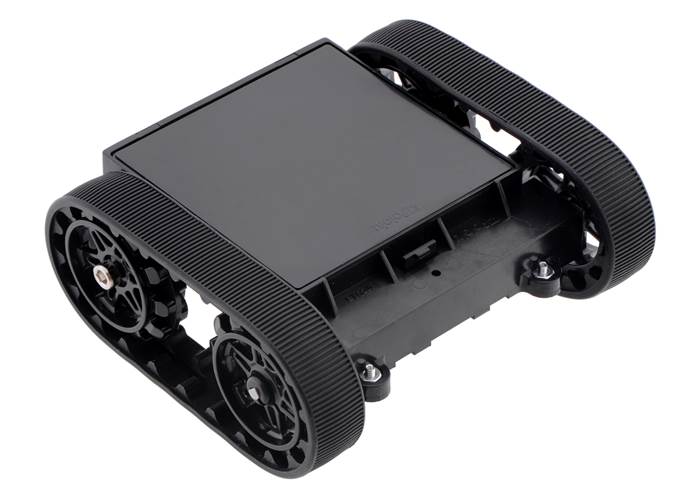

Pololu Zumo chassis kit, assembled bottom (2)



This chassis works with four AA batteries. We recommend using rechargeable AA NiMH cells, which results in a nominal voltage of 4.8 V (1.2 V per cell). When the batteries are fully charged, they will be well above 5 V, and when they are almost spent, they will be well below 5 V. As such, you might consider using a step-up/step-down voltage regulator to power your logic, since this will hold your logic voltage steady at 5 V, no matter if your battery voltage is above or below 5 V. You can also use alkaline cells, which would nominally give you 6V, but that voltage would drop depending on the load.

Basic sumo blade (not included)

We carry a basic stainless steel sumo blade that can be mounted to front of the Zumo chassis. With this blade, the Zumo chassis can push around objects, such as other MiniSumo robots. You can also use the design file for this basic blade as the starting point for a custom sumo blade.

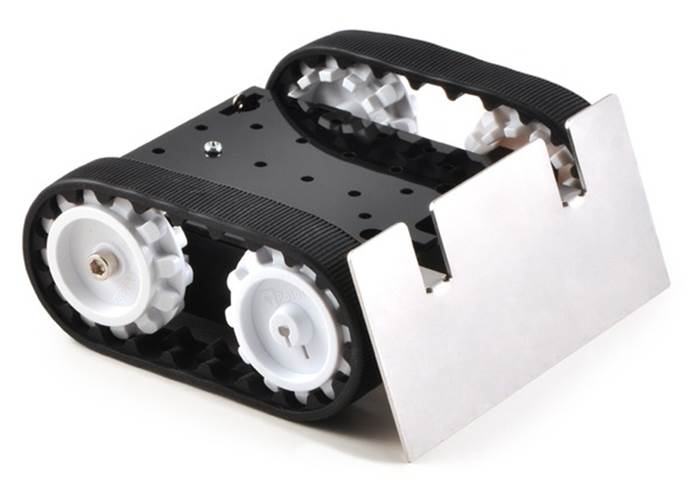

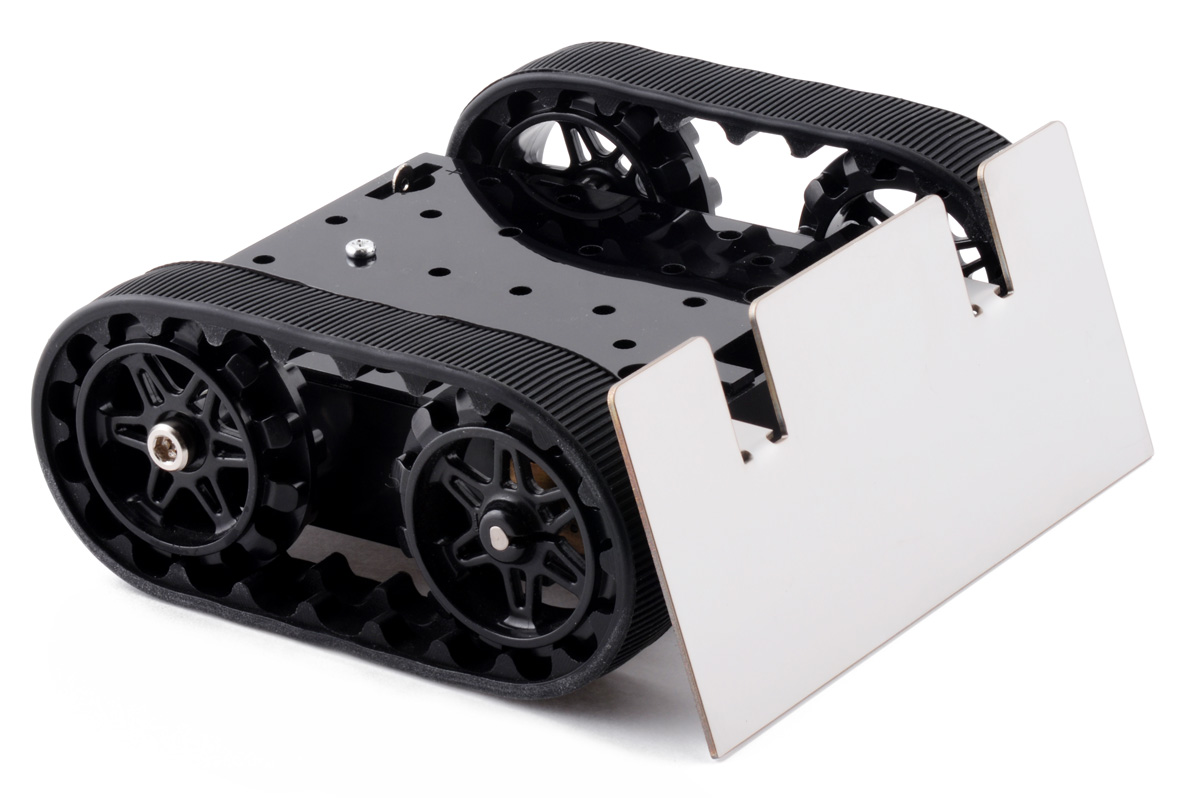

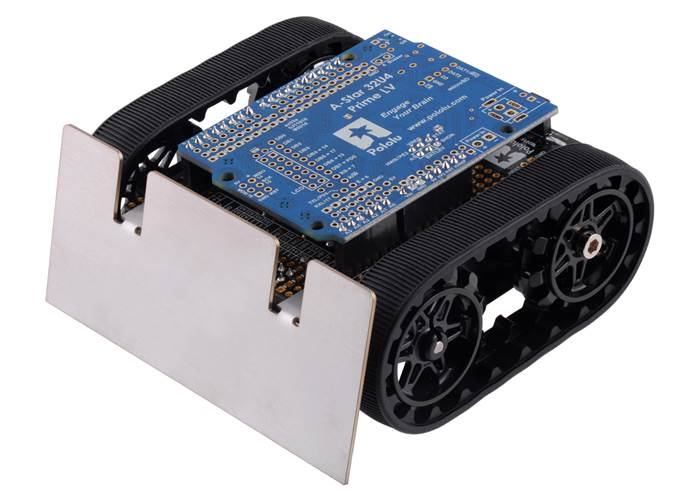

Basic sumo blade mounted on a Zumo chassis

Basic sumo blade mounted on a Zumo chassis



Dimensions

Fully assembled, the Zumo chassis is 98 mm wide, 86 mm long, and 39 mm high, with approximately 5 mm of ground clearance.

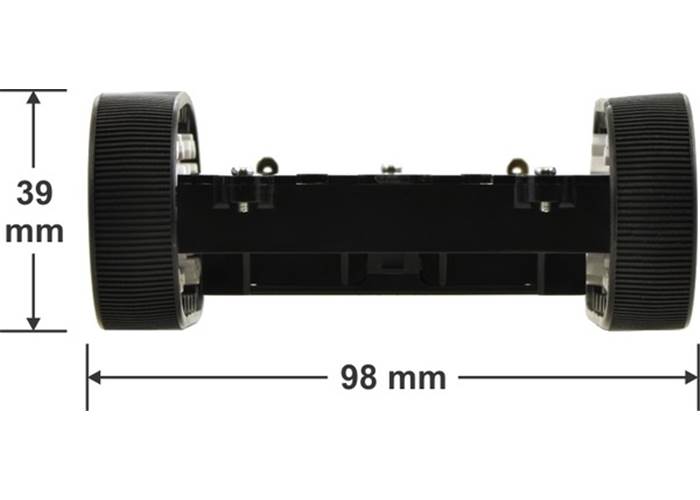

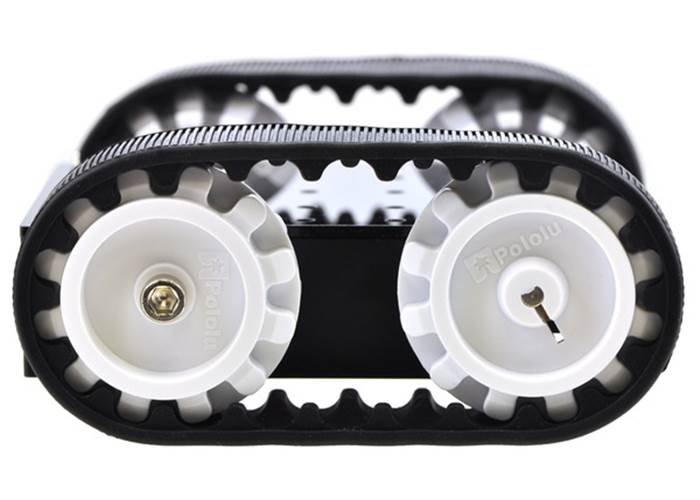

Pololu Zumo chassis kit - side dimensions

Pololu Zumo chassis kit - side dimensions

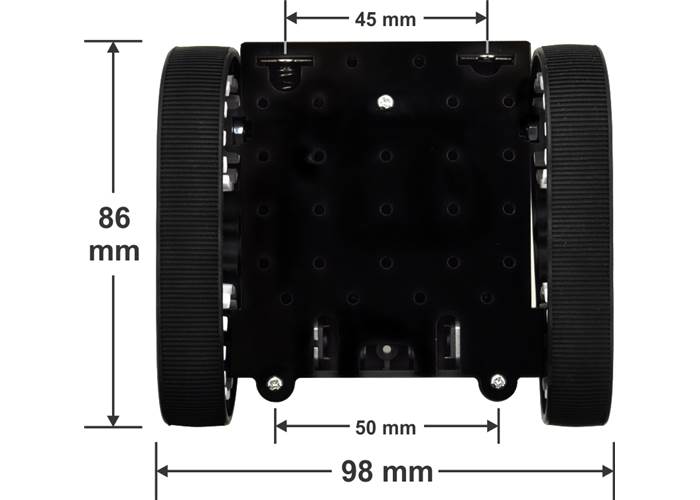

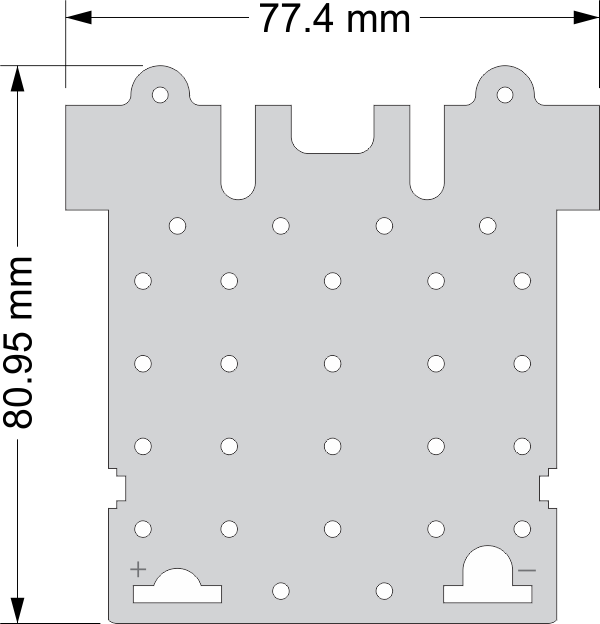

Pololu Zumo chassis kit, top dimensions

Pololu Zumo chassis kit, top dimensions



Since each side is smaller than 10 cm, this chassis meets Mini-Sumo size requirements. The front screws used to mount the acrylic plate to the chassis can also be used to mount a front scoop that can extend up to 14 mm before exceeding the Mini Sumo limits. The assembled Zumo chassis weighs approximately 210 g with motors and batteries.

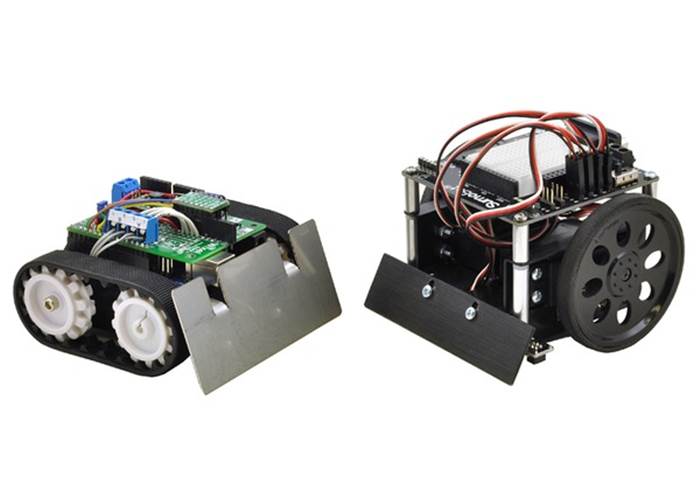

Pololu Zumo next to a Parallax SumoBot

Pololu Zumo next to a Parallax SumoBot
