30:1 Micro Metal Gearmotor (High Power)

AUD $20.95

In Stock: Ships Today

Back orders: Ship in 7 days

Our Code: MEC-30013

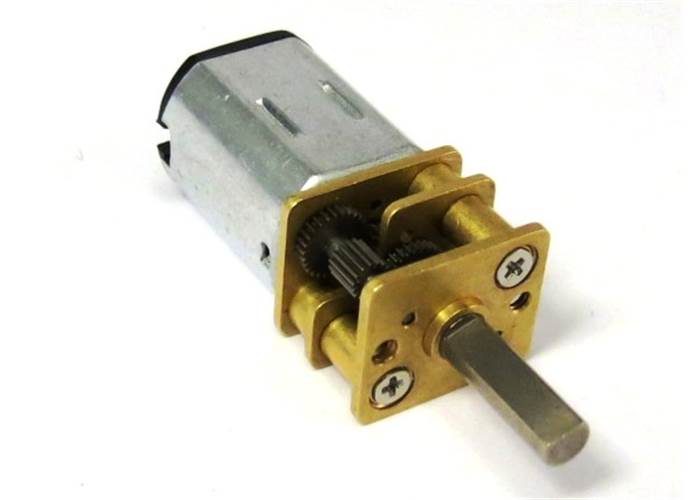

This high quality, high power miniature 6V gear motor has a 30:1 gear ratio and is similar to Sanyo's popular 12mm gearmotors. The 3mm D-shaped output shaft is 9.3mm long to enable press fitting to many different wheels. At 6V the motor operates at 1000RPM, 120mA free-run, 8 oz-in (0.6kg-cm) torque and 1.6A stall.


Overview

Power

Designed for operation at 6V the motor is suitable over a range of about 3-9V beyond which the performance or motor life may degrade.

The high power motor produces a shaft speed of 1000RPM and draws 120mA at free-run and 1.6A at stall at 6V. The maximum torque is 8oz-in (0.6kg-cm).

Mounting Wheels & Encoders

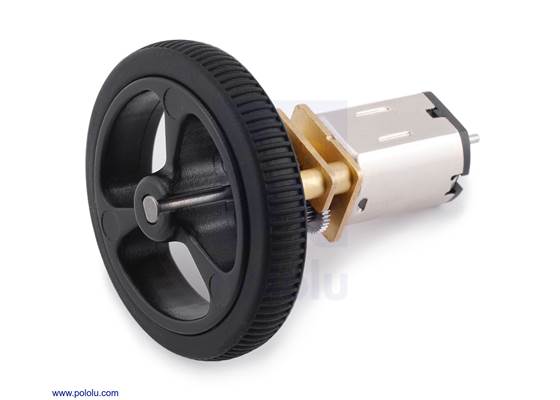

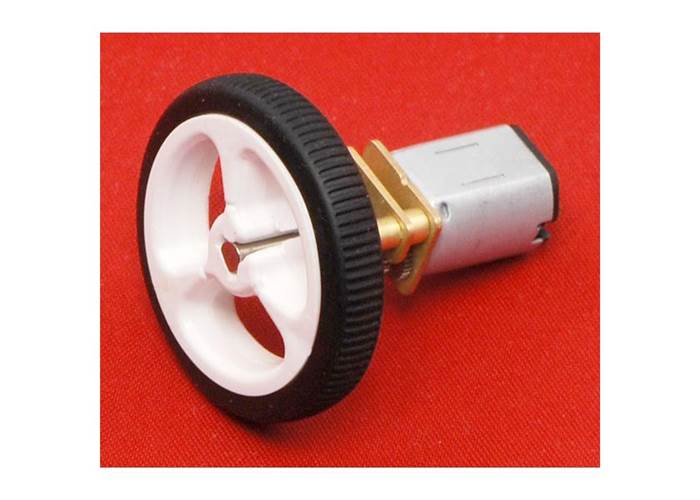

The 3mm diameter output shaft is longer than many other similar motors at 9.3mm and is D shaped to fit many wheels including our 32x7mm and 42x19mm wheels.

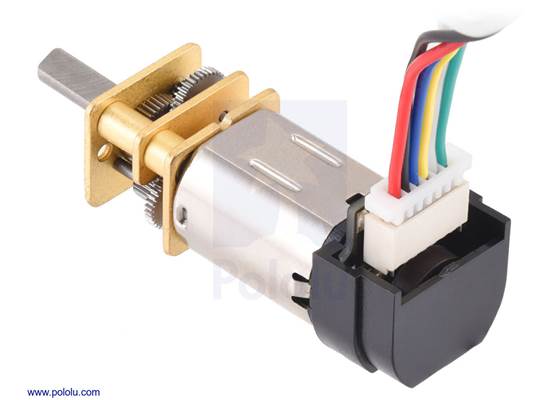

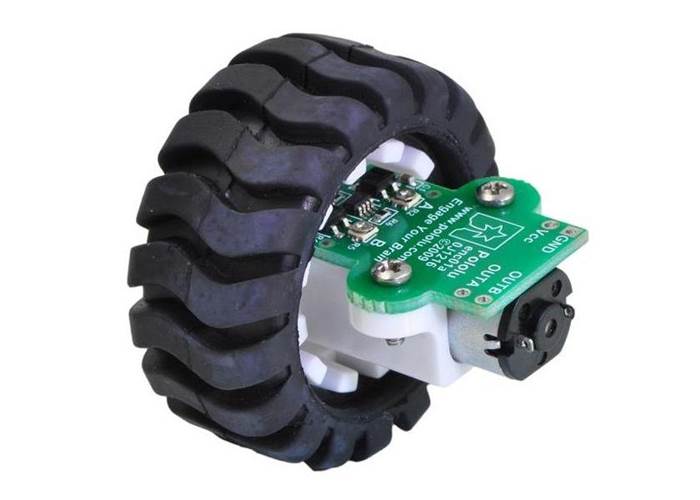

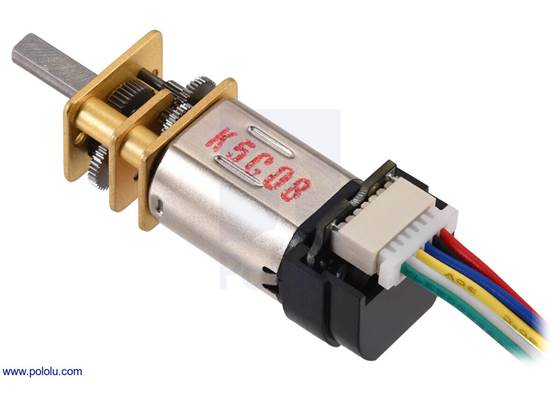

The motor is suitable for use with the Pololu quadrature encoder when teamed with the 42x19mm wheel and extended mounting brackets.

Mounting the Motor

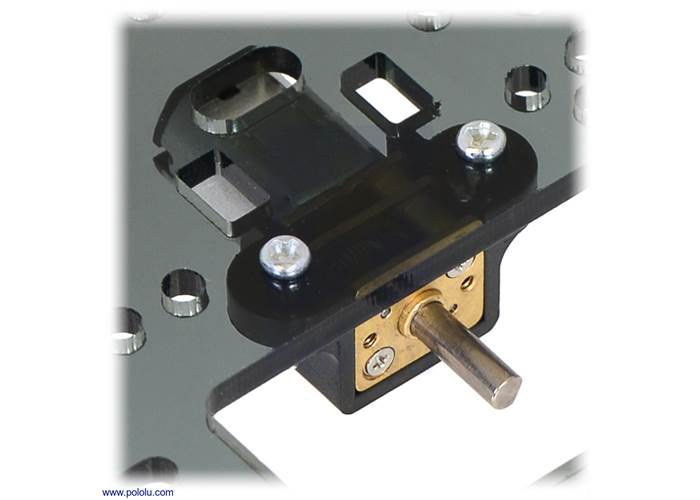

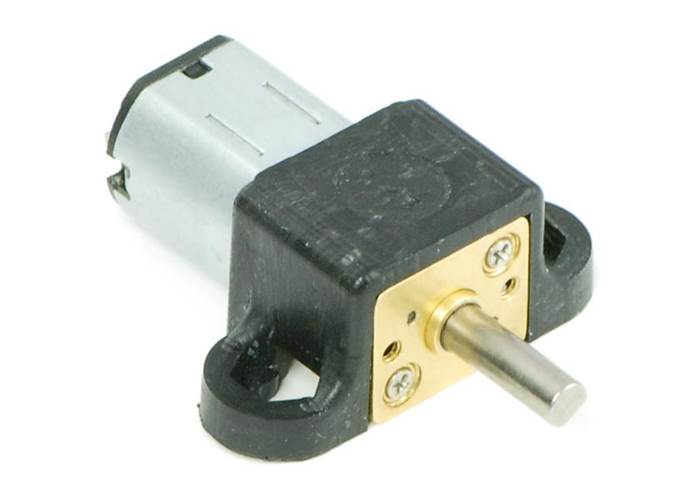

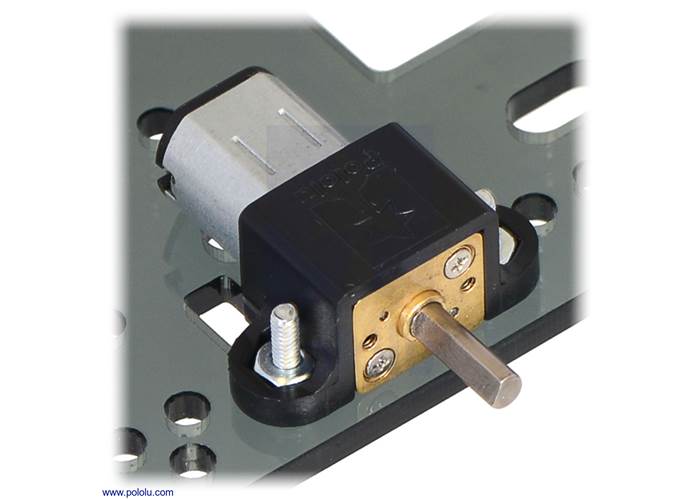

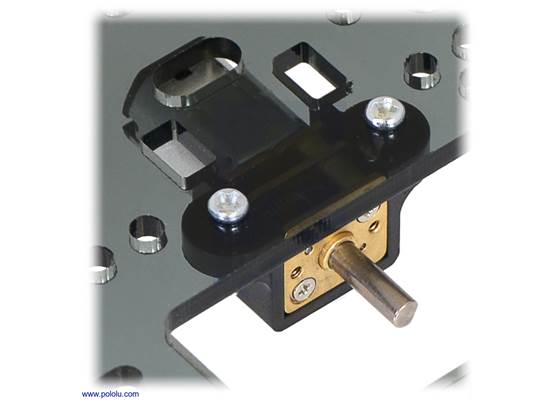

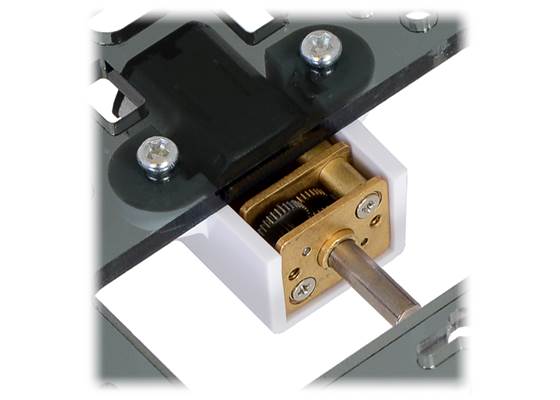

Two M1.6 screw holes are available on the face plate of the motor to mount the motor on the inside of a chassis or alternatively the micro metal gearmotor mounting bracket or extended micro metal gearmotor mounting bracket can be used.


Specifications

Size 24 x 10 x 12 mm
Weight 0.34oz / 9.6g
Gear Ratio 30:1
Shaft 3mm Ø, 9.6mm length, D shaft
Free-run speed @ 6V 1000RPM
Free-run current @6V 120mA
Stall current @6V 1600mA
Stall torque @6V 8oz-in / 0.6kg-cm

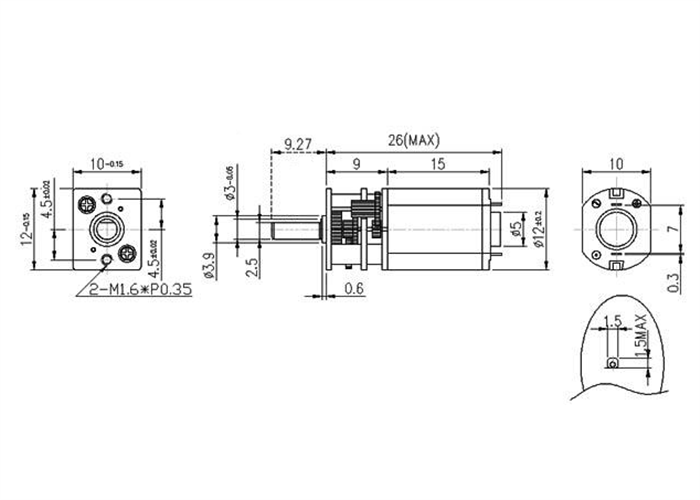

Dimensions

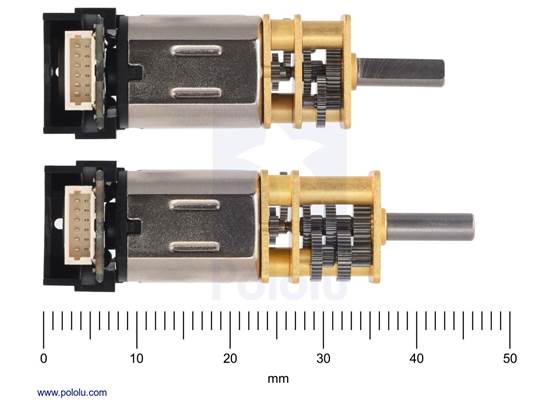

All the micro metal gear motors have the same dimensions but vary in gear ratios and motor power.

Micro metal gear motor dimensions
