Ardumoto - Motor Driver Shield

Get your Arduino running motors with this Motor Driver Shield that supplies 2A per channel and includes LED direction indicators and diode protection for back EMF.

AUD$ 38.95

In stock in Australia

Back orders: 0 Available

Our Code: KIT-70009

Supplier: [SparkFun MPN:DEV-09815]

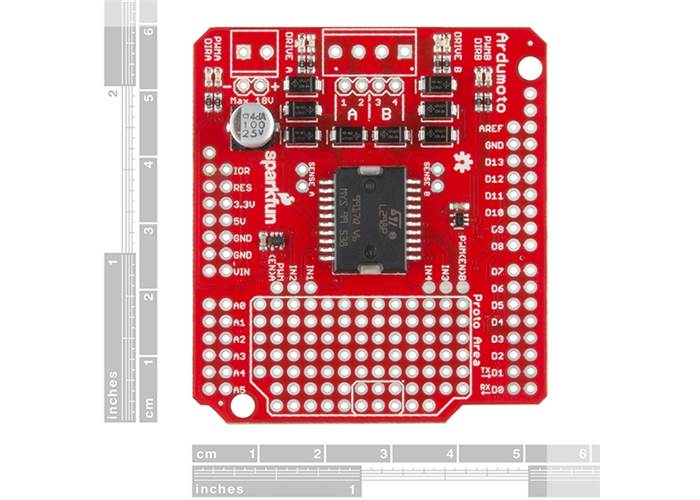

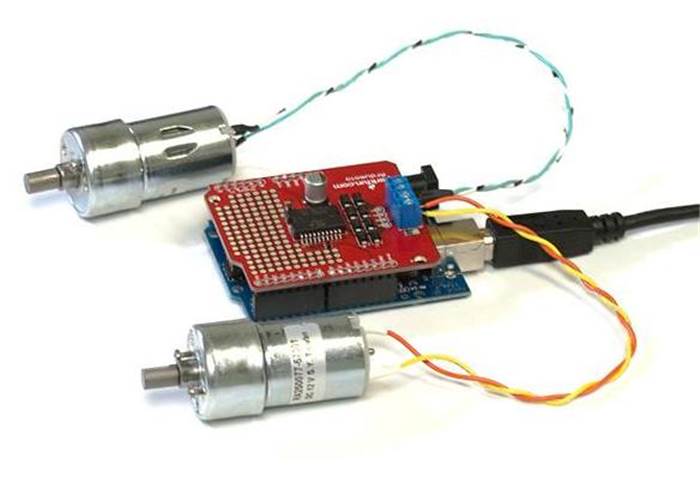

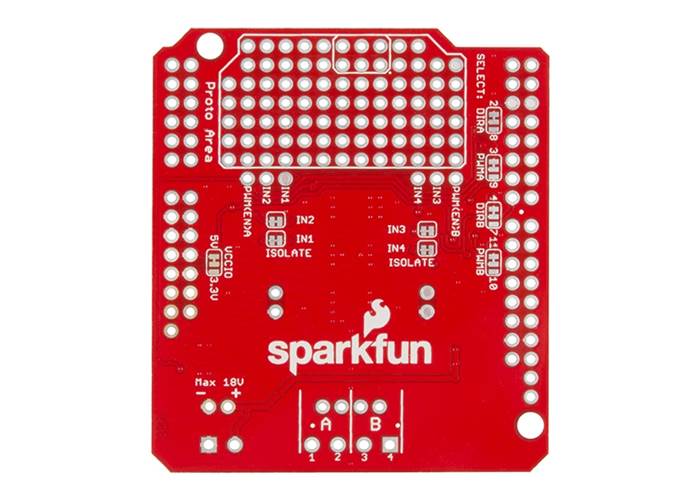

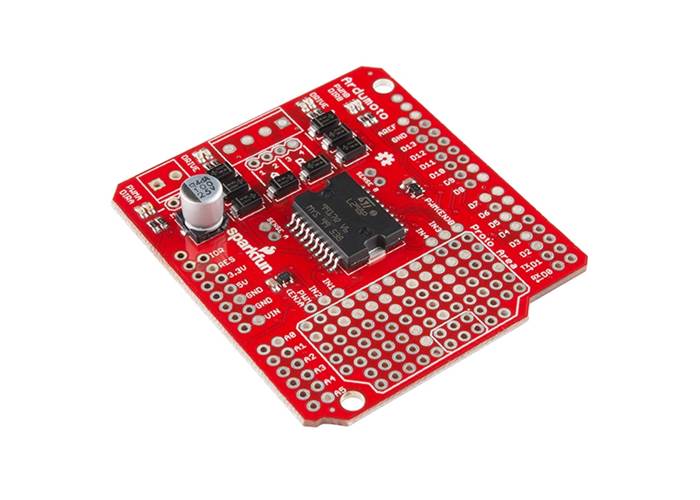

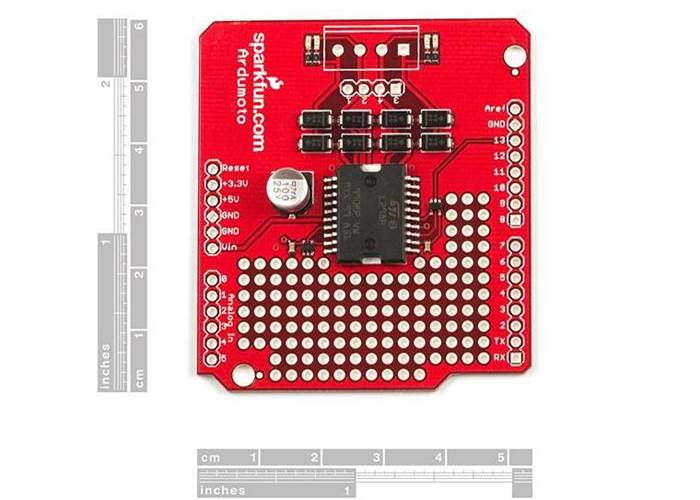

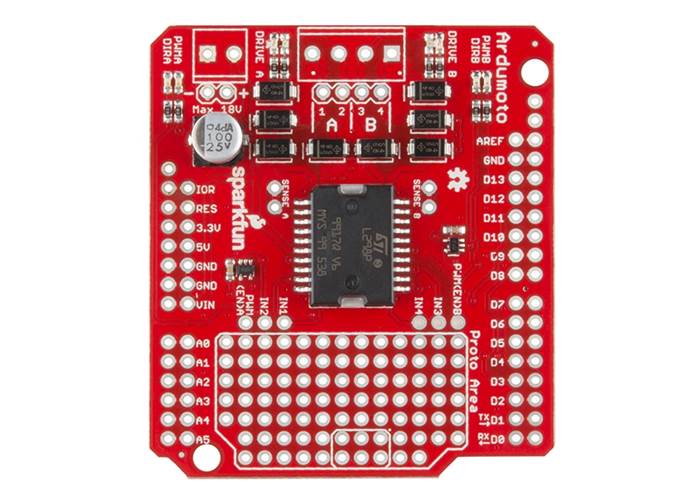

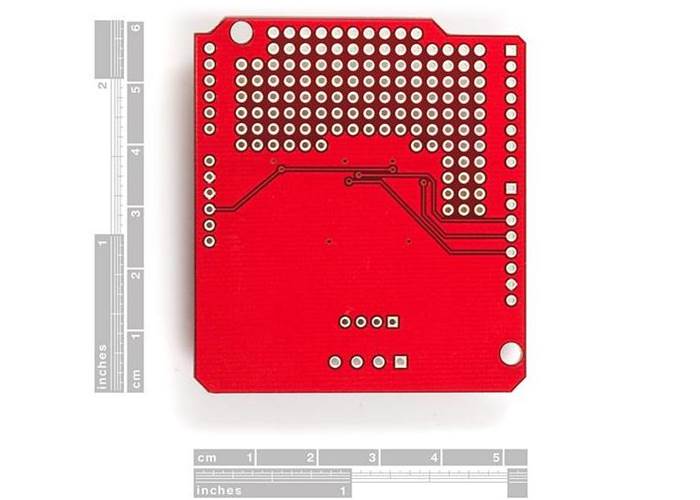

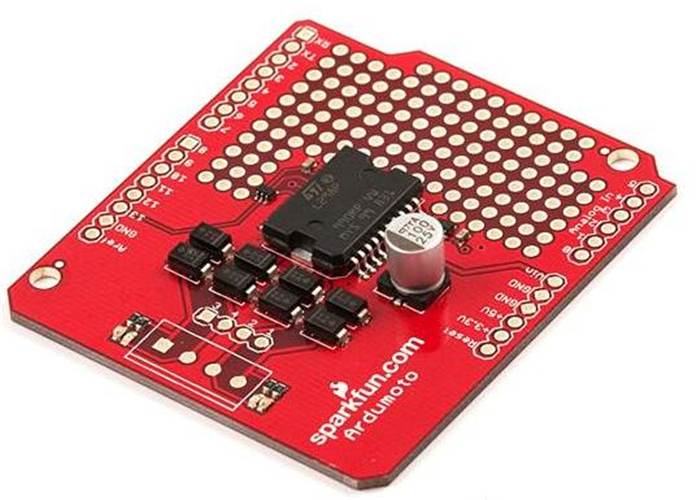

This is a motor shield for Arduino that will control two DC motors. Based on the L298 H-bridge, the Ardumoto can drive up to 2 amps per channel. The board takes its power from the same Vin line as the Arduino board,  includes blue and yellow LEDs to indicate active direction, and all driver lines are diode protected from back EMF.

Control for motor attached to OUT1/2 is connected to digital line 12 (direction A) and digital line 10 (PWM A).

Control for motor attached to OUT3/4 is connected to digital line 13 (direction B) and digital line 11 (PWM B).
