Arduino ProtoShield Kit for Arduino Uno Board

Designed to work with the Arduino Uno and Duemilanove USB Board this prototyping shield provides a small soldering area, two general LED's, access to a BlueSMirF socket, a general pushbutton switch and the Arduino reset switch is brought to the top level. This shield is the perfect way to add build on your Arduino.

AUD$ 14.95

In stock in Australia

Back orders: 0 Available

Our Code: KIT-70006

Supplier: [SparkFun MPN:DEV-13820]


Overview

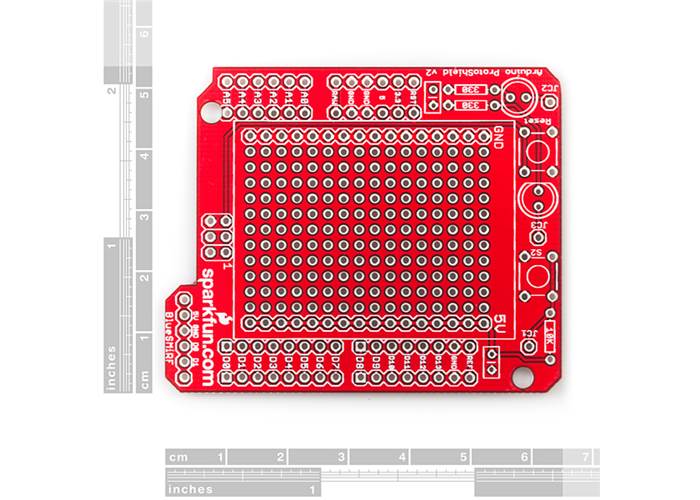

Riding on the waves of the very popular Arduino USB board is this small prototyping shield. Originally spawned with collaboration between the folks at SFE and ITP @ NYU, the ProtoShield mates with the Arduino USB board and gives the user a small soldering area, two general LEDs, access to a BlueSMiRF socket, a general pushbutton switch, and most important of all - the Arduino reset switch is brought to the top level. A ProtoShield quickstart guide is available!

This comes in kit form and must be soldered together by the end user. Please note - we do not ship assembly instructions, but you can find a big, clean photographed assembly guide here! There are a few tutorials on assembly listed below. All soldering is through-hole (relatively easy) but always check your component orientation before soldering!

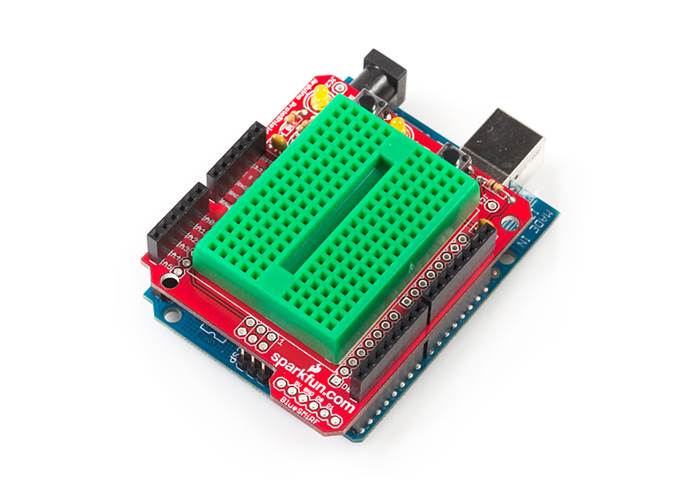

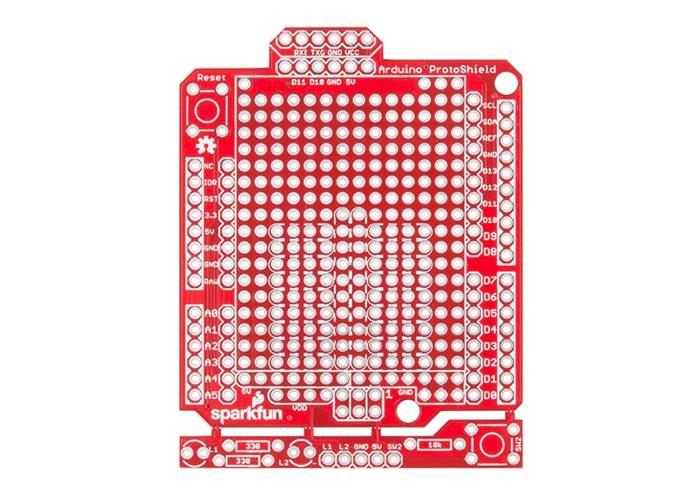

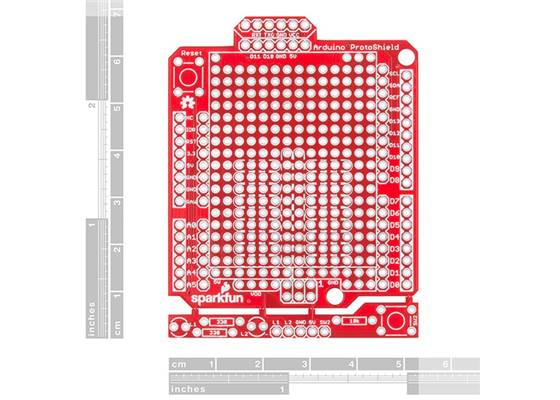

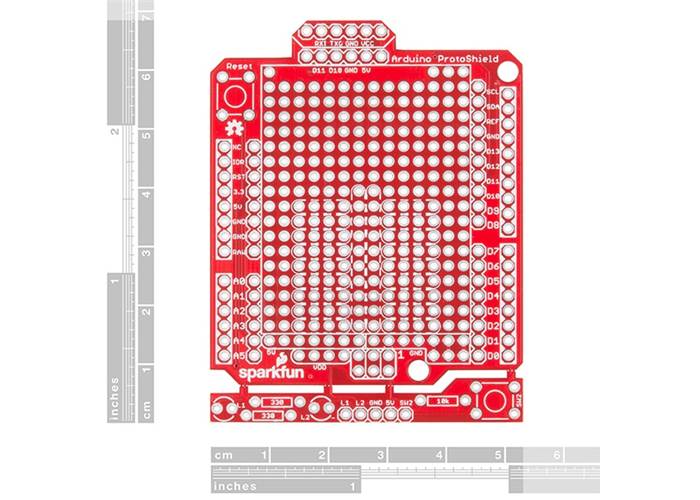

The kit is pictured with the bread-board option. We highly recommend this breadboard! See the related items below for all the colorful options of breadboards you have.

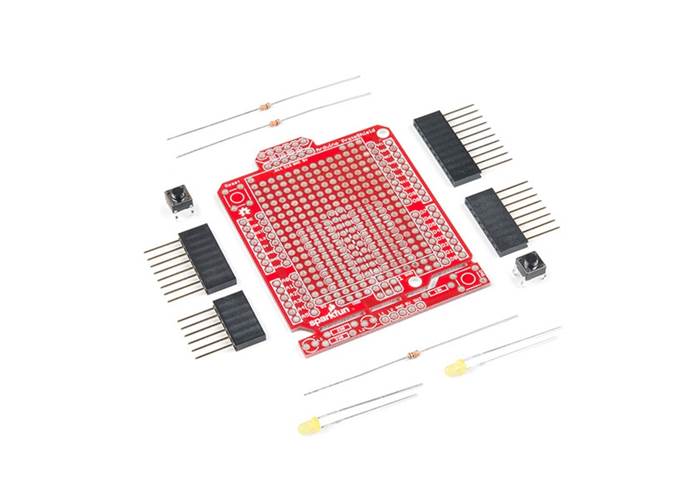

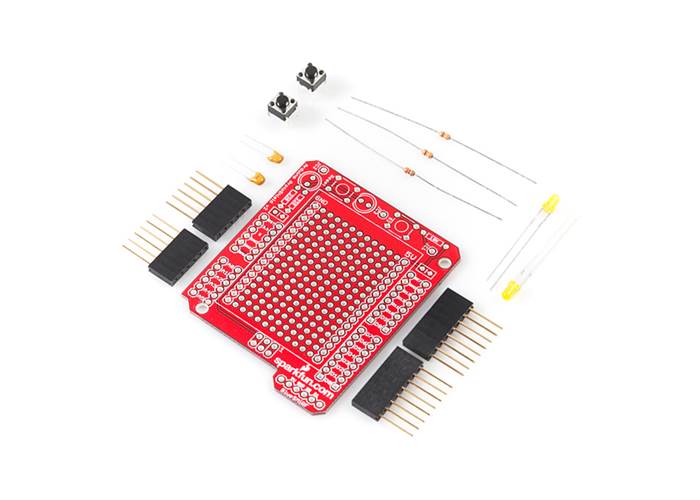

Kit Includes:

  • 1x ProtoShield bare PCB
  • 2x Stackable Headers 6-pin
  • 2x Stackable Headers 8-pin
  • 2x 5mm Basic Yellow LEDs
  • 2x 330 Ohm resistors
  • 1x 10k resistor
  • 2x Momentary push buttons
  • 2x 0.1uF Ceramic Capacitors


Features:

  • All Arduino pins are brought to the top level
  • 5V, GND, and Vin pins are exposed as well
  • BlueSMiRF socket for wireless communication between Arduinos
  • 2 general use LEDs
  • 1 general use button
  • Reset button brought to top level
