This compact bracket enables convenient mounting of popular, Sanyo-style micro metal gearmotors . The white plastic bracket encloses the otherwise exposed gears, and the mounting tabs capture the nuts for easy installation.
In stock in Australia
Shipping from $9.90
+701 more from our supplier in 7-10 days
Our Code: MEC-30011
Supplier Link: [Pololu MPN:1089]

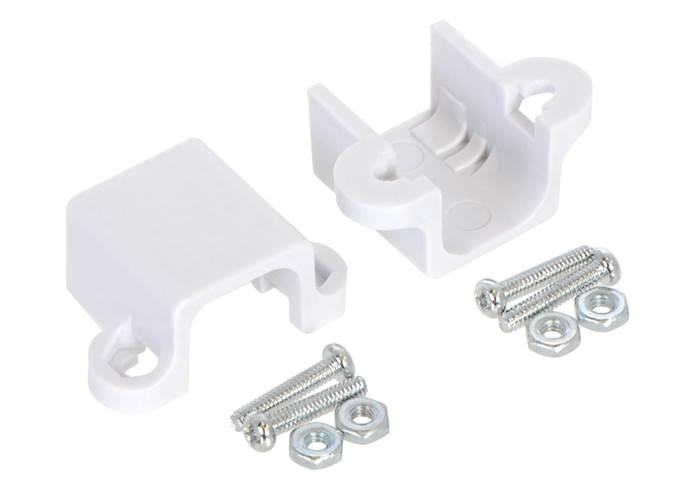

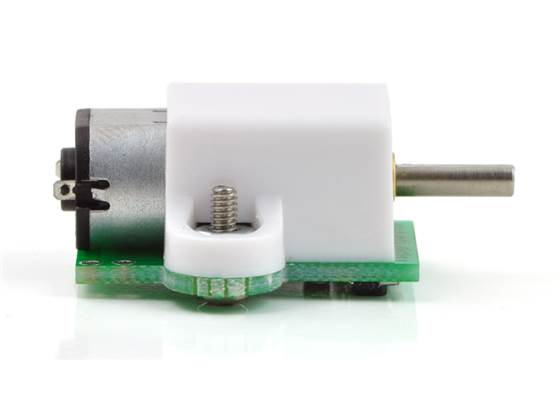

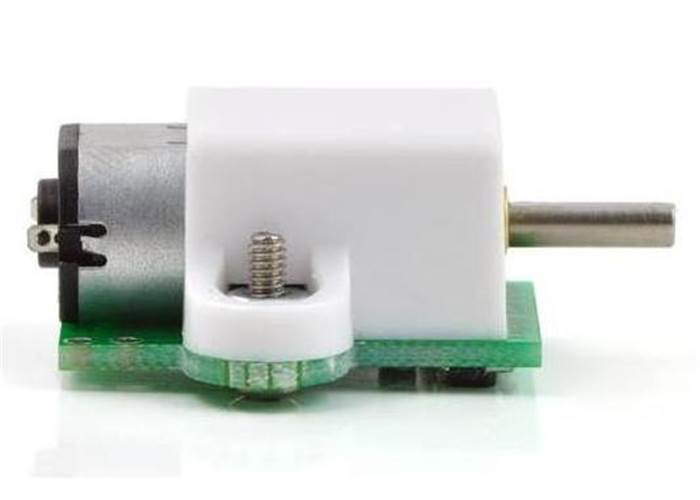

This compact bracket enables convenient mounting of popular, Sanyo-style micro metal gearmotors. The white plastic bracket encloses the otherwise exposed gears, and the mounting tabs capture the nuts for easy installation. This version has mounting tabs that allow for use with the Pololu Wheel 42×19 mm and encoder. The brackets are sold in pairs, and each bracket comes with two #2 screws and two nuts.
These plastic mounting brackets allow you to easily and securely mount the ubiquitous 10 mm × 12 mm × 26 mm metal gearhead motors first popularized by Sanyo’s 12GN series (e.g. NA1S…NA3S), such as our micro metal gearmotors. We also offer shorter versions of these brackets in black plastic and white plastic.

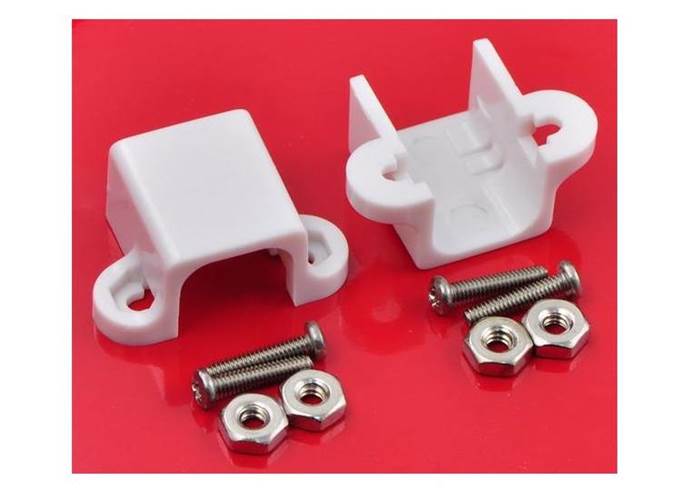

Four #2-56×7/16" screws and four nuts are included.

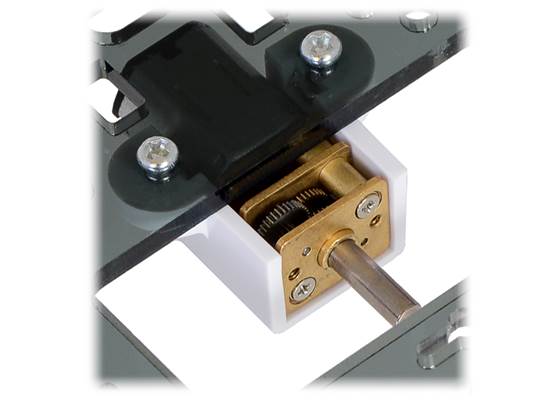

Pololu micro metal gearmotor bracket extended with Micro Metal Gearmotor. |

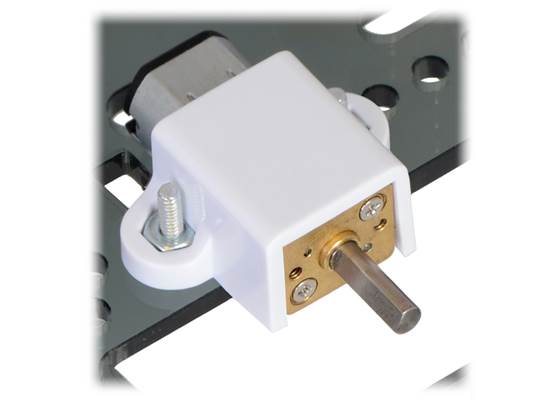

Pololu micro metal gearmotor bracket extended with Micro Metal Gearmotor. (1) |

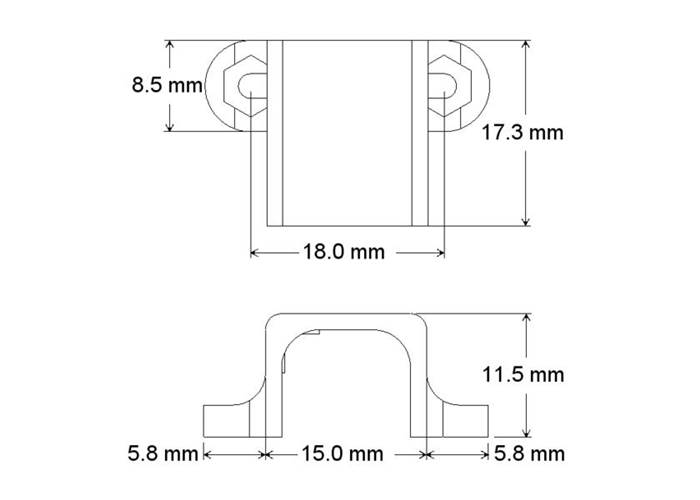

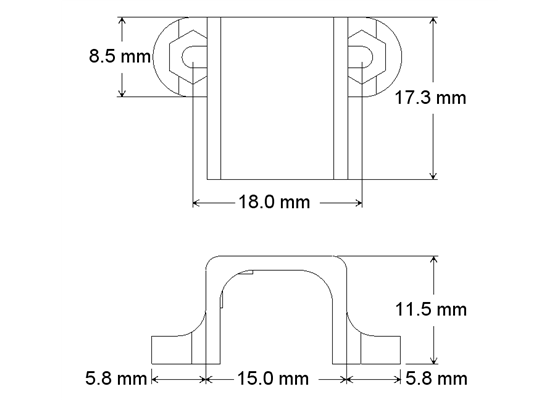

Diagram with dimensions of the Pololu micro metal gearmotor bracket extended. |

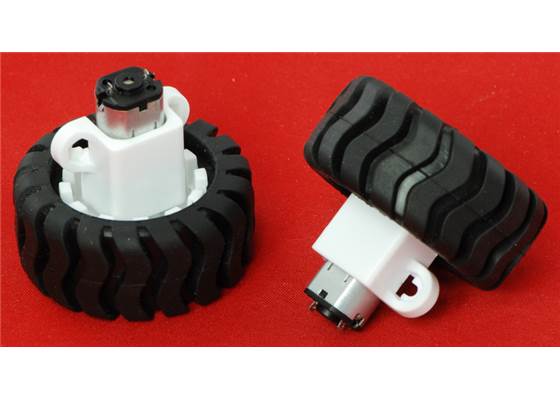

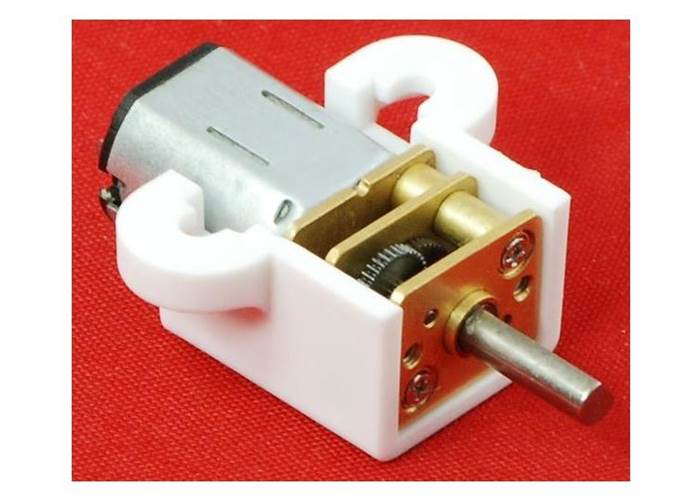

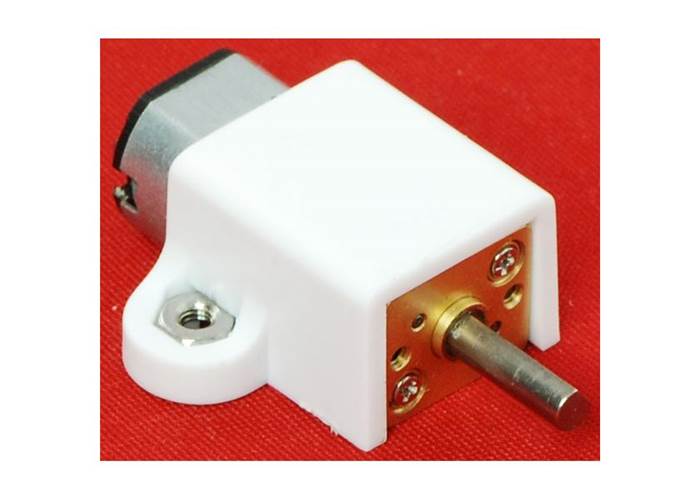

This extended version of the bracket is designed to allow a portion of the motor to fit within the hub of a larger wheel, such as our Pololu Wheel 42×19mm.

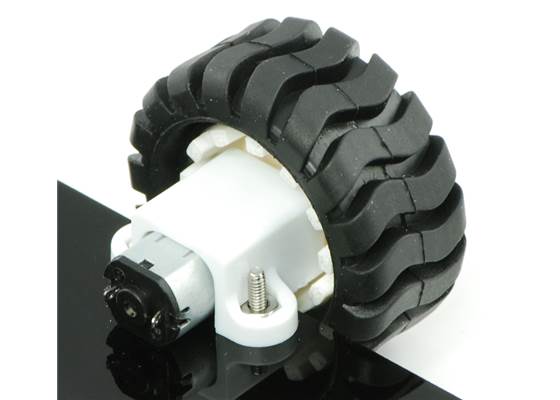

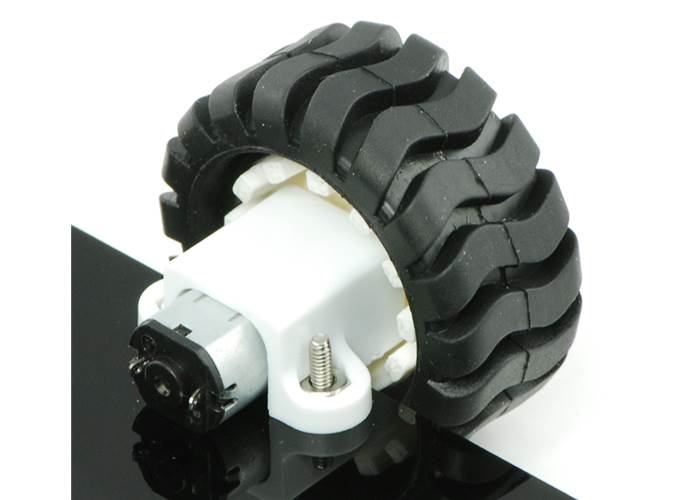

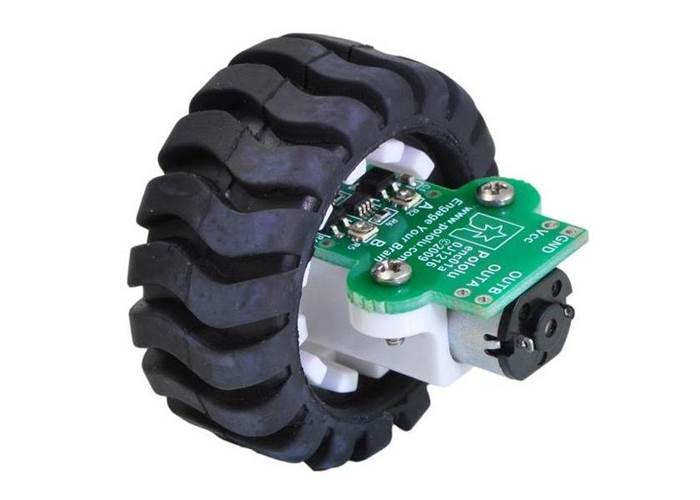

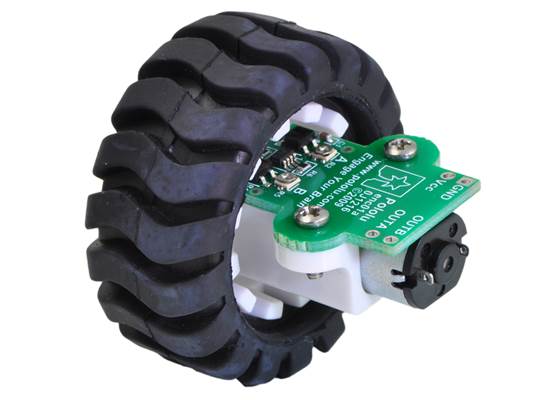

Micro Metal Gearmotor and Pololu wheel 42×19mm mounted with extended mounting bracket.
Note: This bracket also works with the 1000:1 micro metal gearmotors, but because of its longer gearbox, it does not fully enclose the exposed gears the way it does on the other micro metal gearmotors.
3D model of a Micro Metal Gearmotor and a #1089 bracket.
3D model of a Micro Metal Gearmotor with Extended Motor Shaft and a #1089 bracket.
