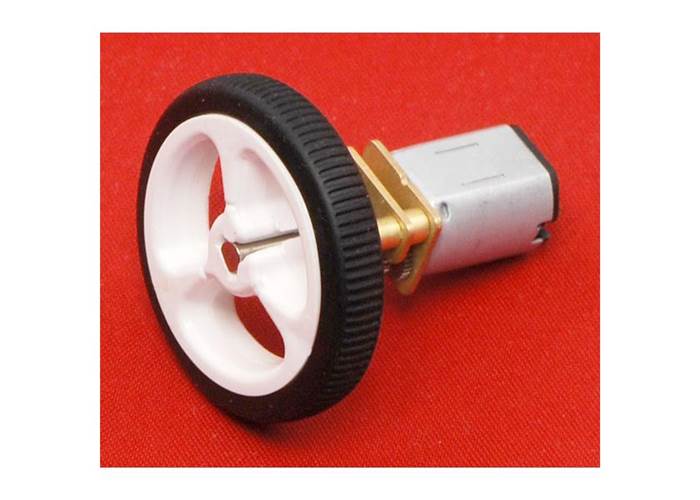

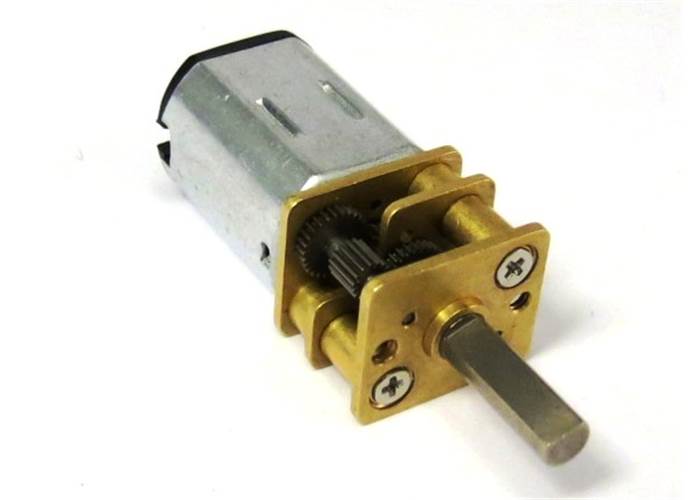

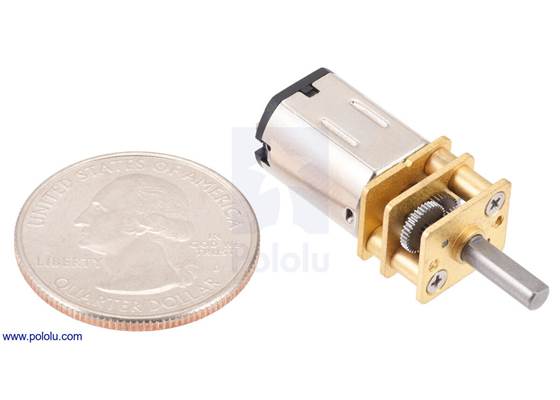

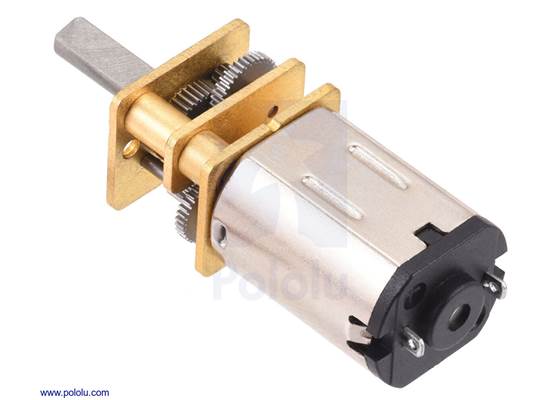

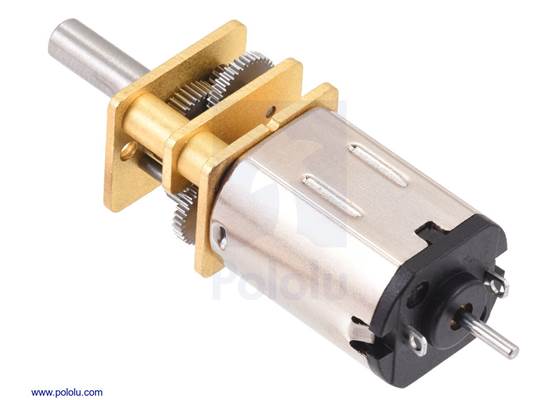

This high quality, high power miniature 6V gear motor has a 298:1 gear ratio and is similar to Sanyo's popular 12mm gearmotors. The 3mm D-shaped output shaft is 9.3mm long to enable press fitting to many different wheels. At 6V the motor operates at 100RPM, 70mA free-run, 90 oz-in (6.5kg-cm) torque and 1.6A stall.
In stock in Australia
Our Code: MEC-30012
Designed for operation at 6V the motor is suitable over a range of about 3-9V beyond which the performance or motor life may degrade.
The high power motor produces a shaft speed of 100RPM and draws 70mA at free-run and 1.6A at stall at 6V. The maximum torque is 90oz-in (6.5kg-cm).

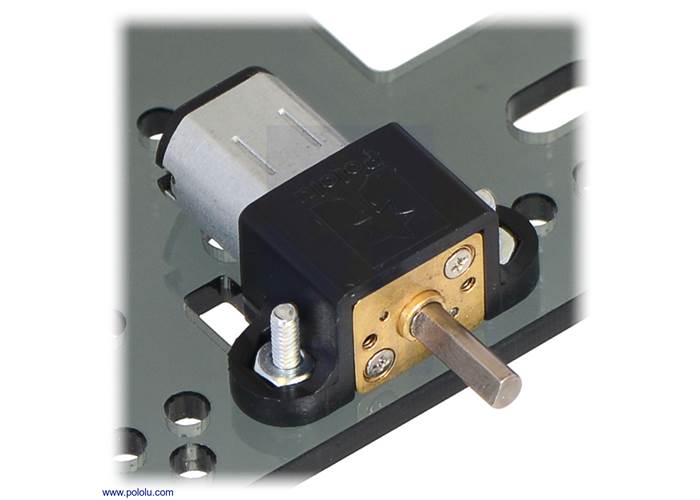

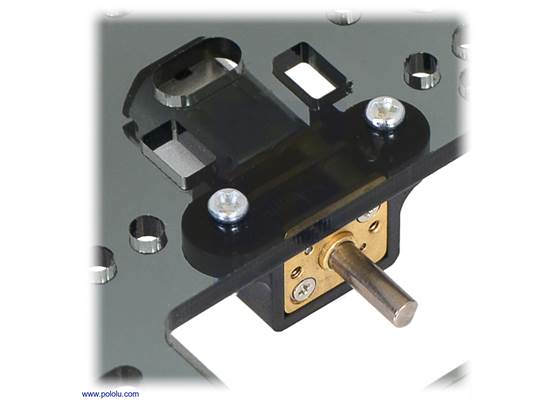

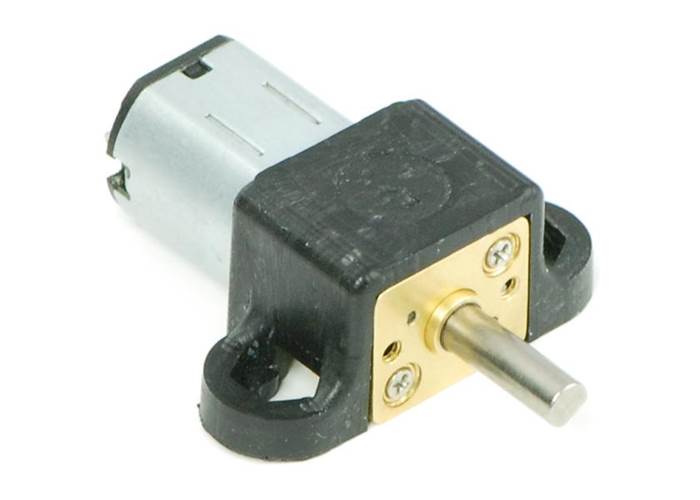

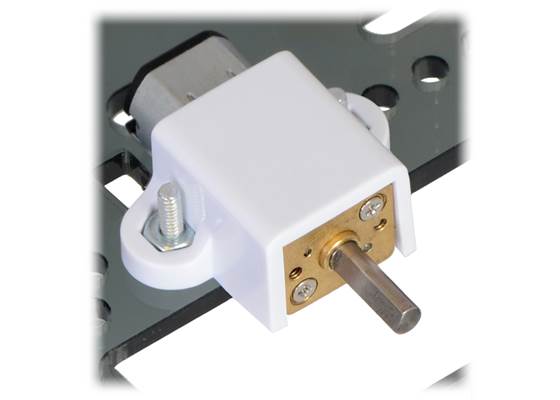

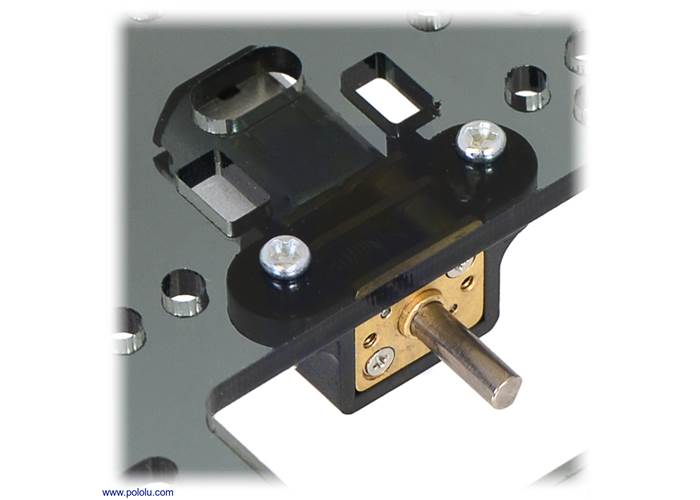

Two M1.6 screw holes are available on the face plate of the motor to mount the motor on the inside of a chassis or alternatively the micro metal gearmotor mounting bracket or extended micro metal gearmotor mounting bracket can be used.

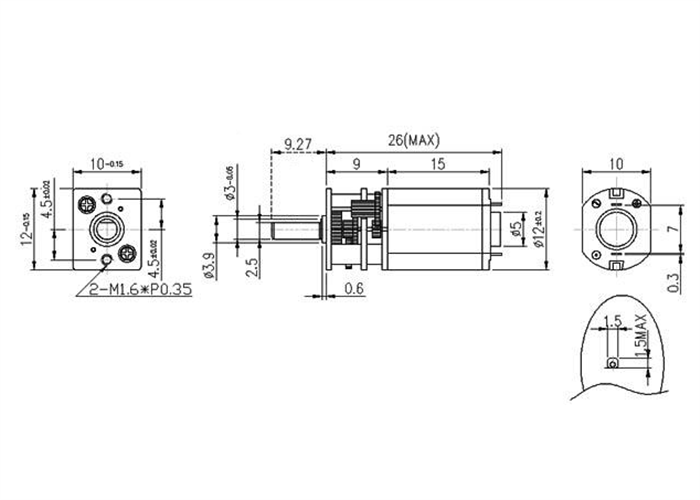

|Size||24 x 10 x 12 mm|
|Weight||0.34oz / 9.6g|
|Shaft||3mm Ø, 9.6mm length, D shaft|
|Free-run speed @ 6V||100RPM|
|Free-run current @6V||70mA|
|Stall current @6V||1600mA|
|Stall torque @6V||90oz-in / 6.5kg-cm|

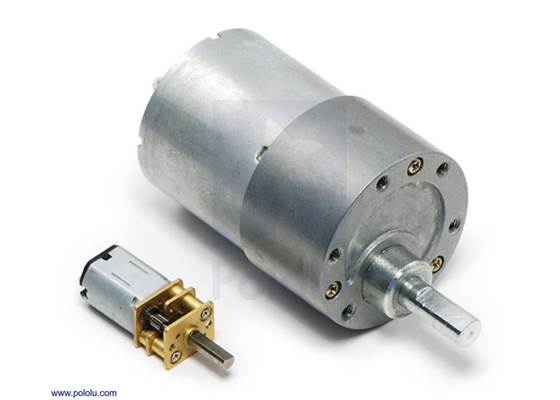

All the micro metal gear motors have the same dimensions but vary in gear ratios and motor power.
