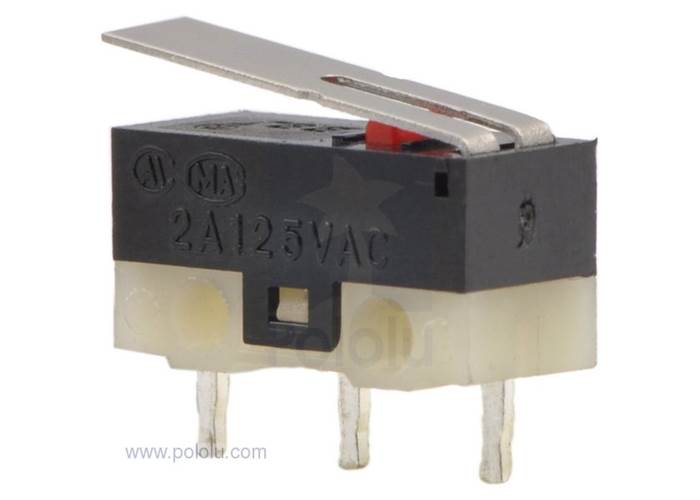

Switch SPDT Mini Snap Action with 13.5mm Lever

This miniature single-pole, double-throw (SPDT) switch can be used as a general-purpose micro switch or as a small tactile bump sensor for your robot. The switch body dimension is 12.8 x 6.0 x 6.5 mm, and the lever arm is 13.5 mm long.

AUD$ 1.65

In stock in Australia

No Stock Available

Our Code: SEN-10025

Supplier Link: [Pololu MPN:1401]


Overview

This miniature single-pole, double-throw (SPDT) switch can be used as a general-purpose micro switch or as a small tactile bump sensor for your robot. The switch body dimension is 12.8 x 6.0 x 6.5 mm (0.50" x 0.24" x 0.26"), and the lever arm is 13.5 mm (0.53") long. This three-pin switch can also be used as a two-pin single-pole, single-throw (SPST) switch that is open or closed by default, depending on which two pins are used.

Rated at 2A-125VAC

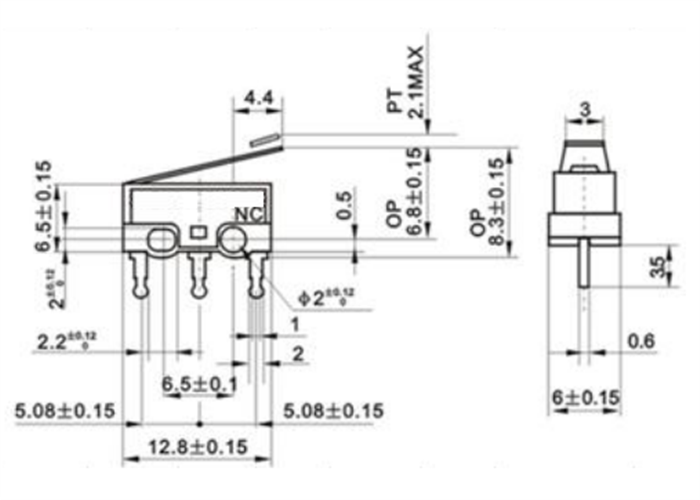

Dimensions (in mm) of mini snap-action switch with 13.5mm lever: 3-pin, SPDT, 2A.
