This single-pole, double-throw (SPDT) momentary switch can be used as a general-purpose micro switch or tactile bump sensor for your robot. The switch body dimension is 20.0 x 6.4 x 10.2 mm, and the lever arm is 16.7 mm long.
In stock in Australia
Shipping from $9.90
+614 more from our supplier in 7-10 days
Our Code: SEN-10023
Supplier Link: [Pololu MPN:1402]
This single-pole, double-throw (SPDT) momentary switch can be used as a general-purpose micro switch or tactile bump sensor for your robot. The switch body dimension is 20.0 x 6.4 x 10.2 mm, and the lever arm is 16.7 mm long.

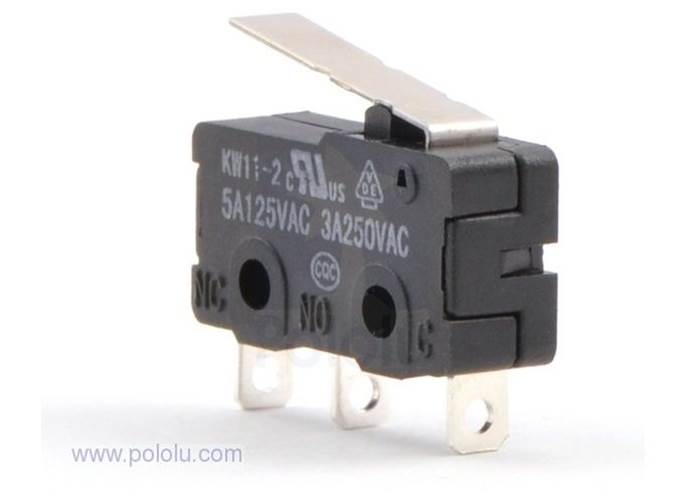

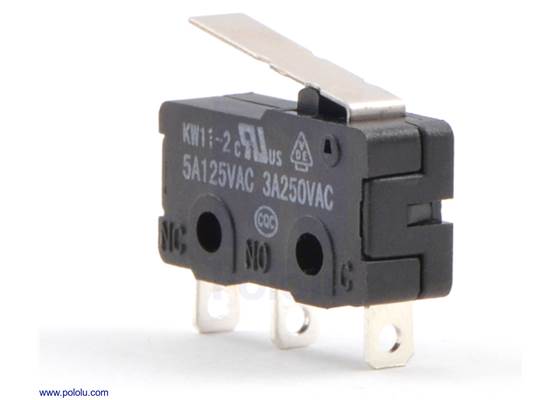

This single-pole, double-throw (SPDT) momentary switch can be used as a general-purpose micro switch or tactile obstacle-detector for your robot. The switch body dimension is 20.0 x 6.4 x 10.2 mm (0.79" x 0.25" x 0.40"), and the lever arm is 16.7 mm (0.66") long. This three-pin switch can also be used as a two-pin single-pole, single-throw (SPST) switch that is open or closed by default, depending on which two pins are used. The maximum operating force is 0.9 N, or approximately 90 gf (3 oz).
 |

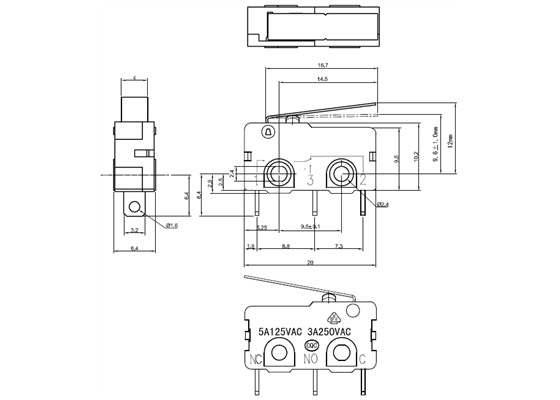

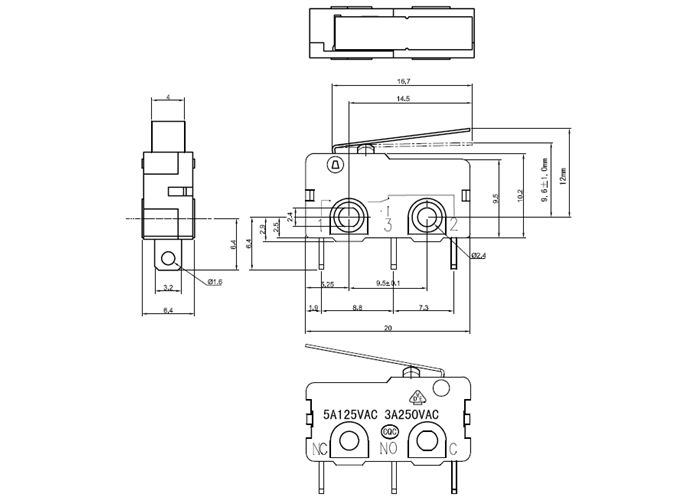

Dimensions (in mm) of snap-action switch with 16.7mm lever: 3-pin, SPDT, 5A. |
|---|
For a more sophisticated tactile sensor, see our force-sensing resistors.
