This miniature single-pole, double-throw (SPDT) momentary switch can be used as a general-purpose micro switch or as a small tactile bump sensor for your robot. The switch body dimension is 12.8 × 6.0 × 6.5 mm, and the lever arm is 13.5 mm long.
In stock in Australia
Shipping from $7.90
+1182 more from our supplier in 7-10 days
Our Code: SKU-005210
Supplier Link: [Pololu MPN:1528]
This miniature single-pole, double-throw (SPDT) momentary switch can be used as a general-purpose micro switch or as a small tactile bump sensor for your robot. The switch body dimension is 12.8 × 6.0 × 6.5 mm (0.50″ × 0.24″ × 0.26″), and the lever arm is 13.5 mm (0.53″) long. This three-pin switch can also be used as a two-pin single-pole, single-throw (SPST) switch that is open or closed by default, depending on which two pins are used.

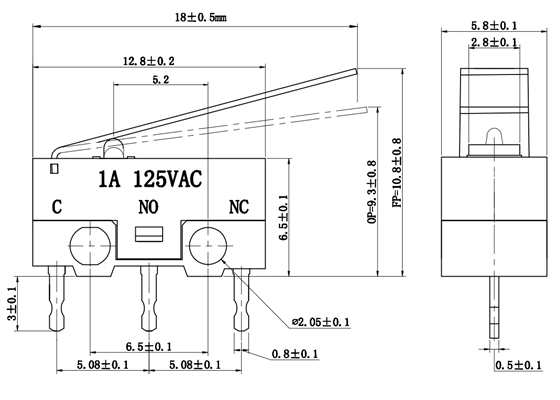

Dimensions (in mm) of mini snap-action switch with 13.5mm lever.
For a more sophisticated tactile sensor, see our force-sensing resistors.
| Size: | 12.8 × 5.8 × 6.5 mm |
|---|---|
| Weight: | 0.6 g |
