This simple board serves as an adaptor between a JST SH-style 6-pin male connector and breadboard-compatible 0.1″-pitch through holes.
Special Order
Shipping from $2.90
+308 more from our supplier in 7-10 days
Our Code: SKU-006899
Supplier Link: [Pololu MPN:4770]

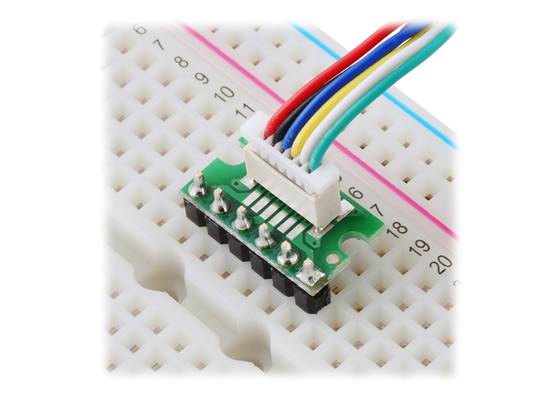

This is a breakout board for a 6-pin male JST SH-type connector that provides access to each pin on a row of 0.1″-pitch through holes, making it compatible with standard solderless breadboards. The through-holes work with standard 0.1″ (2.54 mm) male headers and 0.1″ female headers, which are available separately.

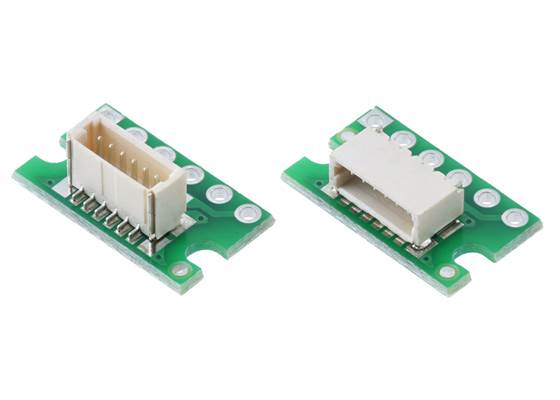

Top-Entry and Side-Entry Breakout Boards for JST SH-Style Connectors, 6-Pin Male. |

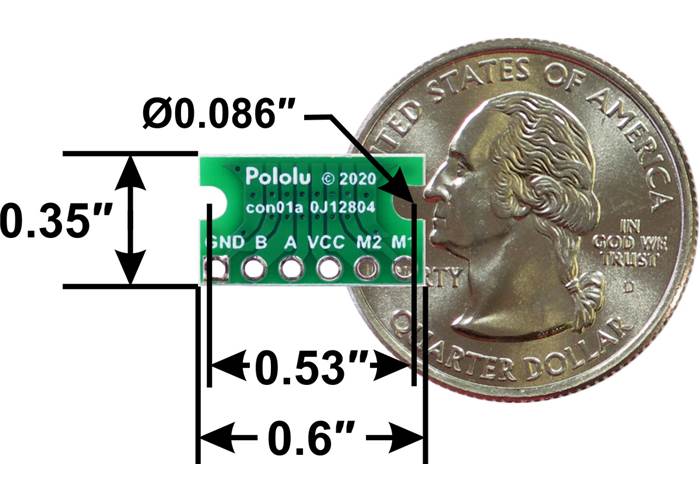

Breakout for JST SH-Style Connector, 6-Pin Male (Top-Entry or Side-Entry), bottom view with dimensions. |

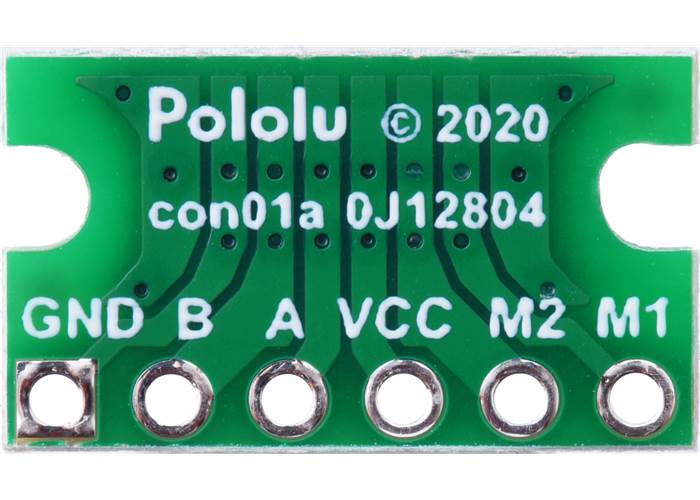

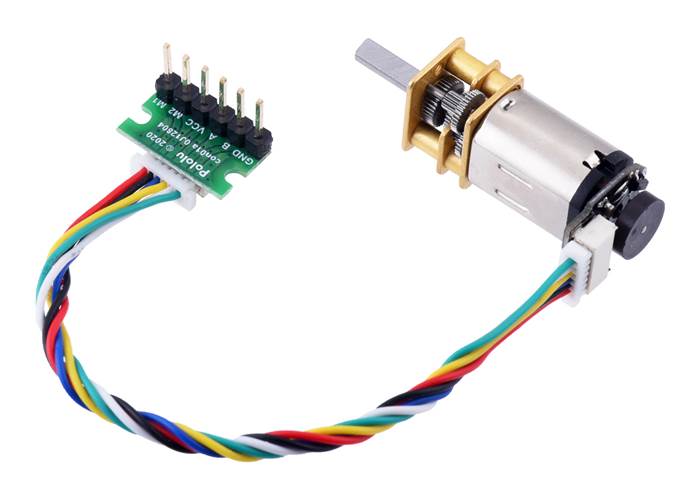

This board can be used with our Micro Metal Gearmotor Encoder with top-entry connector or with side-entry connector, along with a female-female JST SH-style cable (available in 10 cm, 16 cm, 25 cm, 40 cm, and 63 cm lengths). When used this way, the breakout provides convenient access to the motor and encoder pins on a breadboard, and the pins are labelled on the board’s bottom silkscreen with this application in mind.
Top-Entry and Side-Entry Breakout Boards for JST SH-Style Connectors, 6-Pin Male. (1) |

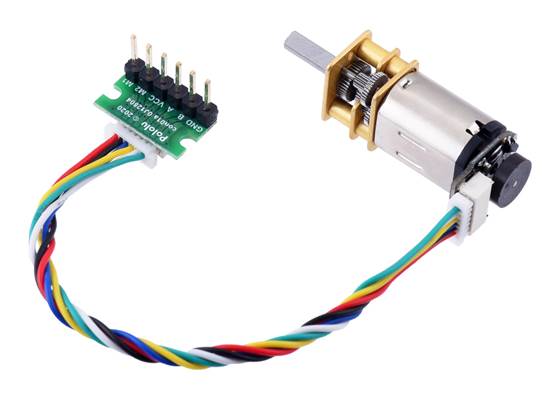

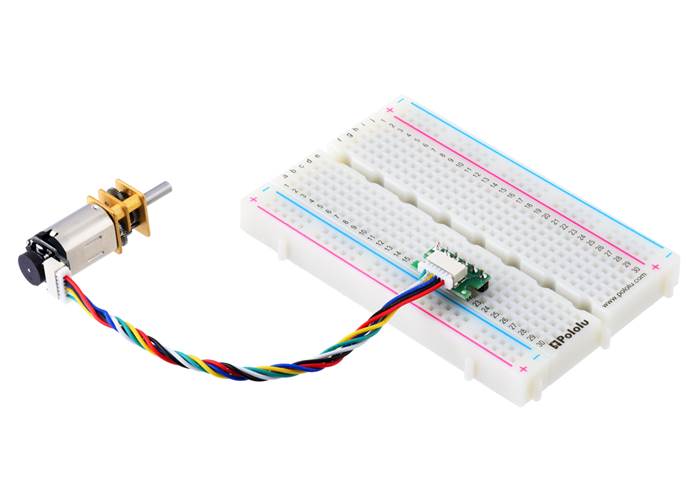

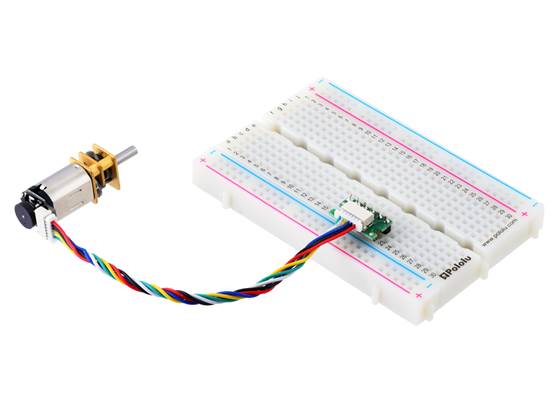

Side-entry JST SH-style connector breakout board in a breadboard, female-female cable, and encoder with connector mounted on a Micro Metal Gearmotor. |
Alternatively, this board can serve as a general-purpose breakout for other applications; for example, a pair of connector breakouts with a female-female cable could be used as a removable general-purpose interconnect between different parts of a modular system.
This item is a single individually-packaged board with a top-entry connector that is fully tested. Alternatively, you can get a 3-pack of boards with top-entry connectors that have not been electrically tested and are offered at a discounted price to reflect this.

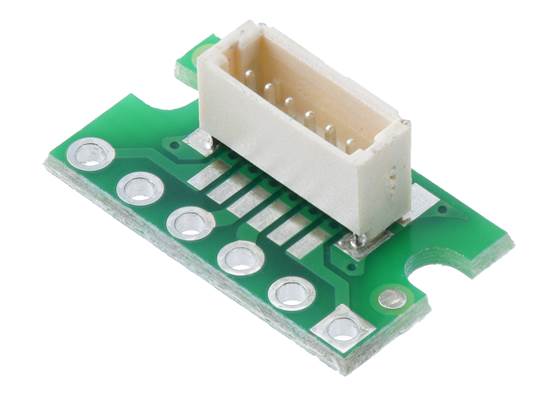

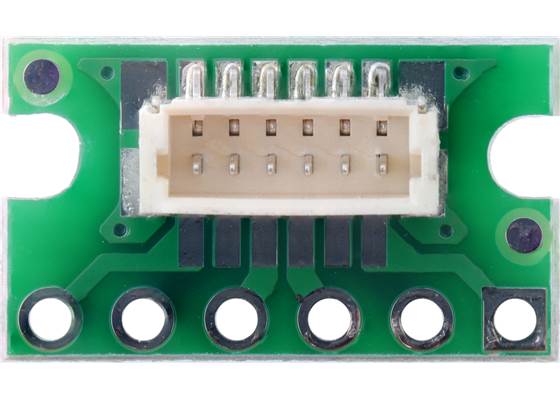

Breakout for JST SH-Style Connector, 6-Pin Male Top-Entry, top view. |

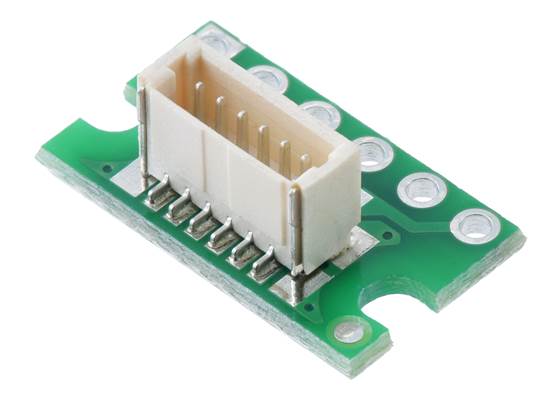

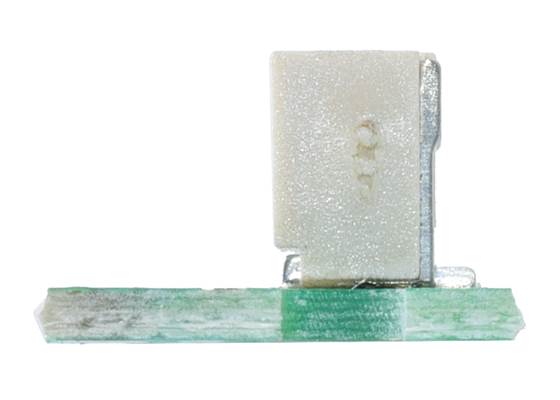

Breakout for JST SH-Style Connector, 6-Pin Male Top-Entry, profile view. |
Standard packaging for the Breakout for JST SH-Style Connector, 6-Pin Male Top-Entry (Individually Packaged). |
We also offer a version with a side-entry connector, either individually packaged or in a 3-pack and untested.
We have a variety of cables that work with this breakout board.
Twisted female-female cables with female JST SH-style connectors on both ends are available in five lengths:
 |
Single-ended cables, with a female JST SH-style connector on one end and unterminated wires on the other end, are available in three cable lengths:
 |

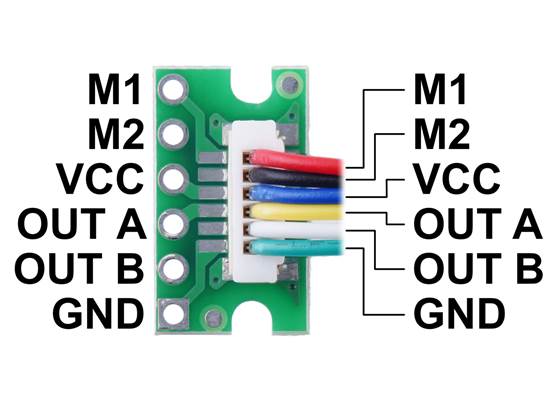

When used with our encoders and JST SH-style cables, the wire colour scheme is as follows:
 |
| Colour | Function |
|---|---|
| Red | motor power (connects to one motor terminal) |
| Black | motor power (connects to the other motor terminal) |
| Blue | encoder Vcc |
| Yellow | encoder A output |
| White | encoder B output |
| Green | encoder GND |
For more information on how to use the encoders, see the encoder product pages.
| Size: | 0.6″ × 0.35″ × 0.21″ |
|---|---|
| Weight: | 0.5 g |
| Connector: | top-entry, 6-pin male, JST SH-type |
|---|
| PCB dev codes: | con01a |
|---|---|
| Other PCB markings: | 0J12804 |
This file contains dimension diagrams for the Breakout for JST SH-Style Connector, 6-Pin Male Top-Entry and the Breakout for JST SH-Style Connector, 6-Pin Male Side-Entry.
This file contains 3D models (in the step file format) of the Breakout for JST SH-Style Connector, 6-Pin Male Top-Entry and the Breakout for JST SH-Style Connector, 6-Pin Male Side-Entry.
These DXF drawings show the locations of all of the holes on the Breakout for JST SH-Style Connector, 6-Pin Male Top-Entry and the Breakout for JST SH-Style Connector, 6-Pin Male Side-Entry.
