This 10 cm (4″) cable has six 28 AWG wires and 6-pin female JST SH-type connectors on both ends . These connectors work with the encoders on our Micro Metal Gearmotors and with our 6-pin JST SH-style connector breakout boards .
In stock in Australia
Shipping from $2.90
+300 more from our supplier in 7-10 days
Our Code: SKU-007311
Supplier Link: [Pololu MPN:4765]

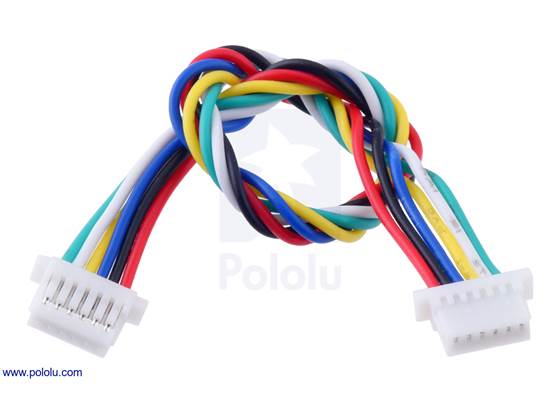

This 10 cm (4″) cable has six 28 AWG wires and 6-pin female JST SH-type connectors on both ends. These connectors work with the encoders on our Micro Metal Gearmotors and with our 6-pin JST SH-style connector breakout boards.
Note: We also have a version of this cable with the wires in a standard color order (e.g. with the black wire on pin 1) rather than color-coded specifically for Micro Metal Gearmotor encoders.
This cable is designed to work with the encoders on our Micro Metal Gearmotors, which are also available separately with top-entry connector and with side-entry connector. It consists of six twisted 28 AWG colour-coded wires that are terminated on both ends by female JST SH-type connectors.

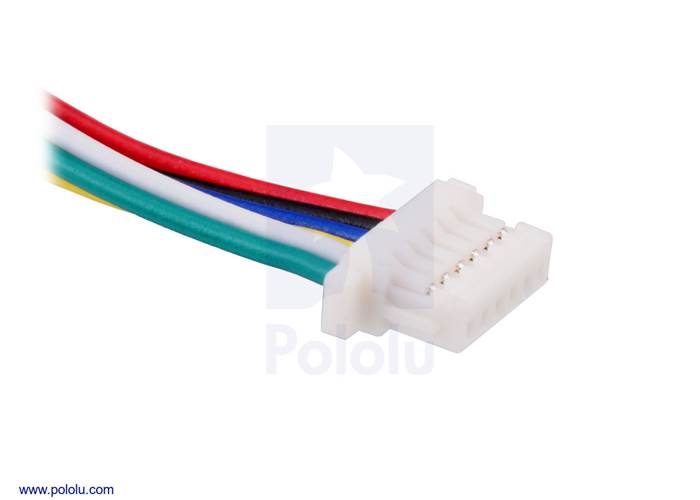

6-Pin female JST SH-style connector. |

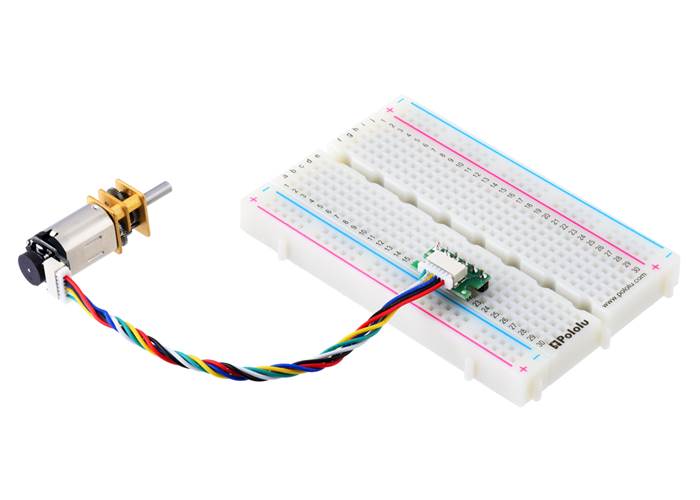

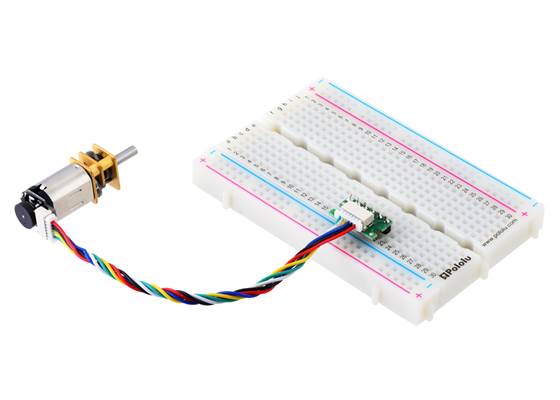

Side-entry JST SH-style connector breakout board in a breadboard, female-female cable, and encoder with connector mounted on a Micro Metal Gearmotor. |

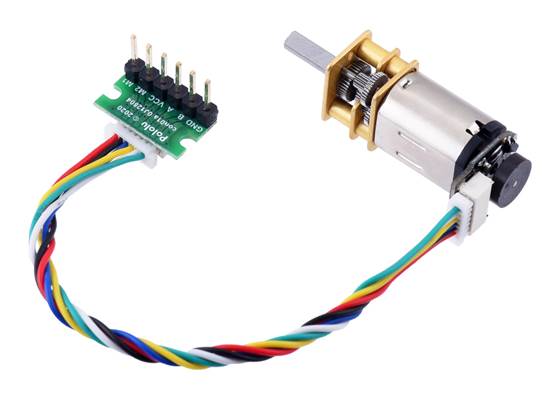

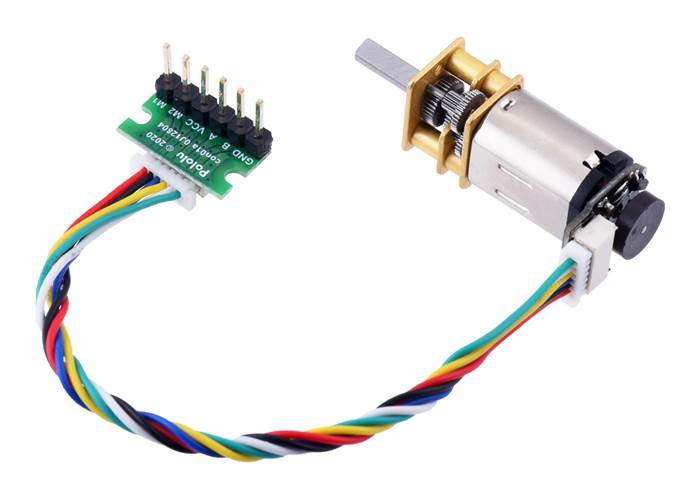

You can use the cable to connect an encoder to our JST SH-style connector breakout board (available in top-entry and side-entry versions), allowing you to easily access the motor and encoder pins on a standard solderless breadboard. Alternatively, a cable with two connector breakout boards could serve as a removable general-purpose interconnect between different parts of a modular system.
|

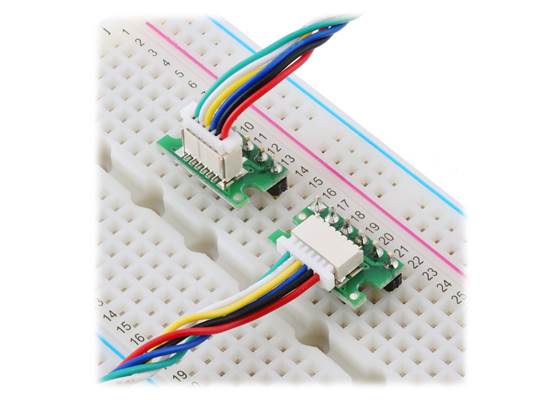

Top-Entry and Side-Entry Breakout Boards for JST SH-Style Connectors, 6-Pin Male. |
When used with our encoders, the wire colour scheme is as follows:
| Cable colour | Function |
|---|---|
| Red | motor power M1 (“+” terminal) |
| Black | motor power M2 (other terminal) |
| Blue | encoder Vcc (2.7 V to 18 V) |
| Yellow | encoder channel A output |
| White | encoder channel B output |
| Green | encoder GND |
|
|
For more information on how to use the encoders, see the encoder product pages.

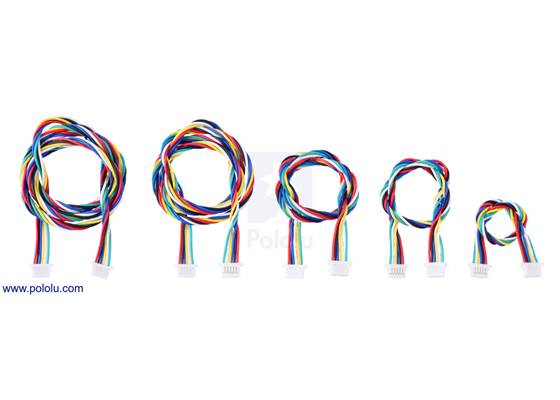

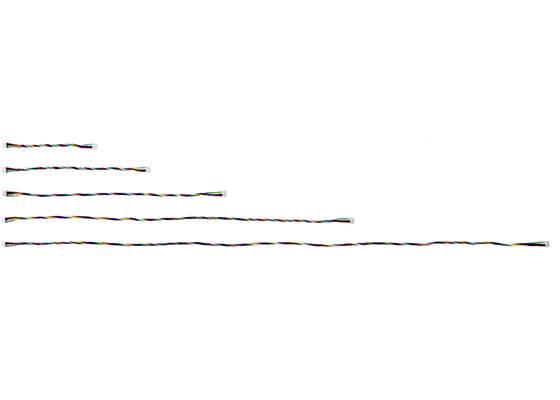

These cables are available in double-ended and single-ended versions in a variety of lengths:
| Pins | Terminations | Length | Item # | Price | |
|---|---|---|---|---|---|
| 6 | double-sided (female-female) |
10 cm (4″) | #4765 | $3.32 | |
| 16 cm (6.3″) | #4766 | $3.61 | |||
| 25 cm (10″) | #4767 | $4.06 | |||
| 40 cm (16″) | #4768 | $4.81 | |||
| 63 cm (25″) | #4769 | $5.95 | |||
| single-sided (female-unterminated) |
12 cm (4.5″) | #4762 | $2.10 | ||
| 30 cm (12″) | #4763 | $3.00 | |||
| 75 cm (30″) | #4764 | $5.23 | |||
We also have an assortment of 6-pin JST SH-style cables with a standard colour order (e.g. with the black wire on pin 1).
| Pins: | 1×6 |
|---|---|
| Pitch: | 1 mm |
| Length: | 10 cm |
| Weight: | 1.5 g |
| Gender: | Female-Female |
|---|---|
| Wire gauge: | 28 AWG |
| Current rating: | 1 A |
| Voltage rating: | 50 V |
| Connector: | JST SH-type |
| Terminations & length: | double-ended, 10 cm |
