Breakout for JST SH-Style Connector, 6-Pin Male Top-Entry (3-Pack, Untested)

This simple board serves as an adaptor between a JST SH-style 6-pin male connector and breadboard-compatible 0.1″-pitch through holes.

AUD$ 3.80

Special Order

Shipping from $2.90

+166 more from our supplier in 7-10 days

Our Code: SKU-006900

Supplier Link: [Pololu MPN:4771]

Description

Overview

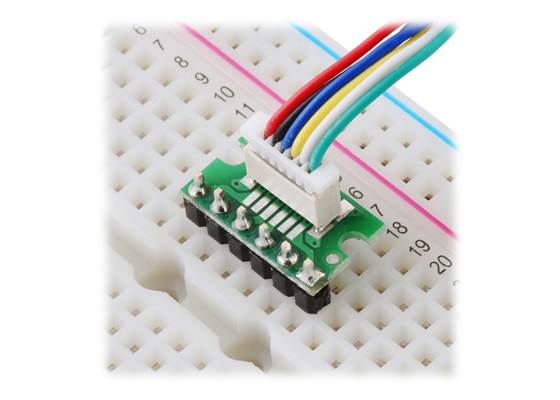

This is a breakout board for a 6-pin male JST SH-type connector that provides access to each pin on a row of 0.1″-pitch through holes, making it compatible with standard solderless breadboards. The through-holes work with standard 0.1″ (2.54 mm) male headers and 0.1″ female headers, which are available separately.

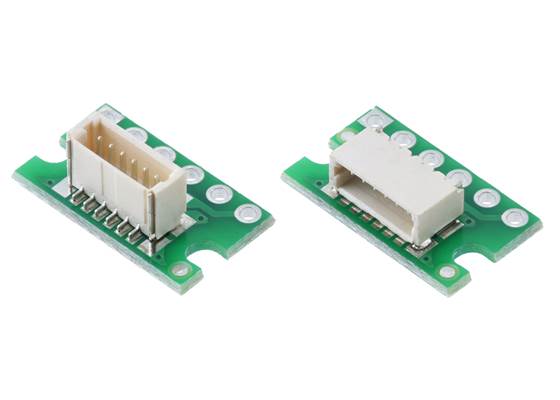

Top-Entry and Side-Entry Breakout Boards for JST SH-Style Connectors, 6-Pin Male.

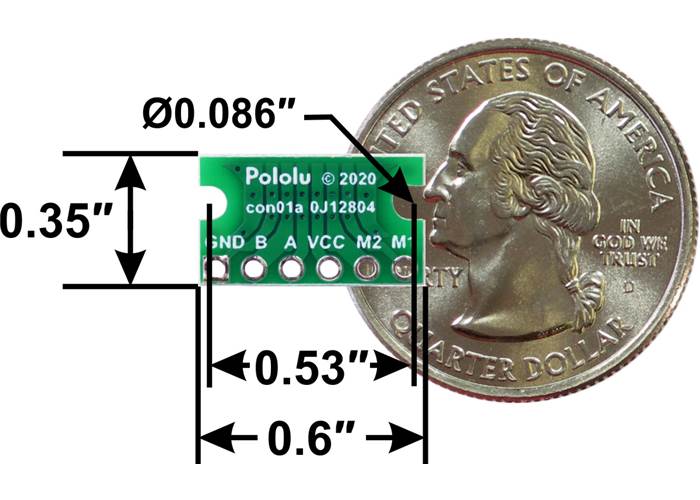

Breakout for JST SH-Style Connector, 6-Pin Male (Top-Entry or Side-Entry), bottom view with dimensions.

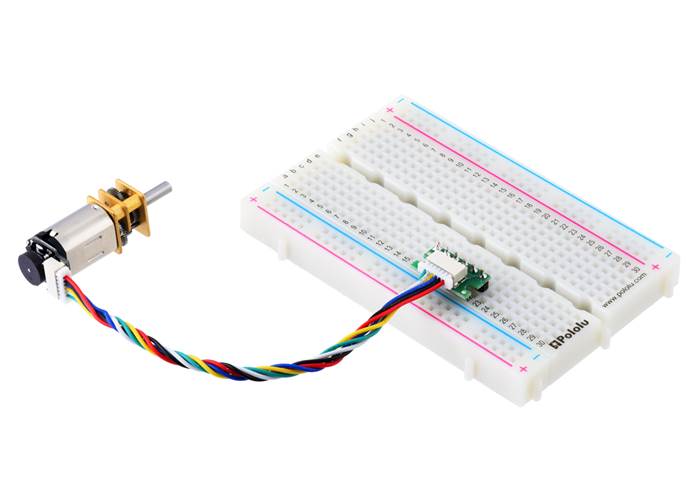

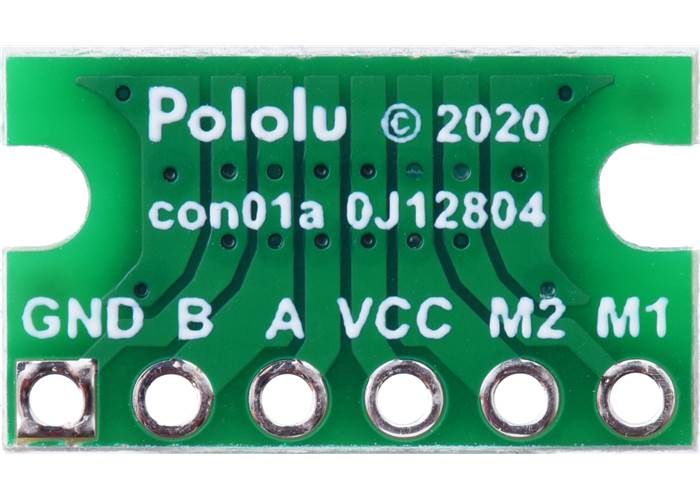

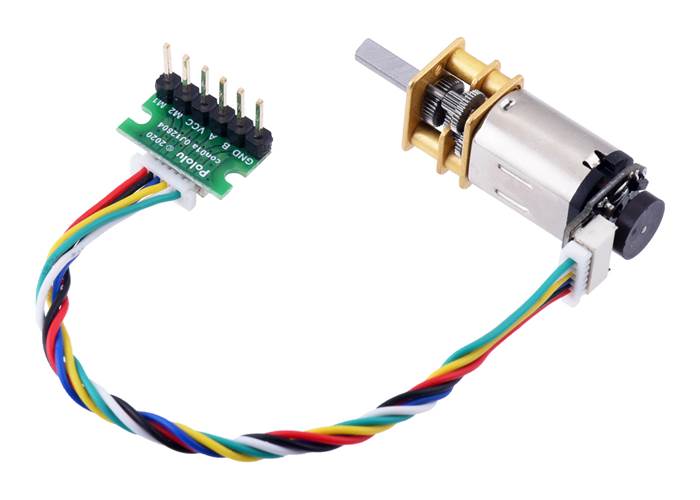

This board can be used with our Micro Metal Gearmotor Encoder with top-entry connector or with side-entry connector, along with a female-female JST SH-style cable (available in 10 cm, 16 cm, 25 cm, 40 cm, and 63 cm lengths). When used this way, the breakout provides convenient access to the motor and encoder pins on a breadboard, and the pins are labelled on the board’s bottom silkscreen with this application in mind.

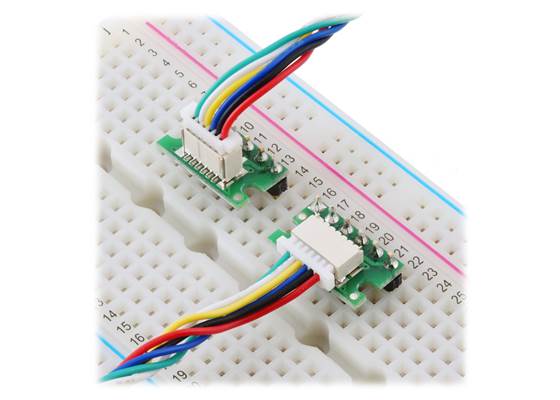

Top-Entry and Side-Entry Breakout Boards for JST SH-Style Connectors, 6-Pin Male. (1)

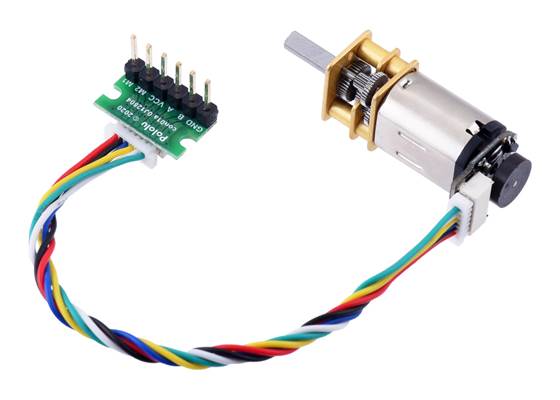

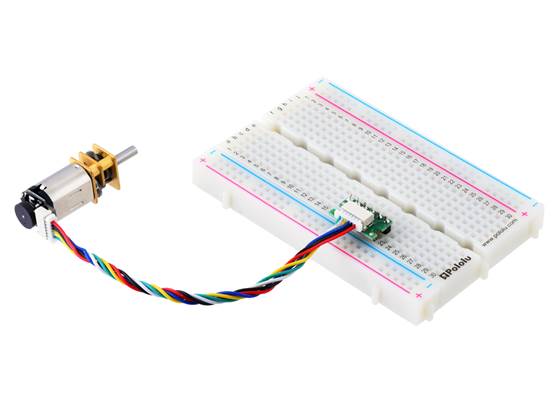

Side-entry JST SH-style connector breakout board in a breadboard, female-female cable, and encoder with connector mounted on a Micro Metal Gearmotor.

Alternatively, this board can serve as a general-purpose breakout for other applications; for example, a pair of connector breakouts with a female-female cable could be used as a removable general-purpose interconnect between different parts of a modular system.

Details for item #4771

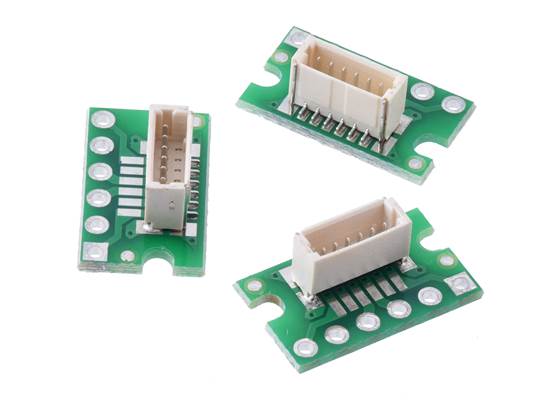

This item is a 3-pack of breakout boards with top-entry connectors. It is offered at a discounted price to reflect that the boards have not been electrically tested.

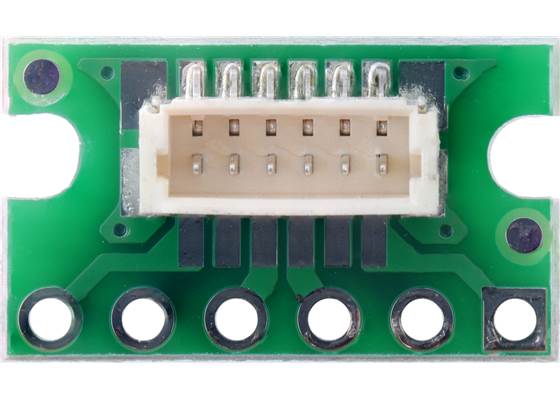

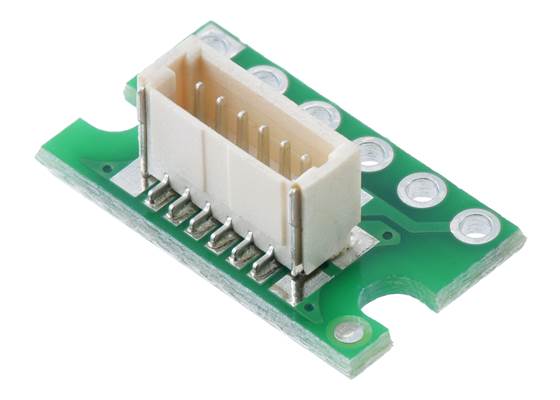

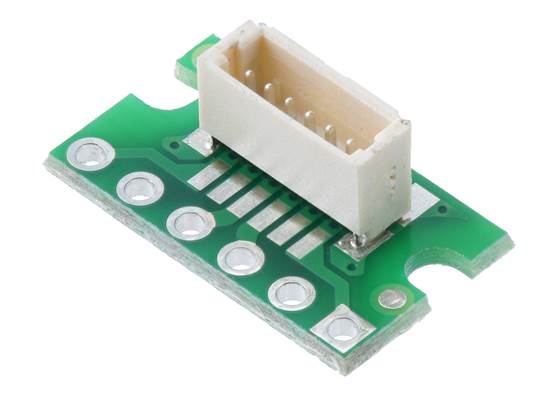

Breakout for JST SH-Style Connector, 6-Pin Male Top-Entry, top view.

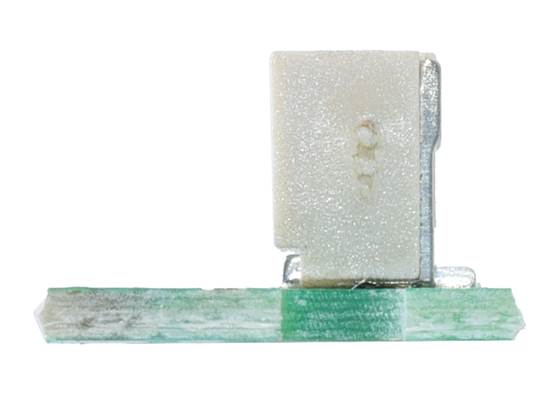

Breakout for JST SH-Style Connector, 6-Pin Male Top-Entry, profile view.

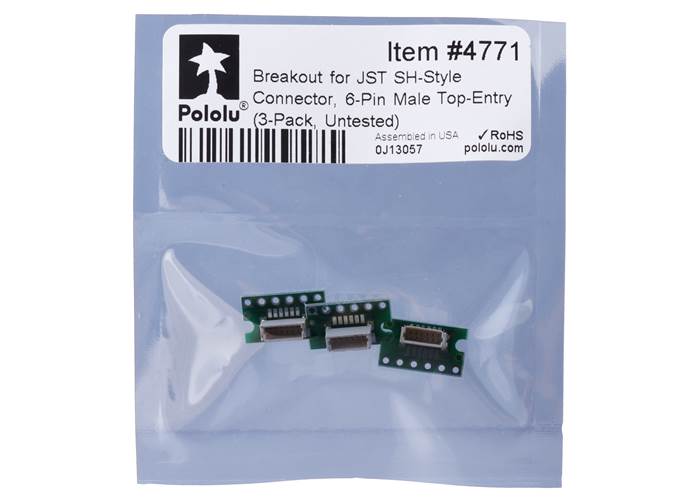

Standard packaging for the Breakout for JST SH-Style Connector, 6-Pin Male Top-Entry (3-Pack, Untested).

Even though these discounted units do not undergo electrical testing (which nearly all of our other boards do), each one has automated optical inspection (AOI) performed on it to check the placement of the connector and the quality of the solder joints. This makes it very unlikely for any of them to be bad, but if you want extra assurance that you are getting a working breakout board, you can instead get an individually-packaged board with a top-entry connector that has been fully tested.

All units automatically optically inspected.

We also offer a version with a side-entry connector, either individually packaged or in a 3-pack and untested.

Compatible cables

We have a variety of cables that work with this breakout board.

Twisted female-female cables with female JST SH-style connectors on both ends are available in five lengths:

Single-ended cables, with a female JST SH-style connector on one end and unterminated wires on the other end, are available in three cable lengths:

Use with Micro Metal Gearmotor Encoders

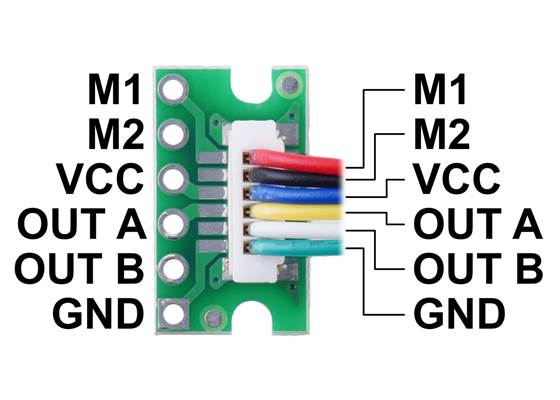

When used with our encoders and JST SH-style cables, the wire colour scheme is as follows:

Colour	Function
Red	motor power (connects to one motor terminal)
Black	motor power (connects to the other motor terminal)
Blue	encoder Vcc
Yellow	encoder A output
White	encoder B output
Green	encoder GND
