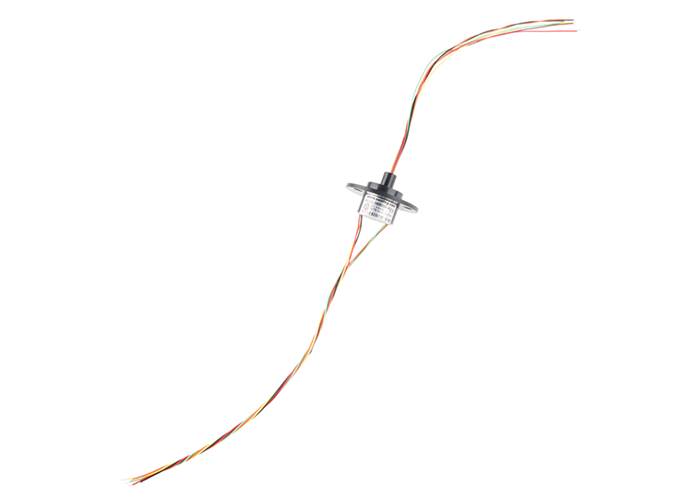

Slip Ring - 6 Wire (2A)

This capsule slip ring with 6 wires enables a complex electrical data or power connection to rotate continuously without getting in a bit knot. The internal connections are made with gold alloys to ensure smooth data transfer and power connections. Make your own sensor turret to survey for obsticals.

AUD$ 20.95

In stock in Australia

We can ship 167 more in 7 days

Our Code: CCW-20147

Supplier Link: [SparkFun MPN:13064]


Description

Internally the slip ring has gold alloy fibers contacting gold alloy rings to ensure that the transfer of power or data is done reliably. The device will allow continual rotation around 360º without tangling your wires. It works up to 250RPM and each 28AWG wire can carry 2A at 210VDC or 240AC. It has a IP51 water protection rating so will be ok outside.

With this you can make your own rotating sensor turret.

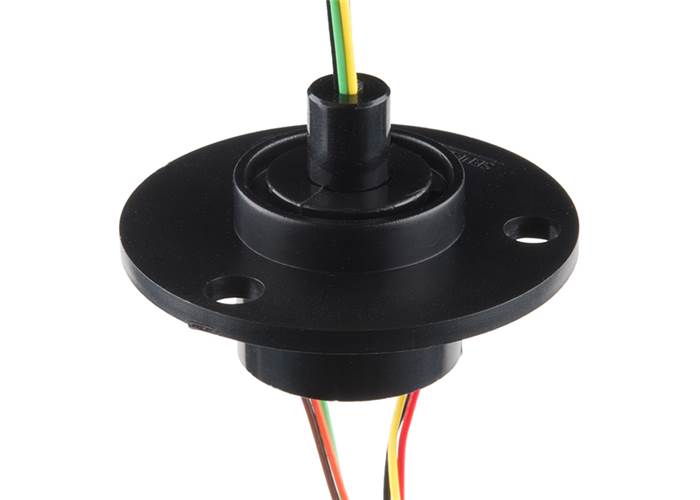

Dimensions: 22mm Diameter x 19.5mm Length w/ 44.5mm Diameter Flange


Specifications

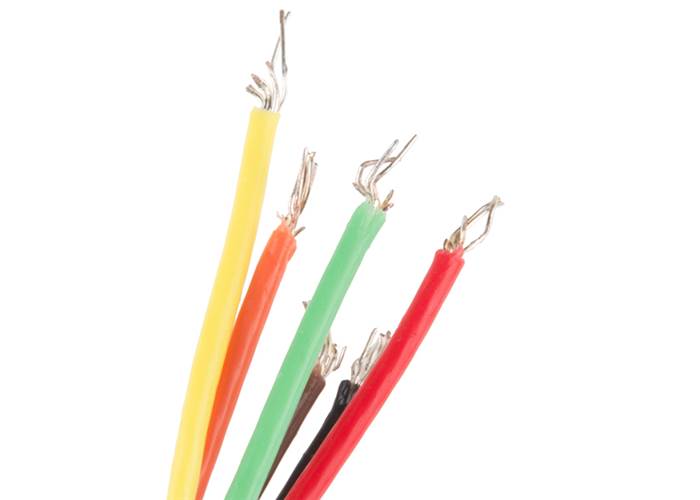

  • 6 wires, 250mm in length on each side.
  • Voltage: 210VDC / 240VAC
  • Current Rating: 2A
  • Operating Speed: 250RPM
  • Compatible with data bus protocols
  • Transfers analogue and digital signals
