6-Pin Female JST SH-Style Cable 12cm

This 12 cm (4.5″) cable has six 28 AWG wires and a 6-pin female JST SH-type connector that works with our Micro Metal Gearmotor Encoders with top-entry connectors and with side-entry connectors . The other ends of the wires are unterminated; they can be cut to length to match your application.

AUD$ 1.85

In stock in Australia

We can ship 1497 more in 7-10 days

Our Code: SKU-005910

Supplier Link: [Pololu MPN:4762]



This cable is designed to work with our Micro Metal Gearmotor Encoders with top-entry connector and with side-entry connector. It consists of six 28 AWG colour-coded wires that are terminated on one end by a female JST SH-type connector.

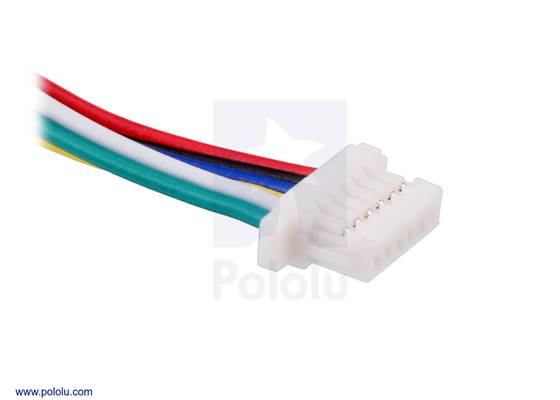

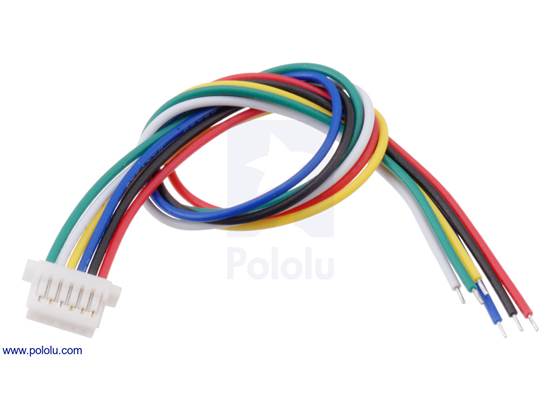

6-Pin Female JST SH-Style Cable.

The other ends of the wires are unterminated and can be cut to match the length of your application. You can use our male or female crimp pins and crimp connector housings to make a connector for the unterminated end of the cable that is compatible with standard solderless breadboards, perfboards, 0.1″ male headers, and 0.1″ female headers.

Use with Micro Metal Gearmotor Encoders

When used with our encoders, the wire colour scheme is as follows:

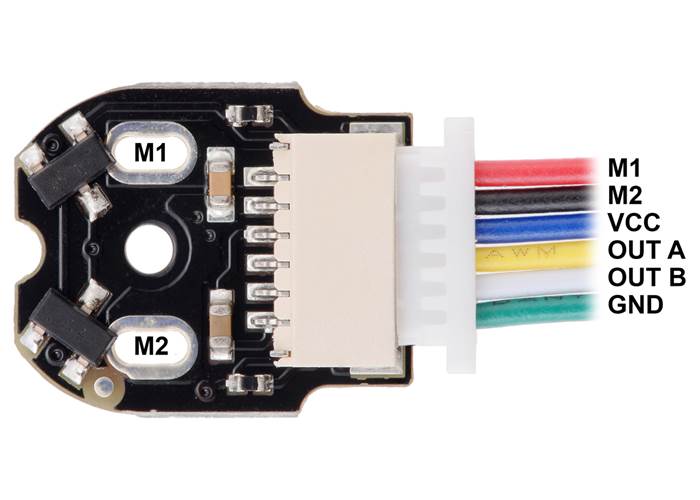

Pinout of Magnetic Encoder with Side-Entry Connector for Micro Metal Gearmotors, magnet-side view of PCB with JST cable plugged in (cable not included).

Colour Function
Red motor power (connects to one motor terminal)
Black motor power (connects to the other motor terminal)
Blue encoder Vcc
Yellow encoder A output
White encoder B output
Green encoder GND

For more information on how to use the encoders, see the encoder product pages.

Available options

Three cable lengths are available:

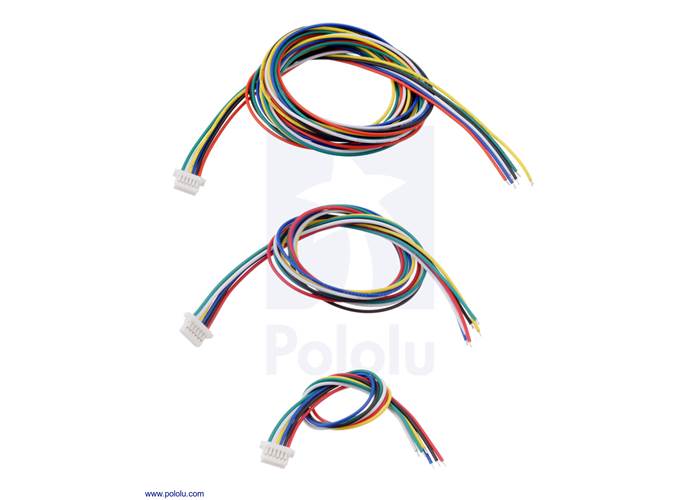

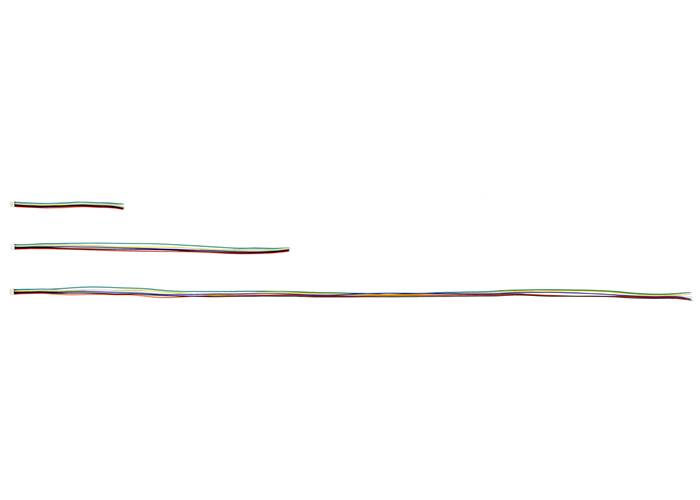

6-Pin Female JST SH-Style Cables (12 cm top, 30 cm center, 75 cm bottom).



Pins: 1×6
Length: 12 cm
Weight: 1 g

General specifications

Gender: Female-unterminated
Wire gauge: 28 AWG
Connector: JST SH-type
