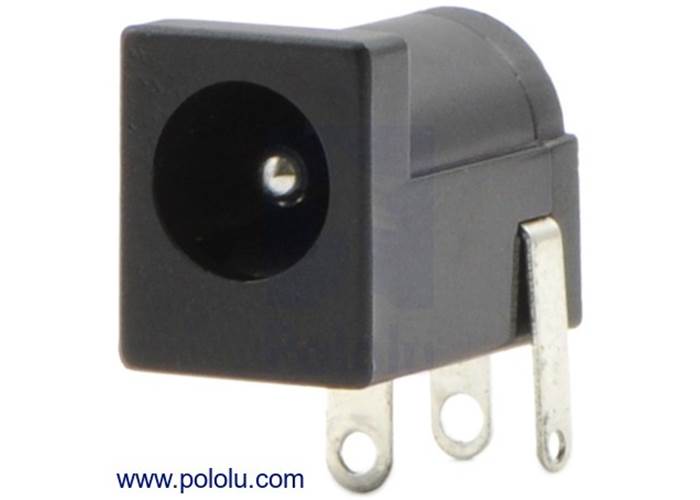

This is a standard PCB-mountable barrel-type jack for DC power adapters with 2.1 mm centre holes.
In stock in Australia
Shipping from $9.90
+381 more from our supplier in 7-10 days
Our Code: CCW-20101
Supplier Link: [Pololu MPN:1139]
This is a standard PCB-mountable barrel-type jack for DC power adapters with 2.1 mm center holes.
This is a standard PCB-mountable barrel jack for DC power adapters with 2.1 mm centre holes. This jack is compatible with our wall-adaptor power supplies:
 |
Dimensions (in mm) for the DC power adaptor barrel jack. |
|---|
The jack has three pins: pin 1 comes out of the back of the jack and is connected to the centre pole, pin 2 comes out of the bottom of the jack and is connected to the side wall, and pin 3 comes out the side of the jack and is automatically switched based on whether there is anything plugged into the jack. With nothing plugged into the jack, pins 2 and 3 are shorted together; with an adaptor plugged into the jack, pin 3 is disconnected. This feature makes it easy to create a system that is powered by a wall adaptor when one is plugged into the jack and by a battery the remainder of the time.
For a DC jack that connects directly to a terminal block for easy connection of wires, see our DC barrel jack to 2-pin terminal block adaptor.
