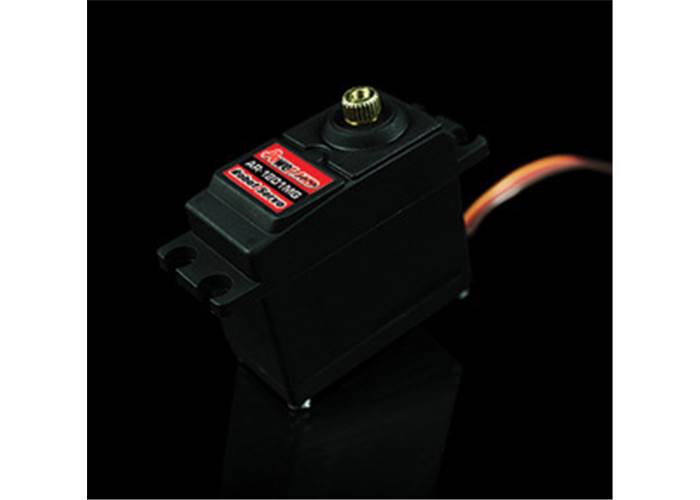

Power HD Analog Standard Size High Torque Robot Servo AR-1201MG

AR-1201 is a robot servo from PowerHD that features an output shaft on one side and a pivot on the other for driving brackets in a balanced way. It combines high torque and good speed using metal gears and ball bearings. Key specs at 6 V: 0.20 sec/60°, 187.5 oz-in (13.5 kg-cm), 60 g.

AUD$ 38.95

In stock in Australia

We can ship more in 7 days

Our Code: MEC-30154


Overview

The AR-1201MG is a standard-size servo designed for robotics or other applications where torque must be balanced such as robot arms and other joint mechanisms.

On one side is the normal servo output shaft and on the opposing side is a strong low friction plastic pivot joint that enables the servo to apply torque more evenly in a bracket.

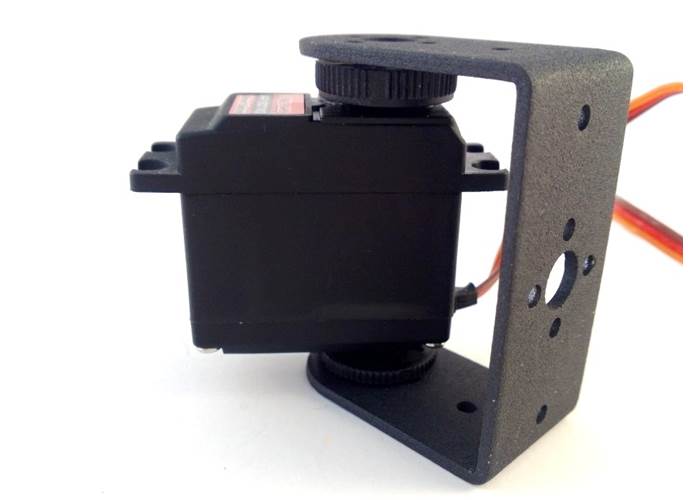

Short arm servo bracket fitted to a robot servo

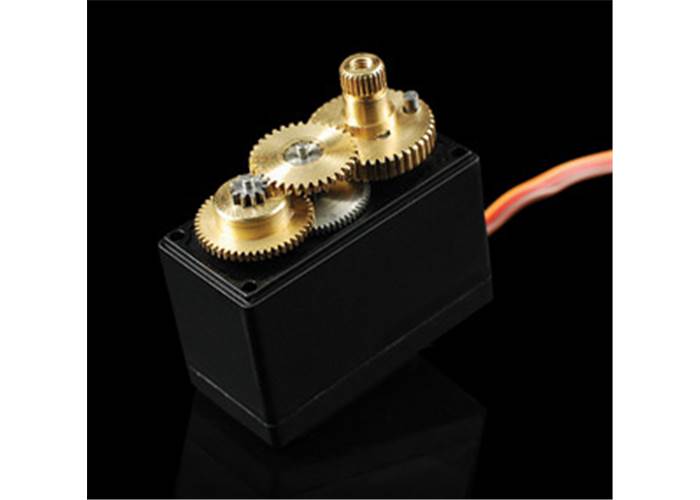

Metal gears allow this servo to product very high torque (13.5Kg-cm) and ball bearings help reduce friction and improve performance. The lead is terminated with a standard “JR”-style connector, which is Futaba-compatible


Specifications

Specifications

Size 40.5 x 20 x 38mm
Weight 60g
Digital/Analog Analog
Speed @ 6V 0.20 sec/60°
Stall Torque @6V 13.5kg/cm
Speed @ 4.8V 0.22 sec/60°
Stall Torque 4.86V 12kg/cm
Lead Length 11in (279.4mm)

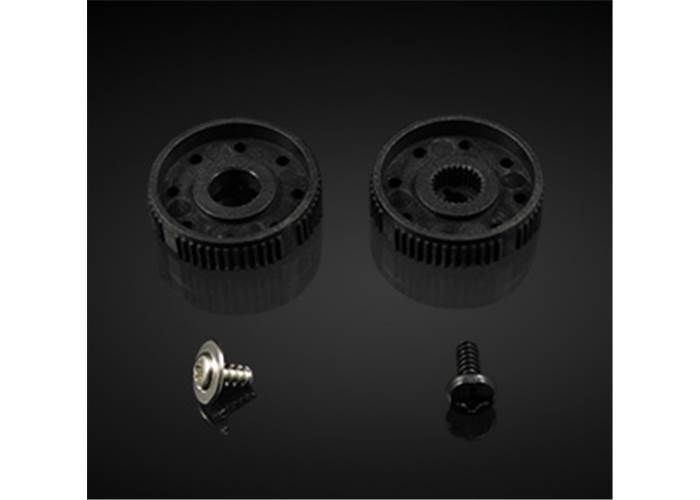

Hardware Included Yes
