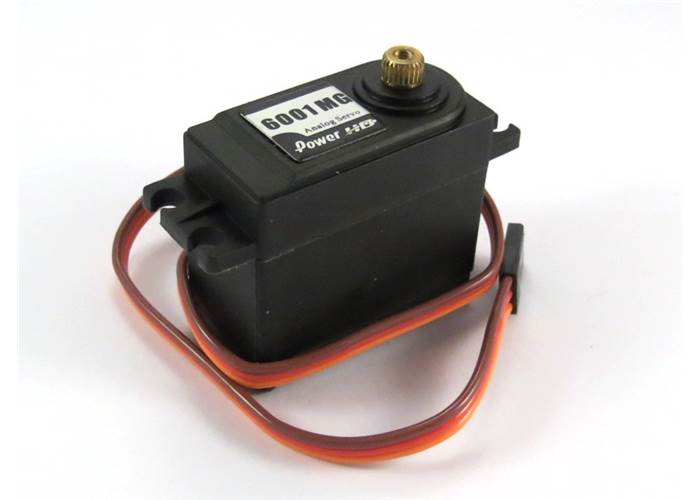

Power HD Analog Standard Size Servo 6001MG

The 6001MG is a great value standard analog servo from Power HD that gives you plenty of torque without sacrificing speed. Two ball bearings help reduce friction and improve performance while part use of metal gears helps provide extra strength. Servo horns and associated hardware are included. Key specs at 6 V: 0.14 sec/60°, 93 oz-in (7 kg-cm), 56 g.

AUD$ 36.95

In stock in Australia

We can ship more in 7 days

Our Code: MEC-30112




Overview

The HD-6001MG is a great, general-purpose, standard-size servo that gives extra torque without sacrificing speed. Two ball bearings help reduce friction and improve performance while metal gears at high torque stages provide extra strengh to the servo. The lead is terminated with a standard “JR”-style connector, which is Futaba-compatible.

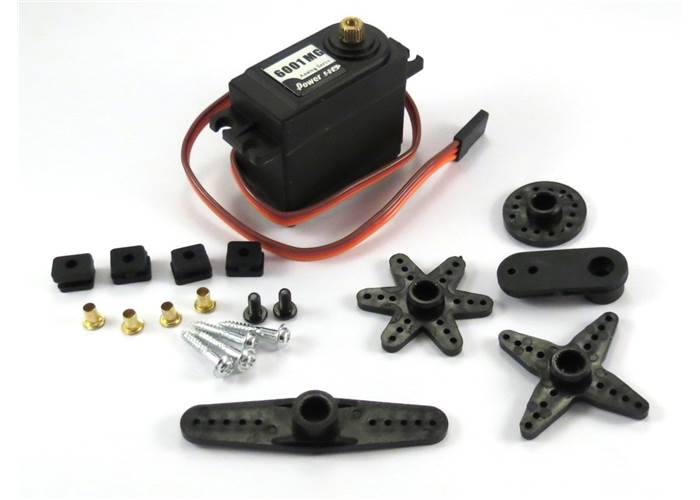

Power HD Standard Servo 6001MG - included hardware




Specifications

Dimensions

Size: 40.7 x 20.5 x 39.5 mm
Weight: 56 g

General specifications

Digital?: N
Speed @ 6V: 0.14 sec/60°
Stall torque @ 6V: 6 kg·cm
Speed @ 4.8V: 0.16 sec/60°
Stall torque @ 4.8V: 6 kg·cm
Lead length: 11 in
Hardware included?: Y
