Power HD Analog Micro High Speed Servo HD-1900A

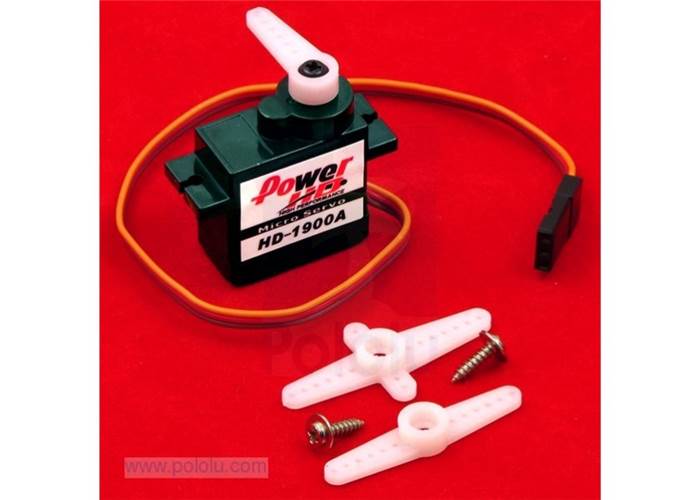

The HD-1900A analog servo from Power HD is a great general-purpose micro servo motor at a great price. Though not shown in the picture, servo horns and associated hardware are included. Key specs at 6 V: 0.08 sec/60°, 21 oz-in (1.5 kg-cm), 9.0 g.

AUD$ 11.95

In stock in Australia

We can ship more in 7 days

Our Code: MEC-30036


Overview

This is a great general-purpose actuator for tiny mechanisms. The picture below shows the hardware included with this servo. You can find more information about this servo under the specifications tab and in its datasheet (187k pdf).

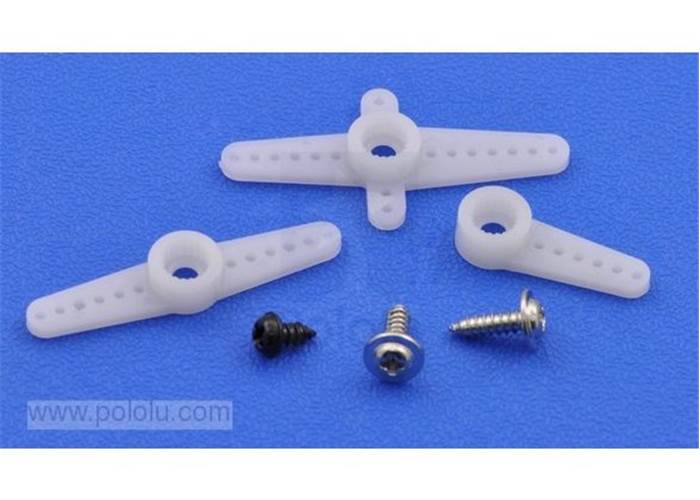

Hardware included with the Power HD 1900A servo


Specifications

Dimensions

Size: 22.9 x 12.0 x 27.3 mm
Weight: 9 g

General specifications

Digital?: N
Free-run current @ 6V: 140 mA
Stall current @ 6V: 830 mA
Speed @ 6V: 0.08 sec/60°
Stall torque @ 6V: 1.5 kg·cm
Speed @ 4.8V: 0.11 sec/60°
Stall torque @ 4.8V: 1.2 kg·cm
Lead length: 6 in
Hardware included?: Y
