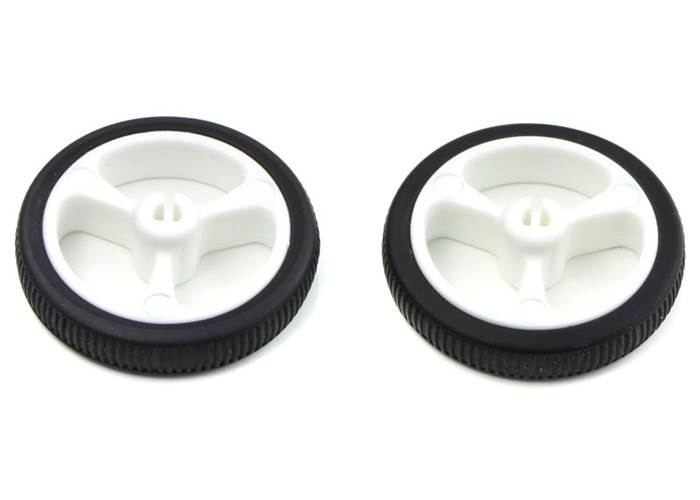

Pololu Wheel 32×7mm Pair - White

AUD $4.85

In Stock: Ships Today

Back orders: Ship 659 units in 7 days

Our Code: SKU-002487

Supplier: [Pololu MPN:1088]

These white plastic wheels have silicone tires measuring 32 mm (1.26″) in diameter and press-fit onto the 3mm D output shafts on many of our motors, including our micro metal gearmotors and our mini plastic gearmotors . These wheels are sold in pairs .


Description

Pololu wheel 32x7mm on a micro metal gearmotor

Pololu wheel 32x7mm on a micro metal gearmotor

Motor Connections

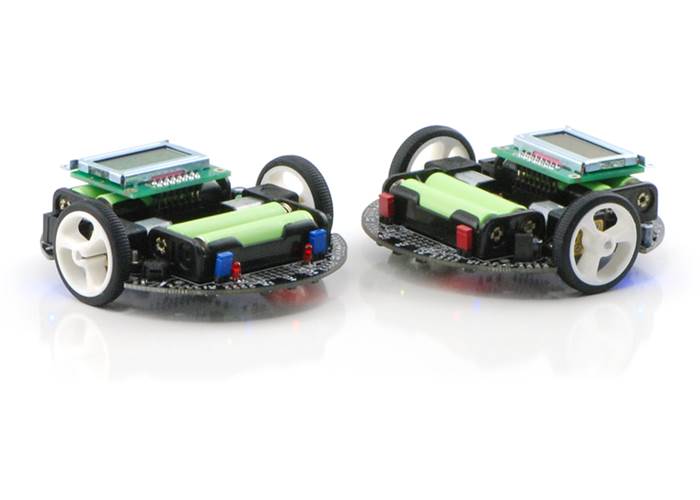

These wheels are designed to press-fit securely onto the 3mm D output shafts on many of our gearmotors, including our micro metal gearmotors and our mini plastic gearmotors. They also work with our 35:1 and 115:1 15.5D metal gearmotors. These are the same wheels that are used on the 3pi robot. They are available with white plastic hubs or black plastic hubs.

Both our micro metal gearmotor bracket and extended micro metal gearmotor bracket work with this wheel.

Specifications

  • Diameter: 1.26″ (32 mm)
  • Width of tyre: 0.26″ (6.5 mm)
  • Weight: 0.11 oz (3.2 g)
  • Shaft type: 3mm “D”

We have similar wheels available in different sizes and colors:

Select options:

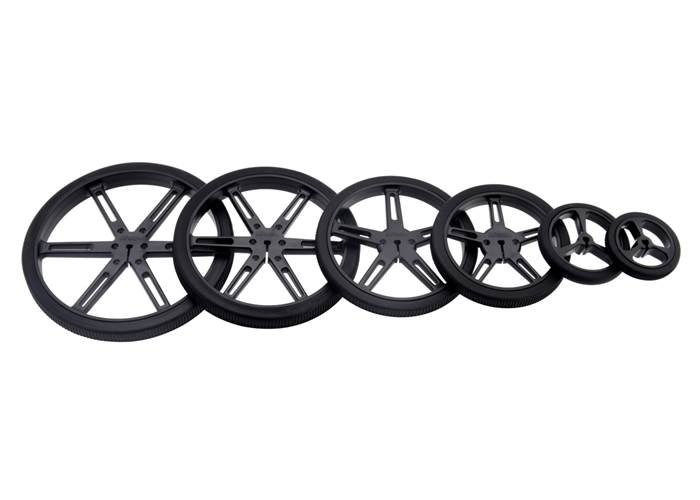

Black Pololu wheels with 90, 80, 70, 60, 40, and 32 mm diameters (other colors available)

Black Pololu wheels with 90, 80, 70, 60, 40, and 32 mm diameters (other colors available)

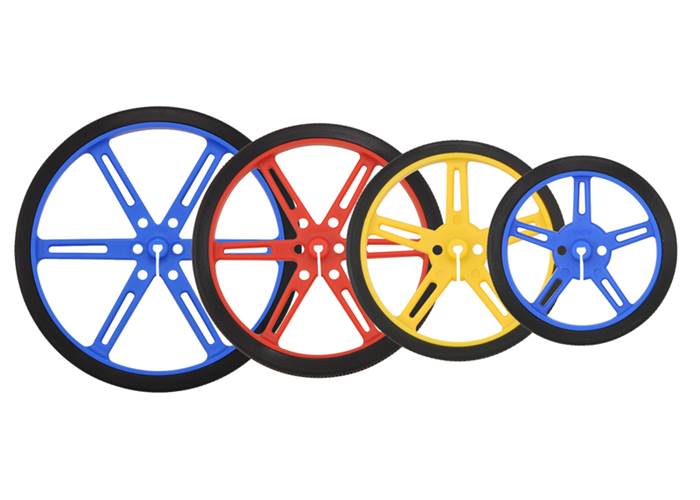

Pololu wheels with 90, 80, 70, and 60mm diameters in three colors: blue, red, and yellow

Pololu wheels with 90, 80, 70, and 60mm diameters in three colors: blue, red, and yellow

Hub diagram with dimensions of the Pololu Wheel 32x7mm

Hub diagram with dimensions of the Pololu Wheel 32x7mm



Specifications

Dimensions

Size: 32 x 7 mm
Weight: 0.11 oz1
Shaft diameter: 3 mm2

General specifications

Colour: white

Notes:

1
Per wheel, including tyre.
2
D-shaped hole for press fit onto Pololu micro and mini metal gearmotors.

FAQs

What are the Pololu wheels made of?
  • The material used to make the hubs of Pololu wheels is ABS (also known as Polylac) PA-747.
  • The material used to make the tires of Pololu Wheel 42×19mm is natural rubber.
  • The material used to make the tires of all Pololu wheels except the Pololu Wheel 42×19mm is Silicone.
