These top-entry screw terminal blocks have a pitch of 5 mm (0.197″) . Each block has three terminals for the stripped ends of 22 – 14 AWG wires, and units can slide together to make longer strips. They are rated for 250 V, 16 A (UL) and ship in packs of four .
Out of Local Stock
Our Code: SKU-003232
Supplier Link: [Pololu MPN:2443]
These terminal blocks have terminals that hold and release wires through the simple adjustment of a screw, allowing you to easily make temporary connections to a PCB. The 2-pin and 3-pin units each feature a ridge on one side and a slot on the other, which lets them slide and lock together to form arbitrarily long strips with a pitch of 3.5 mm or 5 mm. Each terminal block is available in two orientations: side-entry and top-entry.
This product is a four-pack of 5mm-pitch, three-pin, top-entry terminal blocks. The more general dimension diagram for an XX-pin version of this screw terminal block is shown below.
|Screw terminal block: 5 mm pitch, top entry.|

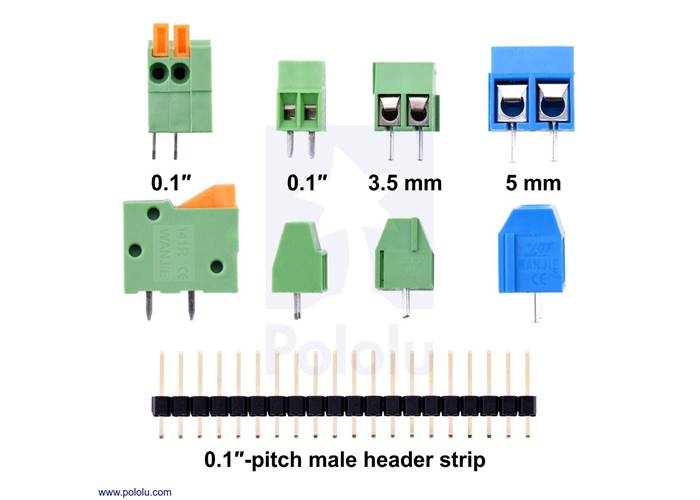

We carry several different sizes and styles of terminal blocks in addition to these stackable screw terminal blocks; the picture below shows a side-by-side comparison:
