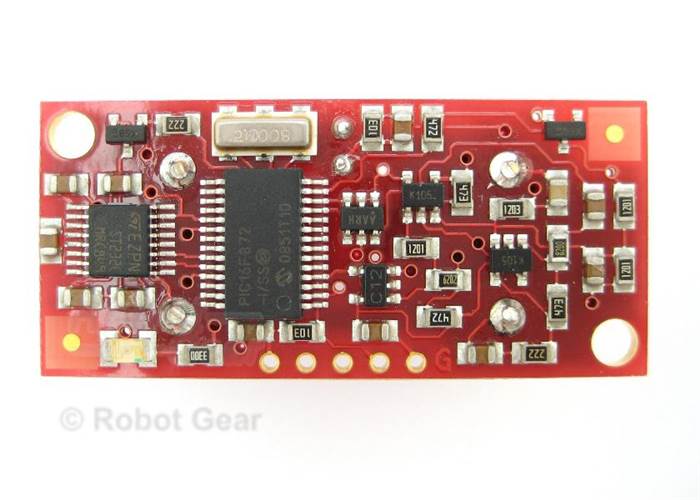

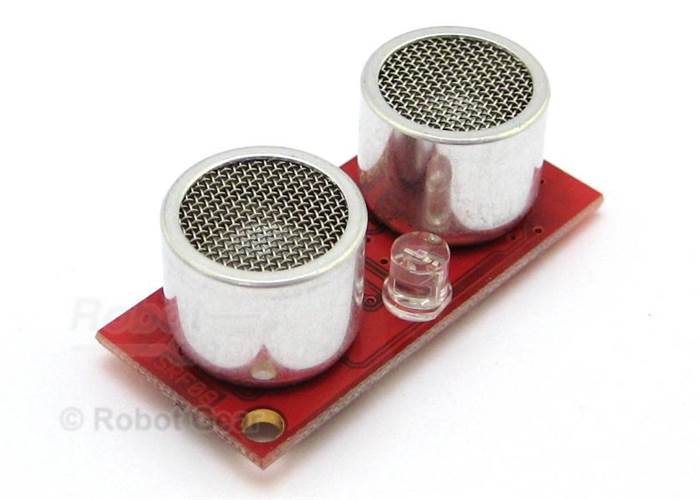

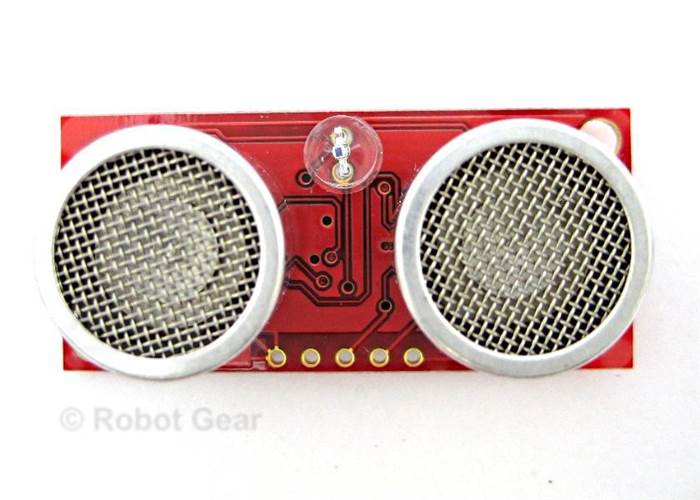

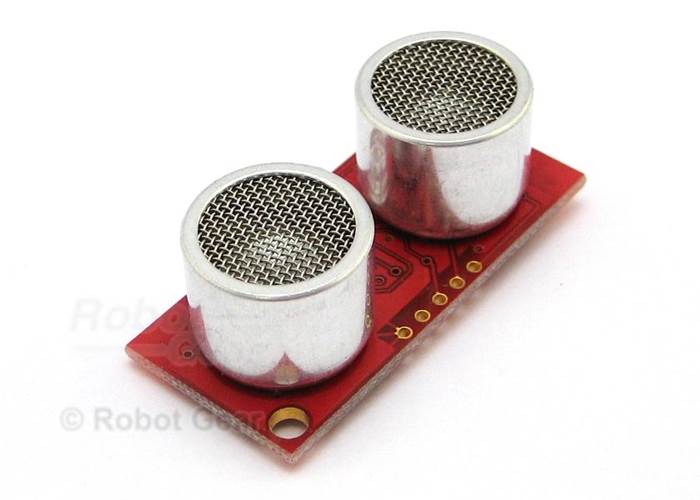

Devantech SRF08 Ultrasonic Sonar Range Finder

AUD $58.95

In Stock: Ships Today

Back orders: Ship in 7 days

Our Code: SEN-10008

The SRF08 is an advanced ultrasonic range finder that connects over a I2C interface and has a range of 3cm to 6m. Low power consumption, fully timed multiple echos and a bonus built in light sensor.


Overview

Communication with the SRF08 is via the I2C bus making it compatible with a wide range of microcontrollers. The address can be changed to allow up to 16 SRF08 sensors to be connected.

The power consumption of the SRF08 has been improved from the original SRF04 now down to 15mA Typ. and 3mA in the automatic standby mode the senser drops into between readings.

A fully timed echo frees the host controller of the job and in addition the SRF08 keeps reading up to 16 echos so more information is available other than the first object to reflect the ultrasonic burst. This can be usefull when attempting to identify a path such as through a door rather than just the first echo from the door frame.

Be sure to check out the detailed technical description by the manufacturer, including the 'Do not connect' pin.

Here's the beam pattern...

SRF08 Beam Pattern






Features

Range3cm-6m
 uS, mm or inches
Voltage5v
Current15mA Typ. Standby 3mA
Frequency40KHz
Analog GainVariable 94-1025 in 32 steps
ConnectionI2C bus
Light SensorFront facing. Output via I2c. Updated each ping.
TimingFully timed echo. Muliple readings
Dimensions43mm x 20mm x 17mm
