The SparkFun DAN-F10N Breakout makes dual-band GNSS economical, delivering reliable, meter-level accuracy with its powerful u-blox F10 engine.
Special Order
Shipping from $9.90
+18 more from our supplier in 7-10 days
Our Code: SKU-011181
Supplier Link: [SparkFun MPN:28435]

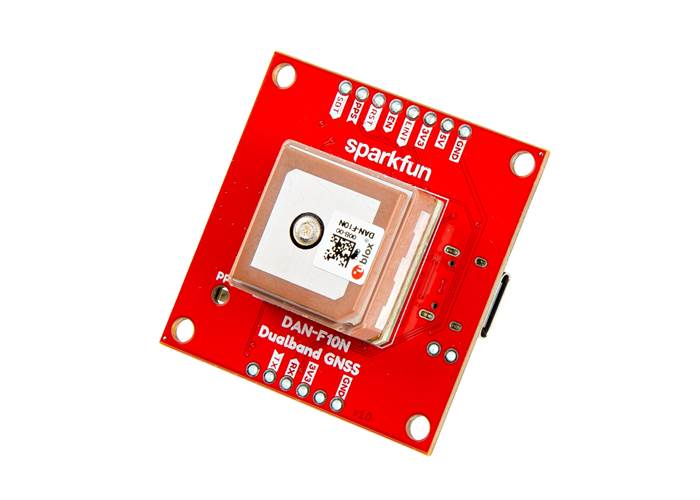

The SparkFun DAN-F10N Dualband GNSS Breakout is built around the powerful u-blox F10 engine, offering simultaneous reception of L1 and L5 frequency bands. This board leverages u-blox's advanced multipath mitigation technology to isolate the strongest signals, delivering reliable, meter-level position accuracy even in dense urban canyons. To ensure signal integrity, the module incorporates a robust SAW-LNA-SAW RF front-end with an additional notch filter (LTE B13), providing excellent rejection of interference from nearby cellular modems.
This breakout features a compact, integrated 20mm x 20mm x 8mm Right-Hand Circular Polarized (RHCP) dual-band patch antenna, offering a great balance of size and performance. Its wide beamwidth allows for flexible device orientation. For even greater utility, an onboard switch will enable you to easily connect an external dual-band antenna.
The DAN-F10N is fully supported by the u-blox u-centre-2 software for configuration, data logging, and real-time performance analysis. It is also compatible with AssistNow (Online, Offline, and Autonomous) A-GNSS services for significantly faster satellite acquisition. You can interface with the module using the standard NMEA 4.11 and UBX binary protocols.
SparkFun Dualband L1/L5 GNSS Breakout - DAN-F10N Features
