SparkFun Ambient Light Sensor - VEML7700 (Qwiic)

The SparkFun Qwiic VEML7700 Ambient Light Sensor delivers precise 16-bit lux readings via I2C, featuring Arduino and Python libraries for easy setup!

AUD$ 11.95

Special Order

Shipping from $2.90

+390 more from our supplier in 7-10 days

Our Code: SKU-011174

Supplier Link: [SparkFun MPN:29211]

Description

The SparkFun Qwiic VEML7700 Ambient Light Sensor provides accurate, 16-bit ambient light readings from 0 to 167,000 lux via the I²C interface. This miniature sensor (6.8mm x 3.0mm x 2.5mm) features a high-sensitivity photodiode, a low-noise amplifier, and a 16-bit analogue-to-digital (A/D) converter. Its unshifted 7-bit I²C address is 0x10.

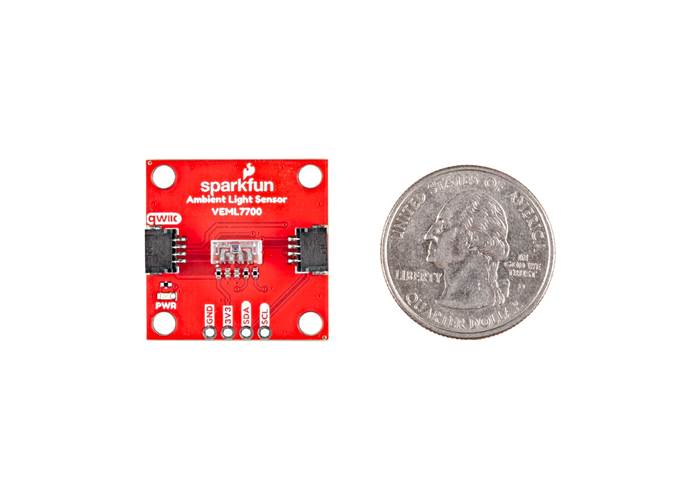

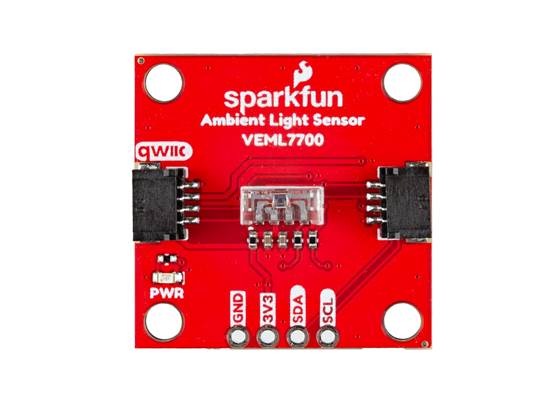

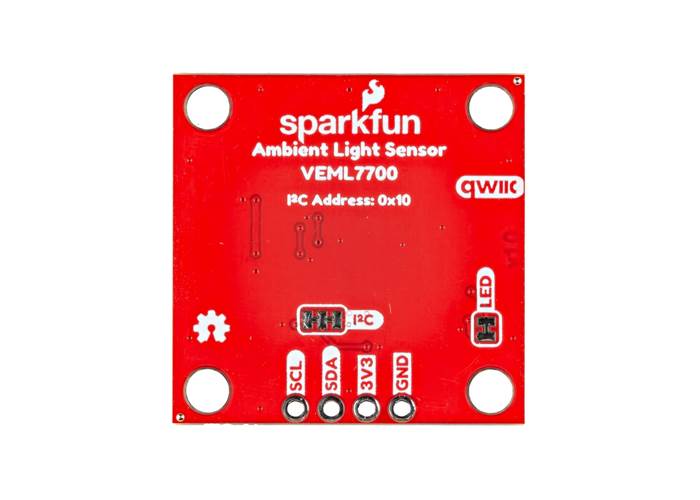

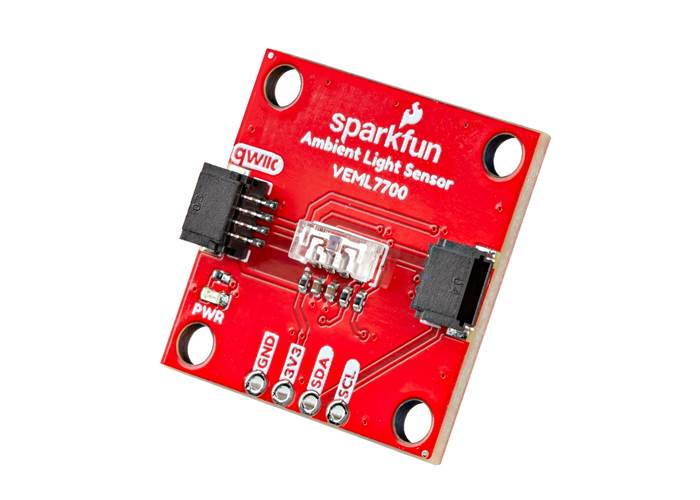

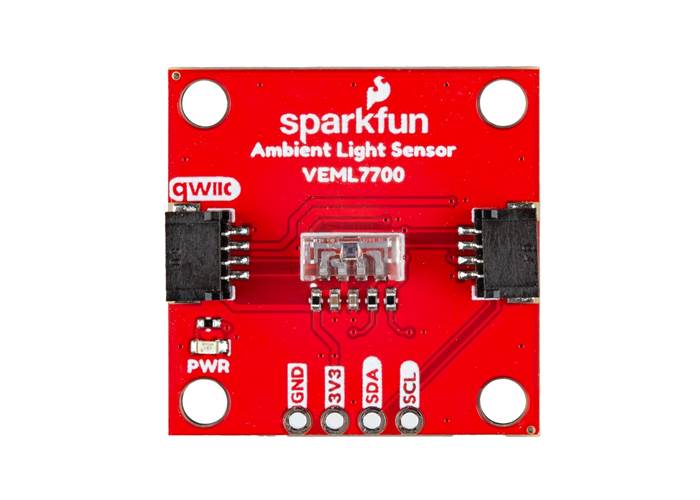

This Qwiic breakout board routes power (VDD/GND) and I²C signals (SDA/SCL) to two Qwiic connectors, plus a 0.1in.-spaced PTH header for both solderless and soldered applications. We offer an Arduino Library and Python package to quickly convert raw sensor data into lux, with automatic compensation for gain and integration time.

Specifications

Filtron™ technology adaption: close to real human eye response
O-Trim™ technology adoption: ALS output tolerance ≤ 10 %
16-bit dynamic range for ambient light detection from 0 lx to about 167 klx with resolution down to 0.005 lx/count
100 Hz and 120 Hz flicker noise rejection
Excellent temperature compensation
High dynamic detection resolution
Software shutdown mode control
High and low threshold windows with interrupt flags
Supply voltage:
- 3.3V (TYP); 2.5V (MIN); 3.6V (MAX)
Typical current draw:
- Shut down: 0.5µA
- Refresh time 4100ms: 2µA
- Refresh time 100ms: 45µA
I²C address: 0x10 (unshifted)
