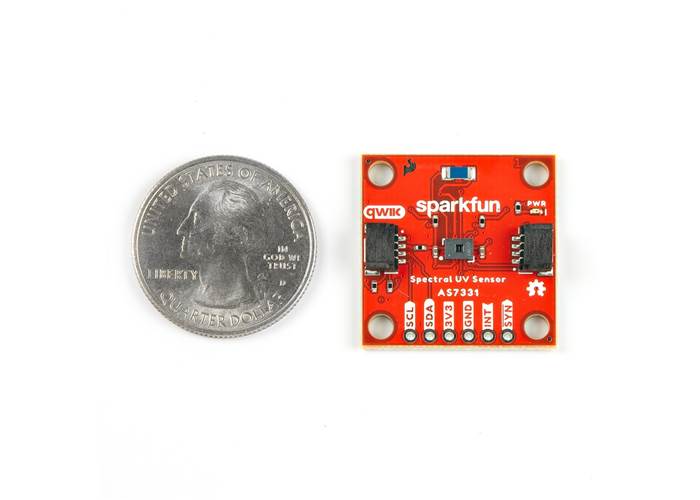

SparkFun Spectral UV Sensor - AS7331 (Qwiic)

The SparkFun Spectral UV Sensor provides high-accuracy UV radiation measurement across three distinct channels. Utilising the AS7331 sensor from ams OSRAM^©, you can independently track UVA (320-400nm), UVB (280-320nm), and UVC (200-280nm) light all from a single breakout board! Each UV channel has an individual photodiode with a built-in interference filter. This ensures maximum sensitivity and precision for your environmental data.

UV Sensing Operation and Integration

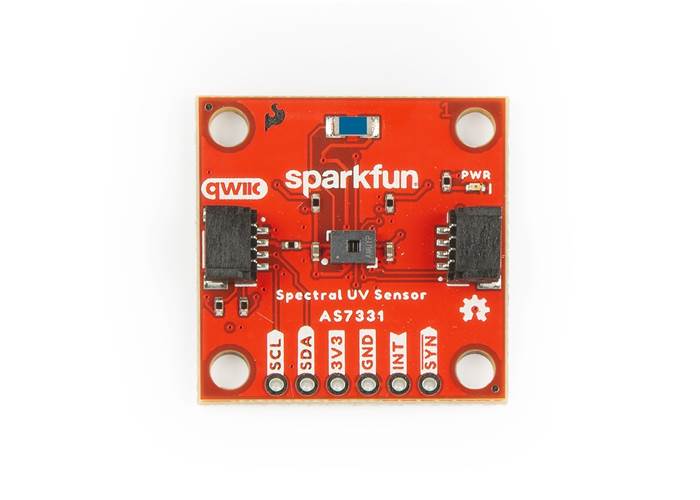

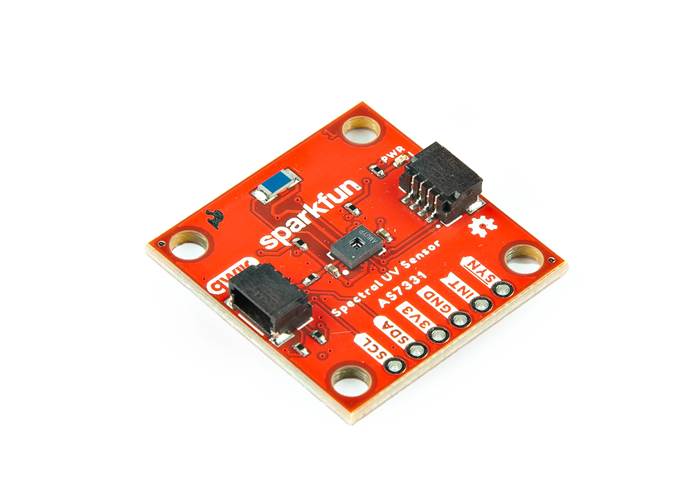

The Spectral UV Sensor communicates entirely over an I²C bus and is physically designed to adapt to your project. We routed the essential pins to a pair of Qwiic connectors for instant, solderless assembly. We also included standard 0.1-inch spaced through-hole pins for users who prefer a soldered connection. These also provide access to the sensor's specific Interrupt and Sync pins on the AS7331.

To further customise its operation, you have full control over how the sensor gathers data and interacts with your system:

• Configurable Operating Modes: Choose between Single Measurement (CMD), Continuous Measurement (CONT), Synchronised Start (SYNS), or Synchronised Start and End (SYND) to dictate exactly how and when data is collected.
• Smart Power Management: The sensor runs an automatic power-down sequence between active measurements. This keeps current consumption incredibly low across all modes, dropping to just 1µA during power-down.

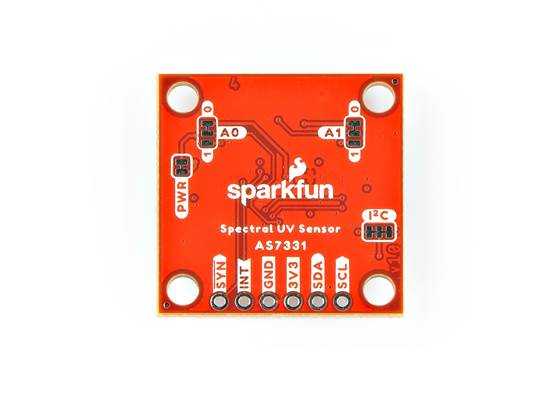

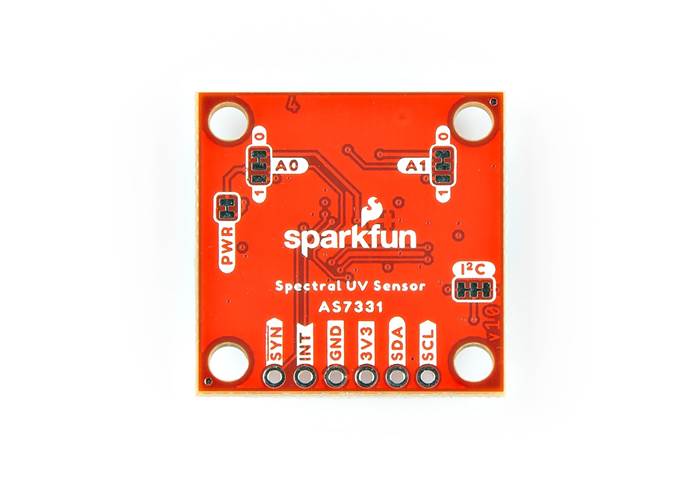

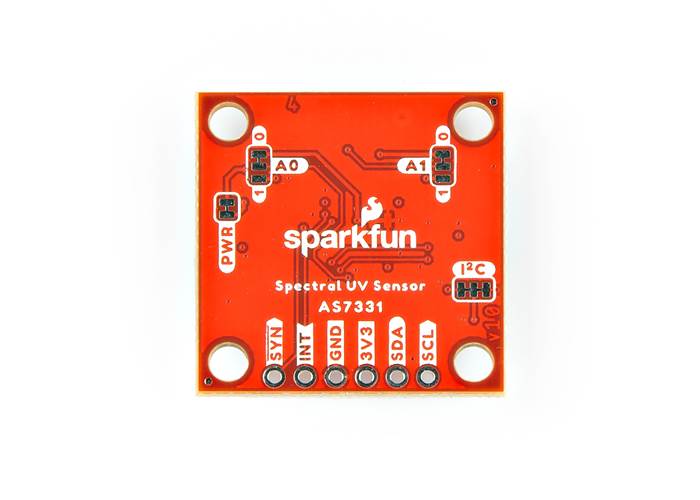

• Adjustable I²C Addresses: The A0 and A1 solder jumpers on the back of the board let you select from four I²C addresses. This lets you seamlessly stack multiple sensors on the same bus without hardware conflicts!

Best of all, our dedicated Arduino library makes the software setup incredibly simple. Just search for 'SparkFun AS7331' in the Arduino Library Manager to quickly configure the board and start reading UV data.

• Schematic
• Eagle Files
• Board Dimensions
• Hookup Guide
• Datasheet (AS7731)
• Qwiic Info Page
• SparkFun AS7331 Arduino Library
• GitHub Hardware Repo
