The SparkFun Qwiic Mini Tristimulus Colour Sensor is built around the OPT4048 High-Speed High Precision Tristimulus XYZ Colour Sensor from Texas Instruments.
Special Order
Shipping from $2.90
+187 more from our supplier in 7-10 days
Our Code: SKU-010177
Supplier Link: [SparkFun MPN:22639]

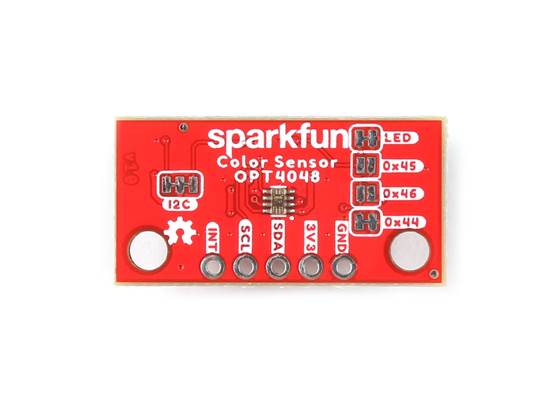

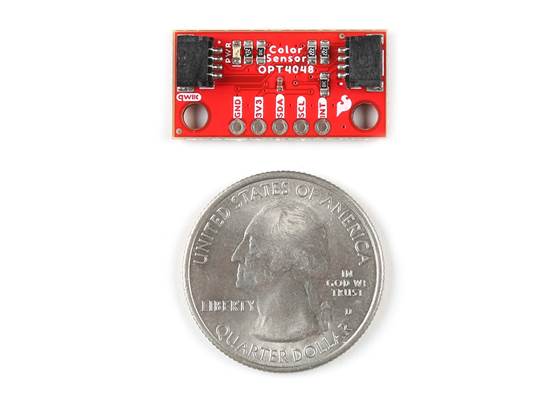

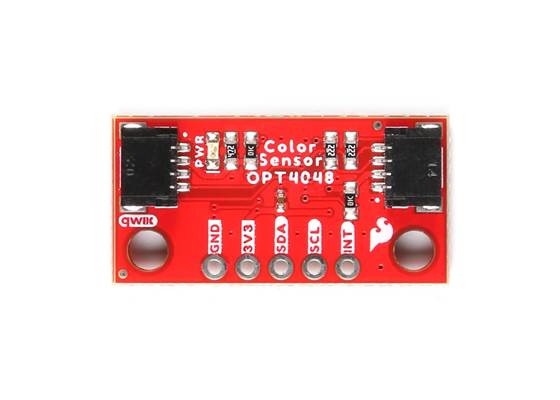

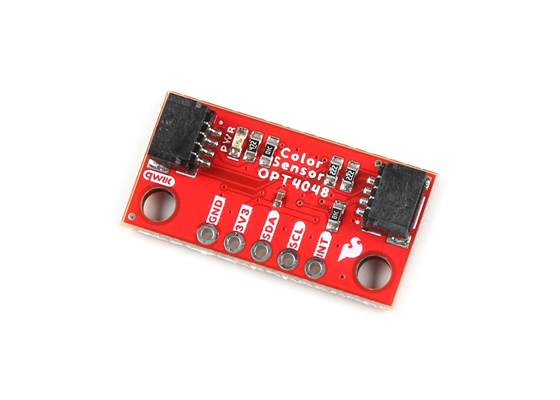

The SparkFun Qwiic Mini Tristimulus Colour Sensor is built around the OPT4048 High-Speed High Precision Tristimulus XYZ Colour Sensor from Texas Instruments. This Mini Sensor features a single-chip high-resolution colour sensor capable of measuring four channels, each with specific engineered spectral responses. This Mini-sized breakout board is only 0.5in. by 1in. big and has been equipped with two I2C Qwiic connectors to make interfacing with the OPT4048 a bit easier. It’s part of SparkFun’s Qwiic connect system, so you won’t have to do any soldering to figure out how things are oriented. However, we still have broken out 0.1"-spaced pins if you prefer to use a breadboard.
Three of the four channels on the OPT4048DTSR closely match the CIE tristimulus spectra, with the quarter channel having a wide-band spectral response. With measurements from these channels, essential characteristics of the lighting environment can be extracted, like (i) light intensity (lux), (ii) colour in CIE XY, LUV coordinates, and (iii) Correlated Colour Temperature. This aids in applications where measuring the precise characteristics of the lighting environment is critical, like display brightness, colour temperature adjustment, camera colour temperature correction, object true colour recognition, & medical applications.
We've written an Arduino library to make reading the various measurements easy. It can be downloaded through the Arduino Library manager: search for 'SparkFun OPT4048', or it can be found in the Documents section.
The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.
