SparkFun Tristimulus Color Sensor - OPT4048DTSR (Qwiic)

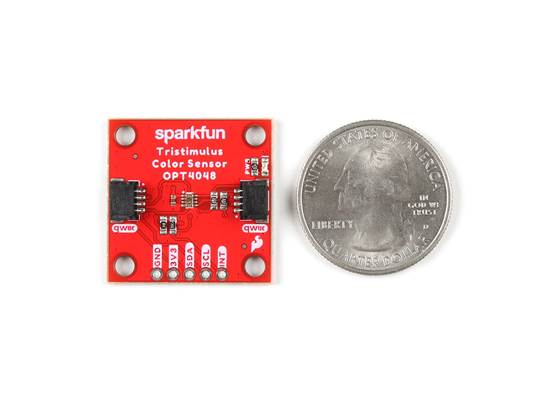

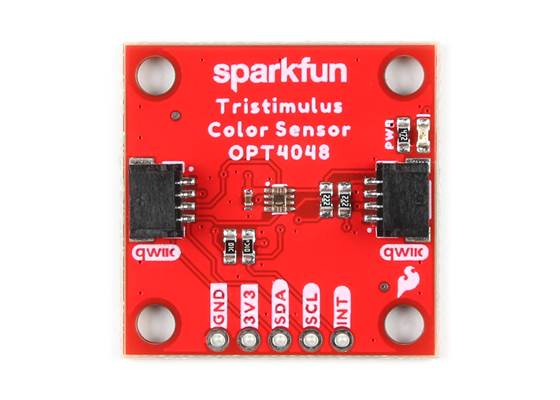

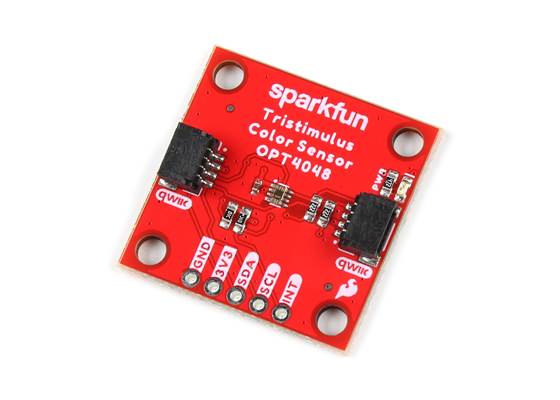

The SparkFun Qwiic Tristimulus Colour Sensor is built around the OPT4048 High-Speed, High-Precision Tristimulus XYZ Colour Sensor from Texas Instruments. This Sensor features a single-chip high-resolution colour sensor capable of measuring four channels, each with specific engineered spectral responses. This Standard-sized breakout board has two I2C Qwiic connectors to make interfacing with the OPT4048 easier. It’s part of SparkFun’s Qwiic connect system, so you won’t have to do any soldering to figure out how things are oriented. However, we still have broken out 0.1in.-spaced pins if you prefer to use a breadboard.

Three of the four channels on the OPT4048DTSR closely match the CIE tristimulus spectra, with the quarter channel having a wide-band spectral response. With measurements from these channels, essential characteristics of the lighting environment can be extracted, like (i) light intensity (lux), (ii) colour in CIE XY, LUV coordinates, and (iii) Correlated Colour Temperature. This aids in applications where measuring the precise characteristics of the lighting environment is critical, like display brightness, colour temperature adjustment, camera colour temperature correction, object true colour recognition, & medical applications.

We've written an Arduino library to make reading the various measurements easy. It can be downloaded through the Arduino Library manager: search for 'SparkFun OPT4048', or it can be found in the Documents tab.

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

• I²C Interface (Qwiic-enabled)

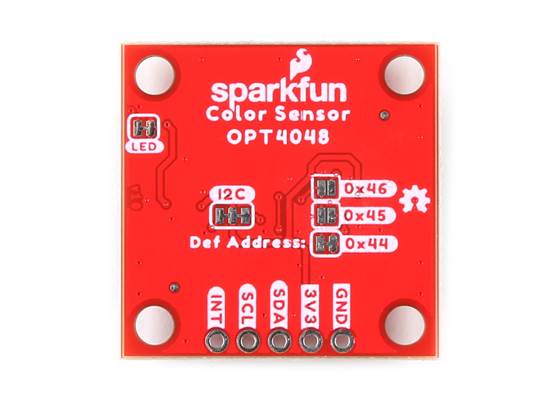

  • Selectable I²C Address: 0x44 (default), 0x45, 0x46
  • 2x Horizontal Qwiic Connectors
• Standard 1in. x 1in. Footprint
• Supply Voltage Range: 1.71-3.6V
• Four-channel sensing using precision optical filters
• XYZ tristimulus channels with close matching to CIE 1931 spectra with excellent IR rejection
• Clear wide bandwidth channel
• High-resolution colour measurement in CIE XY, LUV space, correlated colour temperature (CCT) along with ambient lux measurement
• Semi-logarithmic output with seven binary logarithmic full-scale light ranges and highly linear response within each range
• Built-in automatic full-scale light range selection logic, which switches measurement range based on input light condition with excellent gain matching between ranges
• 26 bits of effective dynamic range from 2.15mlux to 144klux
• 12 configurable conversion times from 600µs to 800ms per channel is an excellent choice for a wide variety of high-speed and high-precision applications
• External pin interrupt for hardware synchronised trigger and interrupts
• 24µA (with ultra-low power standby (2µA)) low operating current
• –40°C to +85°C operating temperature range
