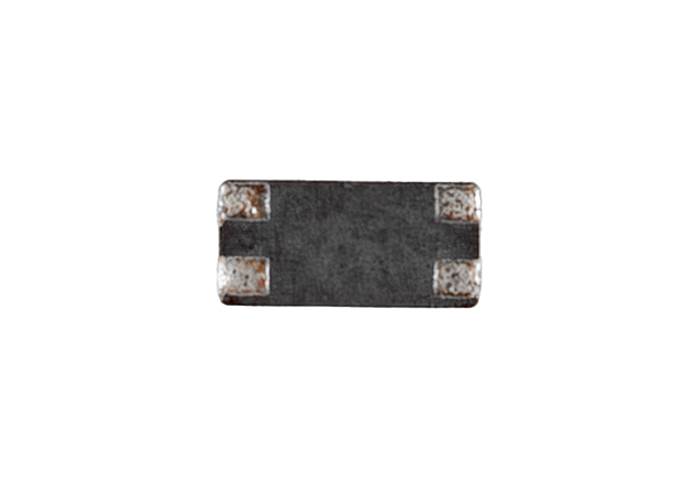

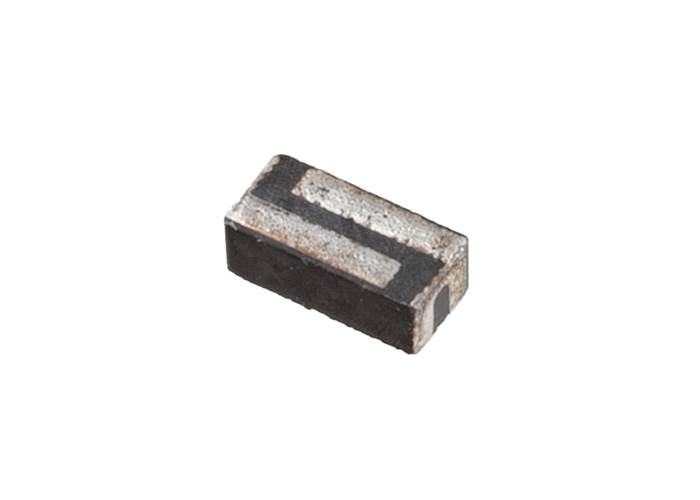

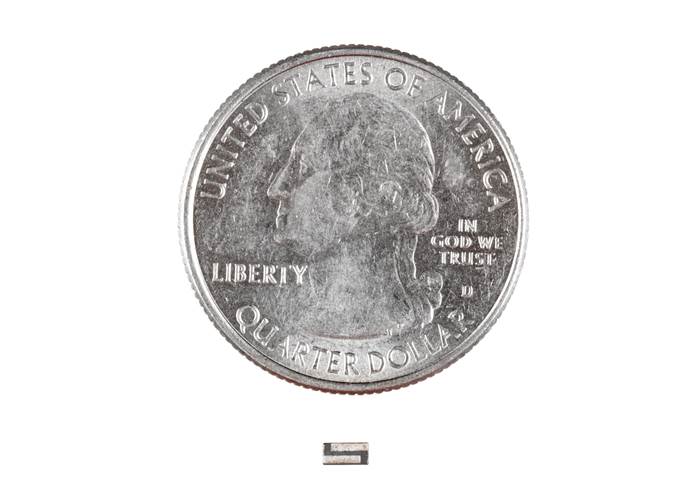

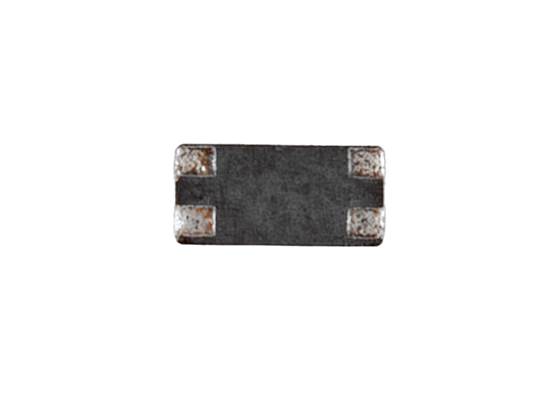

Molex Ceramic Chip PCB Mount Antenna

This is a low profile ceramic chip GPS antenna from Molex. It has a frequency range of 1.561GHz ~ 1.602GHz.

AUD$ 1.30

Special Order

Shipping from $2.90

+20 more from our supplier in 7-10 days

Our Code: SKU-011150

Supplier Link: [SparkFun MPN:29204]

Description

This is a low profile ceramic chip GPS antenna from Molex. It has a frequency range of 1.561GHz ~ 1.602GHz.

Specifications

  • Frequenct Group: UHF (1GHz ~ 2GHz)
  • Frequency (Centre/Band): 1.575GHz
  • Frequency Range: 1.561GHz ~ 1.602GHz
  • Antenna Type: Chip
  • Number of Bands: 1
  • Return Loss: -10dB
  • Gain: 2dBi
  • Power - Max: 2W
  • Termination: Solder
  • Mounting Type: Surface Mount
