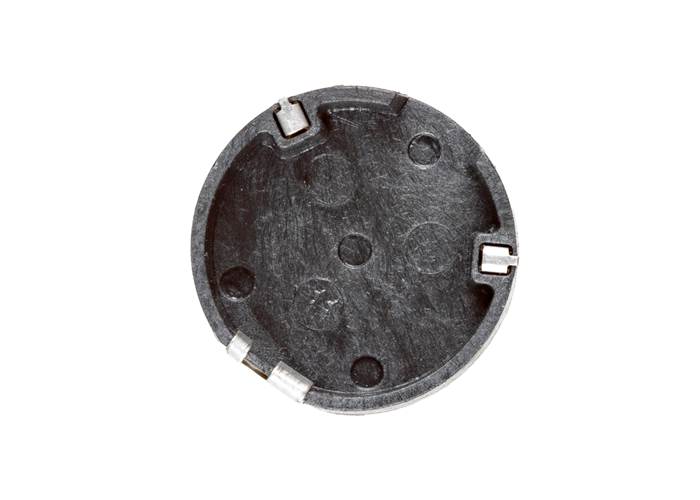

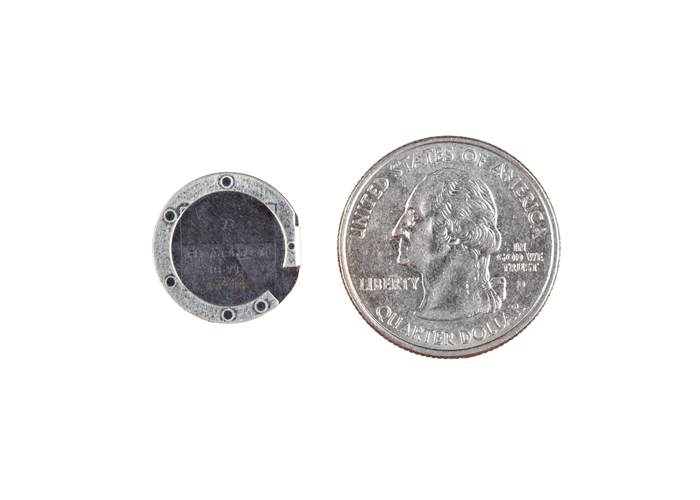

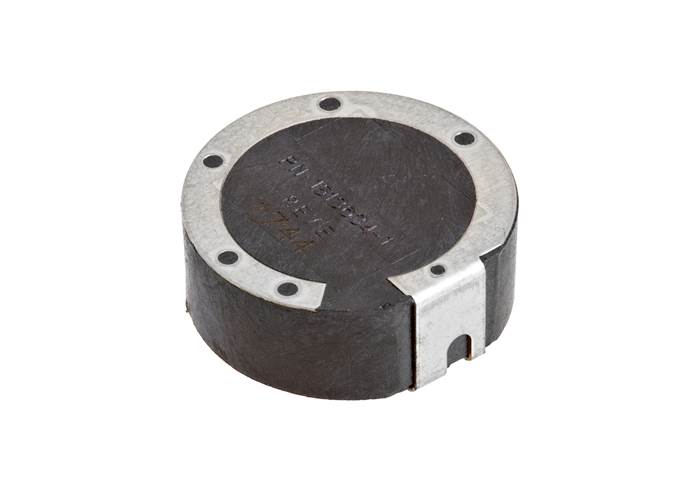

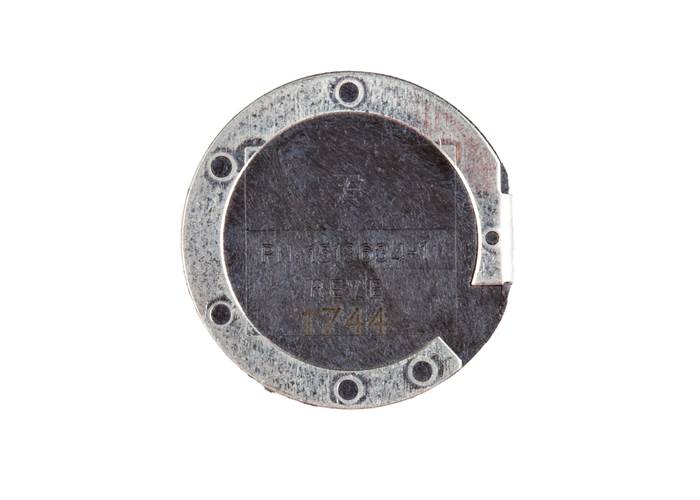

GPS Antenna - TE Puck PCB Mount

This surface mount GPS puck antenna has a 16mm diameter and 6.05mm height. It has a frequenct range of 1565MHz ~ 1585MHz.

AUD$ 4.30

Special Order

Shipping from $2.90

+400 more from our supplier in 7-10 days

Our Code: SKU-011152

Supplier Link: [SparkFun MPN:29202]

Description

This surface mount GPS puck antenna has a 16mm diameter and 6.05mm height. It has a frequenct range of 1565MHz ~ 1585MHz.

Specifications

Frequency Range: 1565MHz ~ 1585MHz
Peak Gain: 0dBi
VSWR: < 3.0:1
Polarization: RHCP (right-hand circular)
Power Handling: 10 Watt cw
Feed Point Impedance: 50 Ohms unbalanced
