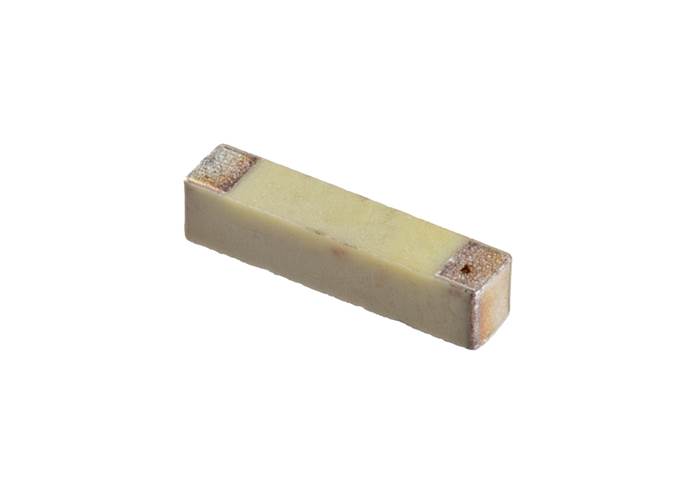

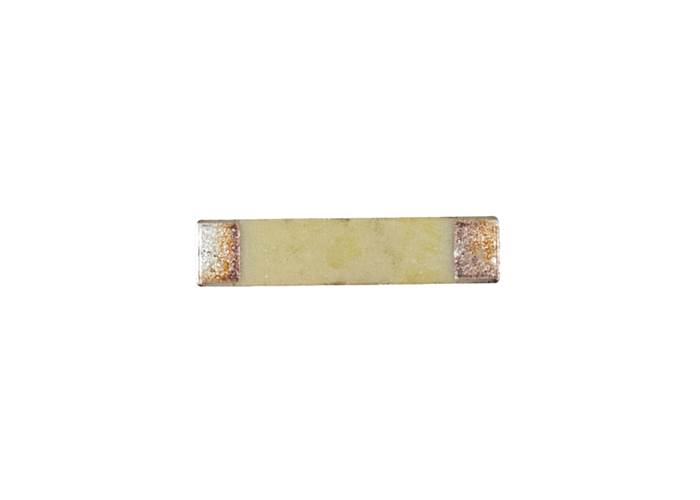

Ceramic Chip Antenna - W3062A

The W3062A is a low profile ceramic chip antenna from Pulse Electronics. It sports a frequency range of 1.565 ~ 1.585GHz.

AUD$ 3.35

Special Order

Shipping from $2.90

+510 more from our supplier in 7-10 days

Our Code: SKU-011149

Supplier Link: [SparkFun MPN:29205]

Description

The W3062A is a low profile ceramic chip antenna from Pulse Electronics. It sports a frequency range of 1.565 ~ 1.585GHz.

Specifications

Frequency Group: UHF (1HGz ~ 2GHz)
Frequency (Centre/Band): 1.575GHz
Frequency Range: 1.565GHz ~ 1.585GHz
Antenna Type: Chip
Number of Bands: 1
Return Loss: -10dB
Gain: 2.5dBi
Termination: Solder
Mounting Type: Surface Mount
Operating Temperature: -40°C - +85°C
Impedance: 50Ω

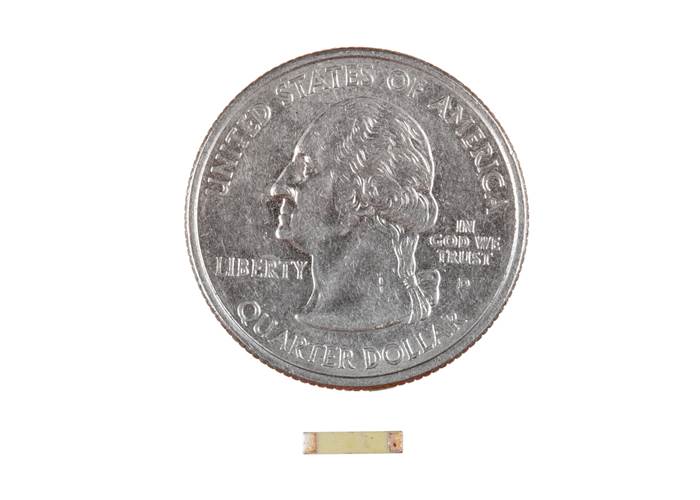

Dimensions: 7 x 1.6 x 1.6mm

Resources

Datasheet
