Many magnetic mount GPS antennae rely on being mounted on a car or other large metallic object to provide a good ground plane.
Special Order
Shipping from $2.90
+38 more from our supplier in 7-10 days
Our Code: SKU-007085
Supplier Link: [SparkFun MPN:17519]

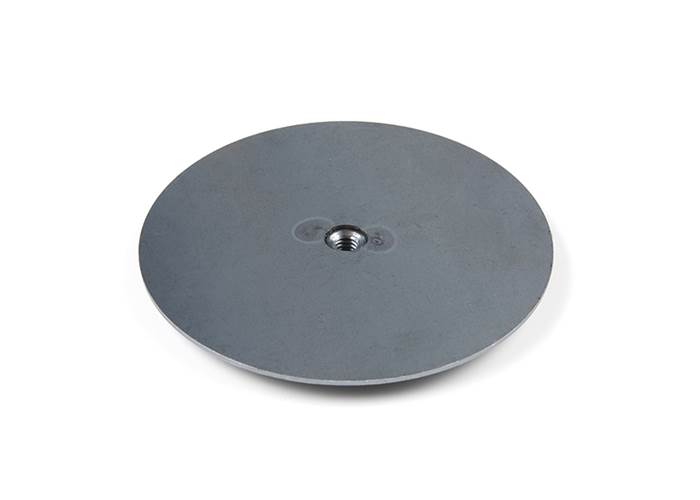

Many magnetic mount GPS antennae rely on being mounted on a car or other large metallic object to provide a good ground plane. But what if you want to use an antenna not on a car? The GPS Antenna Ground Plate is the solution! This plate significantly increases the performance of GPS and GNSS antennae.

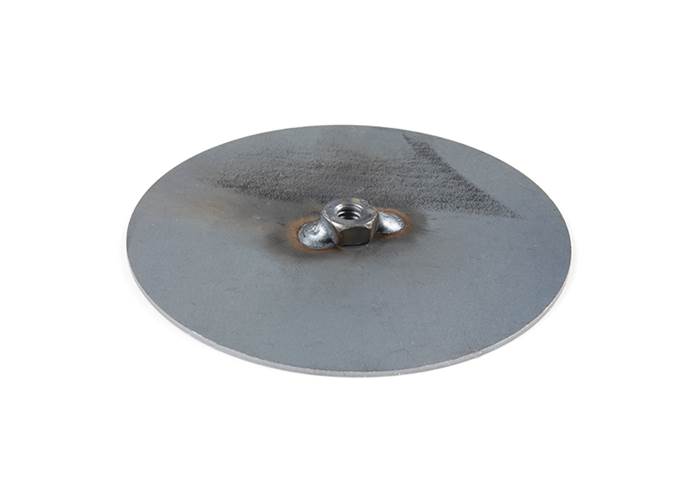

We're always trying to improve things here at SparkFun. This updated design features a 1/4-20 UNC nut welded to the bottom of a thinner plate (1/8" is now 1/16"). The nut adds additional thickness so now the tripod screw is no longer prone to the plate. We've also decreased the thickness of the plate to reduce weight.
The steel disc provides a ground plane for a low cost u-blox ANN-MB-00 antenna and enables centimetre-level positioning when coupled with a L1/L2 capable GNSS receiver such as the ZED-F9P.

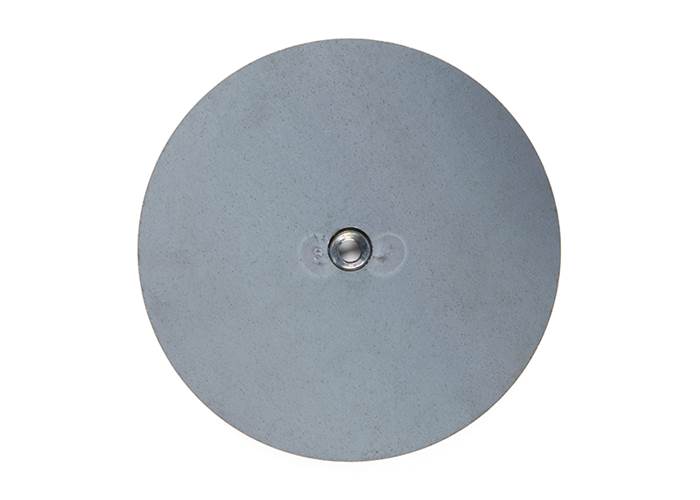

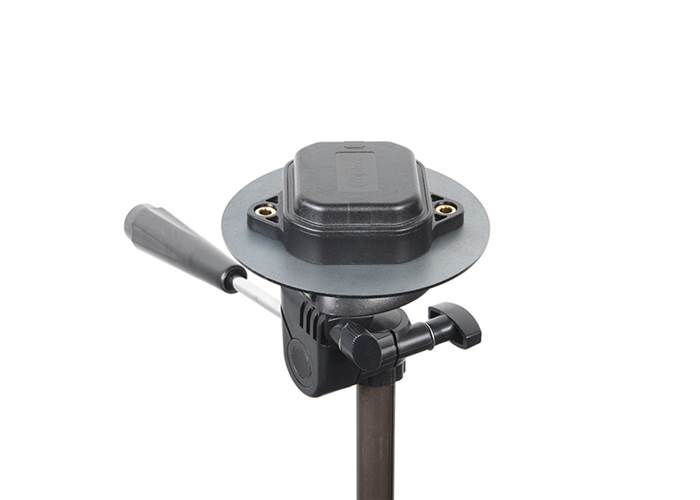

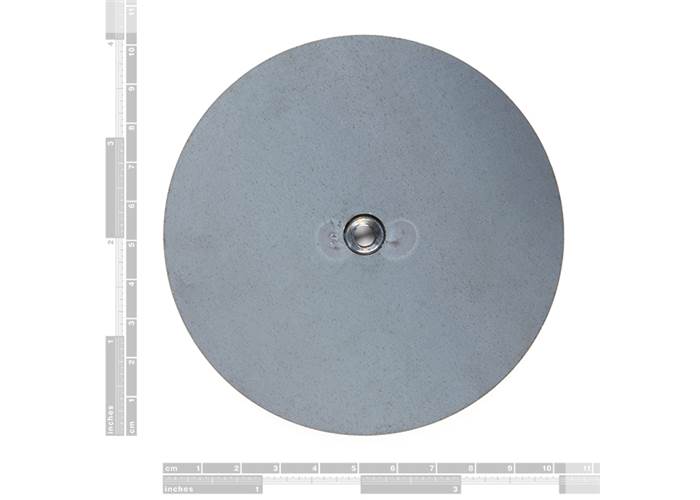

The 1/16” thick steel plate fits onto the standard ¼-20 UNC camera mounting screw. While it is not the cleanest piece of steel and weighs in at a hefty 0.4211 lbs, it does provide a solid base to allow a GPS Magnetic Mount Antenna to sit flat on the ground plane while mounted to a tripod.
