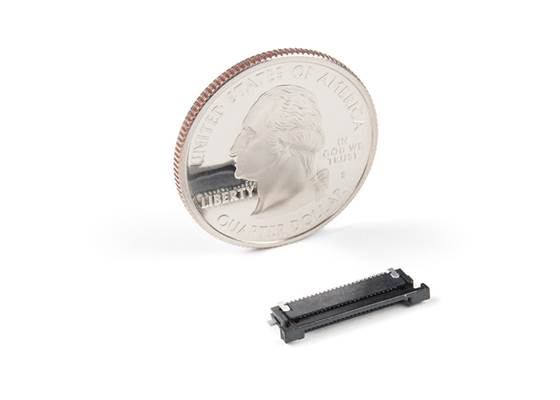

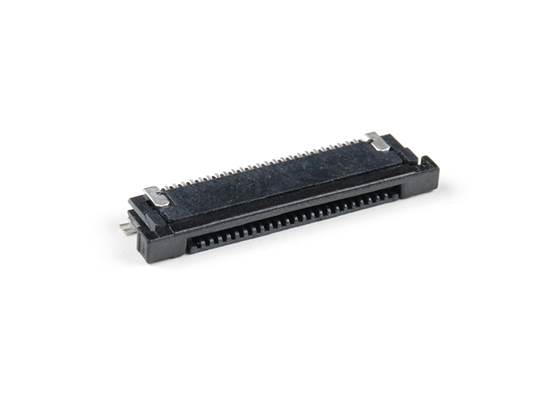

FPC Camera Connector - 24-Pin, 0.5mm (Bottom-Contact)

Amphenol FCI FFC/FPC Flexible Circuit Connectors are a broad range of innovative connector solutions to terminate FFC/FPC. This 24-Pin FPC connector has a 0.5mm pitch and comes with a bottom contact in a right angle orientation and a surface mount termination. This connector has a current rating of 500mA and a voltage rating of 50V. These 0.5mm pitch connectors provide a cost-effective, higher pin count flex connector solution. A traditional sliding actuator secures the cable.

This is the connector used on the SparkFun Edge Development Board - Apollo3 Blue to connect the (HM01B0) Himax CMOS Imaging camera.

• Number of Positions: 24 Position
• Pitch: 0.5mm
• Termination Style: SMD/SMT
• Mounting Angle: Right Angle
• Contact Location: Bottom Contact
• Contact Plating: Tin
• Current Rating: 500mA
• Minimum Operating Temperature: -55C
• Maximum Operating Temperature: +105C
• Housing Material: Liquid Crystal Polymer (LCP)
• Voltage Rating: 50V
• Contact Material: Phosphor Bronze
• Flammability Rating: UL 94 V-0
• Actuation Type: ZIF
• Insulation Resistance: 100MOhms
• FFC, FCB Thickness: 0.30mm, 0.33mm
• Height Above Board: 1.80mm
• Locking Feature: Slide Lock
• Cable End Type: Straight, Tapered
