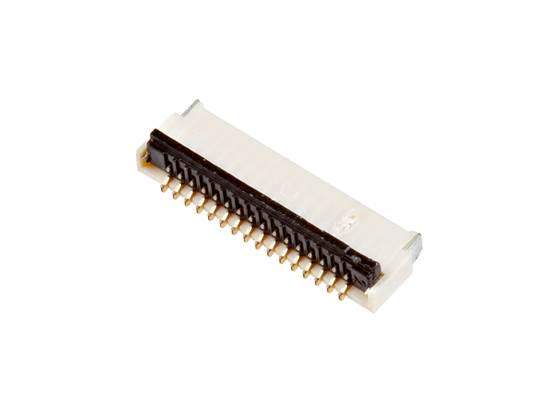

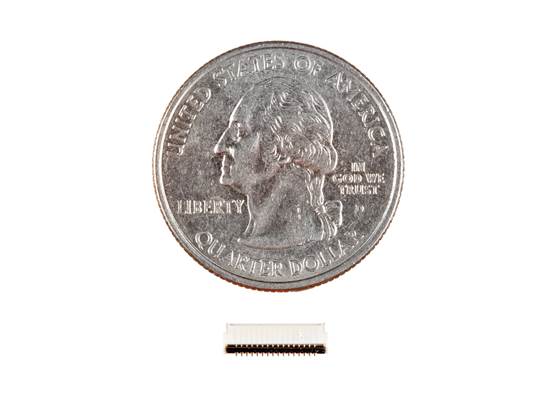

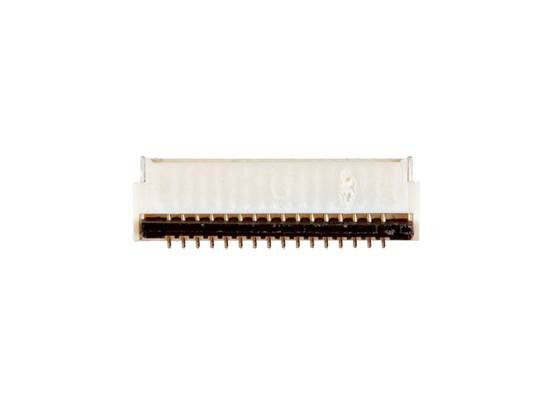

16-pin Dual Contact 0.5mm Pitch FPC Connector

This is a 16-pin surface mount dual contact 0.5mm pitch ZIF FPC connector.

AUD$ 0.85

Special Order

Shipping from $4.90

+1617 more from our supplier in 7-10 days

Our Code: SKU-011146

Supplier Link: [SparkFun MPN:29200]

Description

This is a 16-pin surface mount dual contact 0.5mm pitch ZIF FPC connector.

Specifications

  • Flat Flex Type: FFC, FPC
  • Mounting Type: Surface Mount, Right Angle
  • Connector/Contact Type: Contacts, Top and Bottom
  • Number of Positions: 16
  • Pitch: 0.5mm (0.020")
  • Termination: Solder
  • FFC, FCB Thickness: 0.30mm
  • Height Above Board: 1.00mm (0.039")
  • Locking Feature: Flip Lock, Backlock
  • Cable End Type: Tapered
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Housing Material: Thermoplastic
  • Actuator Material: Thermoplastic
  • Voltage Rating: 30V
  • Operating Temperature: -25°C ~ 85°C
  • Material Flammability Rating: UL94 V-0
  • Current Rating (Amps): 0.2A
