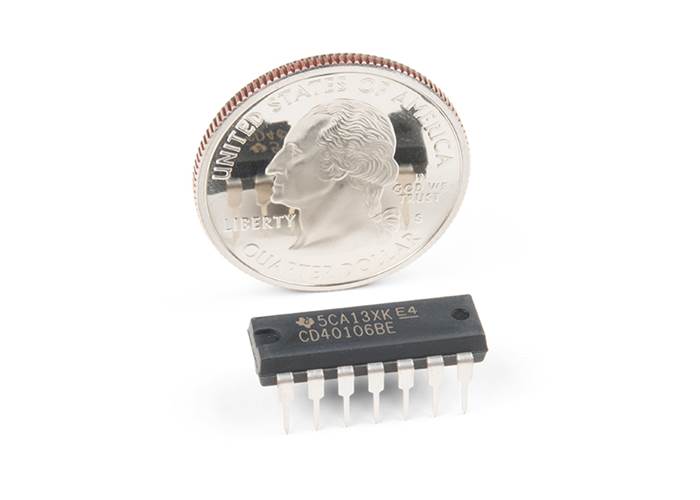

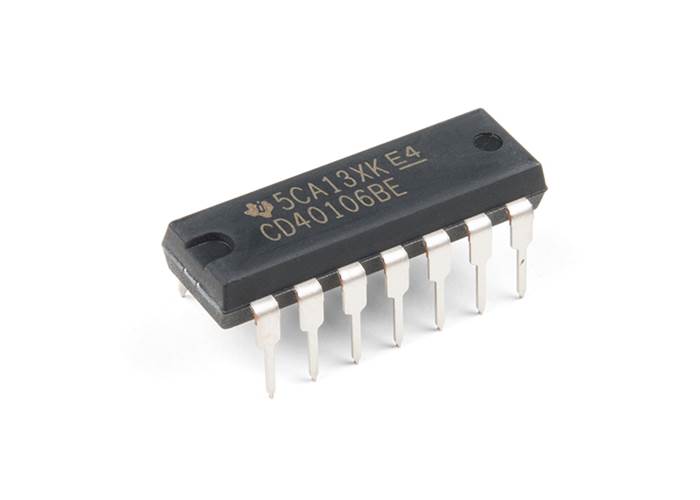

Schmitt Trigger - CD40106B

AUD $1.10

Order As Required

Back orders: Ship 621 units in 7 days

Our Code: SKU-005038

Supplier: [SparkFun MPN:13952]

The CD40106BE consists of six Schmitt-trigger circuits. Each circuit functions as an inverter with Schmitt-trigger action on the input. The trigger switches at different points for positive- and negative-going signals.


Description

The CD40106BE consists of six Schmitt-trigger circuits. Each circuit functions as an inverter with Schmitt-trigger action on the input. The trigger switches at different points for positive- and negative-going signals. The difference between the positive-going voltage (VP) and the negative-going voltage (VN) is defined as hysteresis voltage (VH).


Specifications

  • Schmitt trigger action with no external components
  • Hysteresis voltage typ. at 0.9V at VDD = 5V, 2.3V at VDD = 10V, and 3.5V at VDD = 15V
  • Noise immunity greater than 50%
  • No limit on input rise and fall times
  • Standardised, symmetrical output characteristics
  • 100% tested for quiescent current at 20sV
  • Maximum input current of 1µA at 18 V over full package temperature range; 100nA at 18V and 25°C
  • Low VDD to VSS current during slow input ramp
