Rotary Encoder - 1024 P/R (Quadrature)

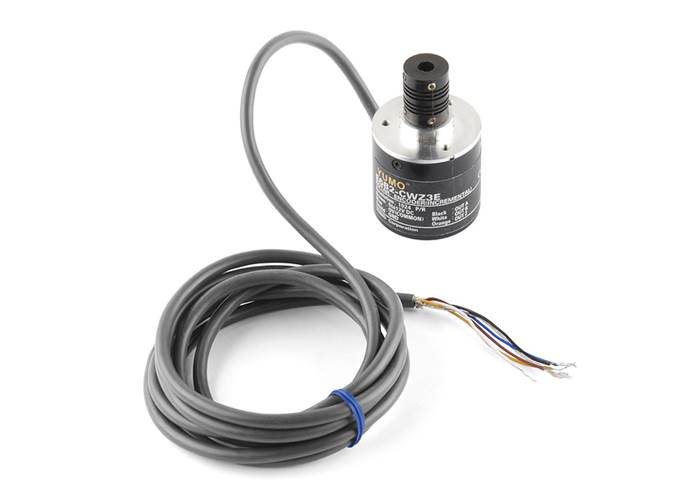

This 1024 pulse per rotation rotary encoder outputs grey code which you can interpret using a microcontroller and find out which direction the shaft is turning and by how much. This allows you to add feedback to motor control systems.

AUD$ 94.95

Special Order

Shipping from $7.90

+94 more from our supplier in 7-10 days

Our Code: SKU-000893

Supplier Link: [SparkFun MPN:11102]

Description

This 1024 pulse per rotation rotary encoder outputs grey code which you can interpret using a microcontroller and find out which direction the shaft is turning and by how much. This allows you to add feedback to motor control systems. Encoders of this kind are often used in balancing robots and dead reckoning navigation but it could also be used as a very precise input knob.

Specifications

Resolution: 1024 Pulse/Rotation
Input Voltage: 5 - 12VDC
Maximum Rotating Speed: 6000rpm
Allowable Radial Load: 5N
Allowable Axial Load: 3N
Cable Length: 50cm
Shaft Diameter: 6mm
