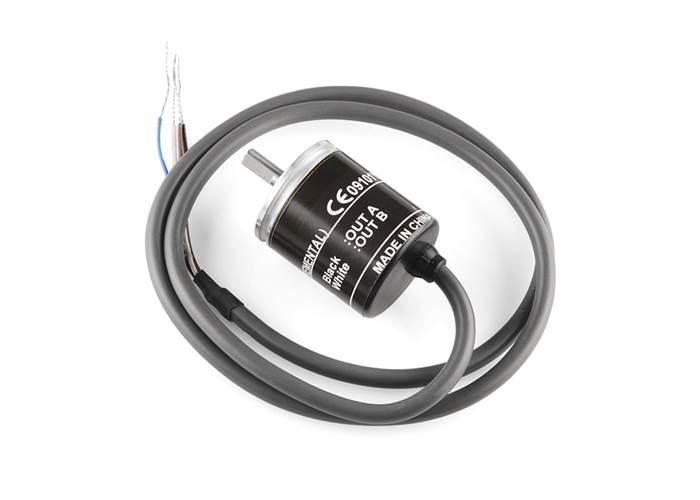

Rotary Encoder - 200 P/R (Quadrature)

This 200 pulse per rotation rotary encoder outputs grey code which you can interpret using a microcontroller and find out which direction the shaft is turning and by how much. This allows you to add feedback to motor control systems.

AUD$ 92.95

Order As Required

Back orders: Ship 26 units in 7 days

Our Code: SKU-000836

Supplier: [SparkFun MPN:10932]


Description

This 200 pulse per rotation rotary encoder outputs grey code which you can interpret using a microcontroller and find out which direction the shaft is turning and by how much. This allows you to add feedback to motor control systems. Encoders of this kind are often used in balancing robots and dead reckoning navigation but it could also be used as a very precise input knob. The encoder comes with a set screw coupler which will attach to any 4mm shaft.

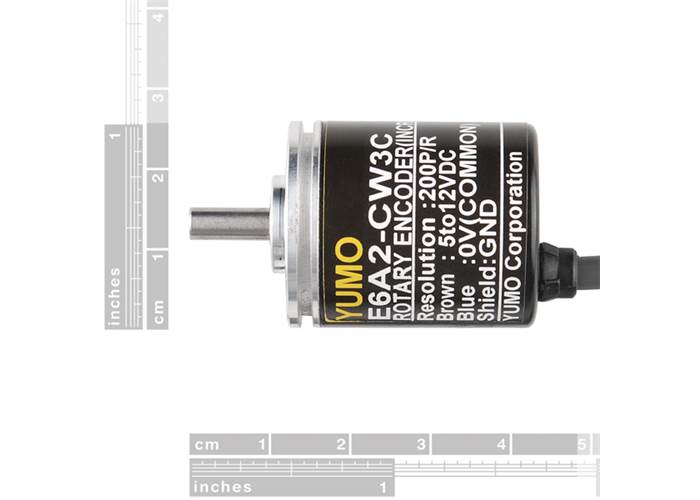

Specifications

  • Resolution: 200 Pulse/Rotation
  • Input Voltage: 5 - 12VDC
  • Maximum Rotating Speed: 5000rpm
  • Allowable Radial Load: 5N
  • Allowable Axial Load: 3N

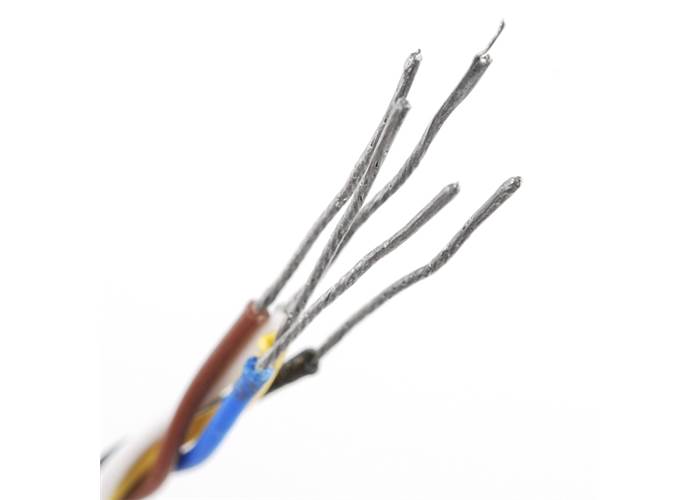

  • Cable Length: 50cm

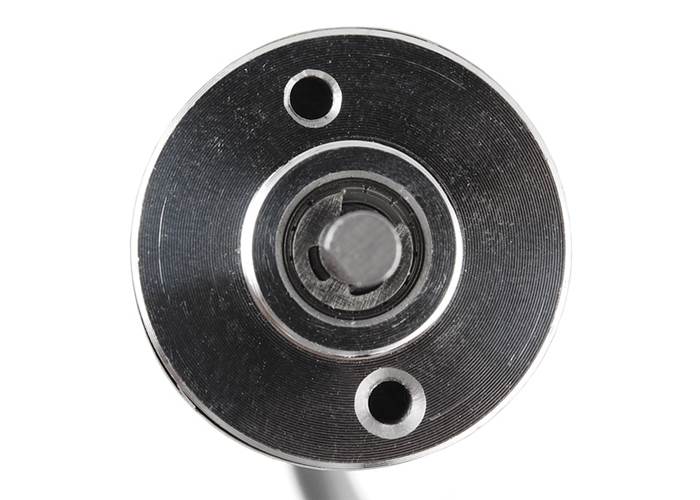

  • Shaft Diameter: 4mm
