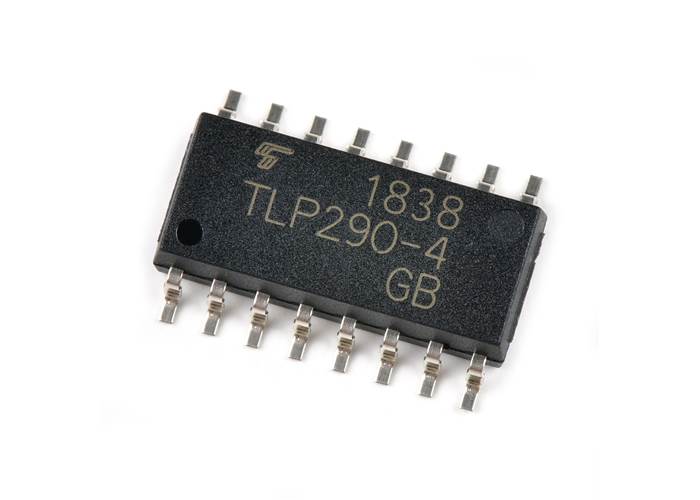

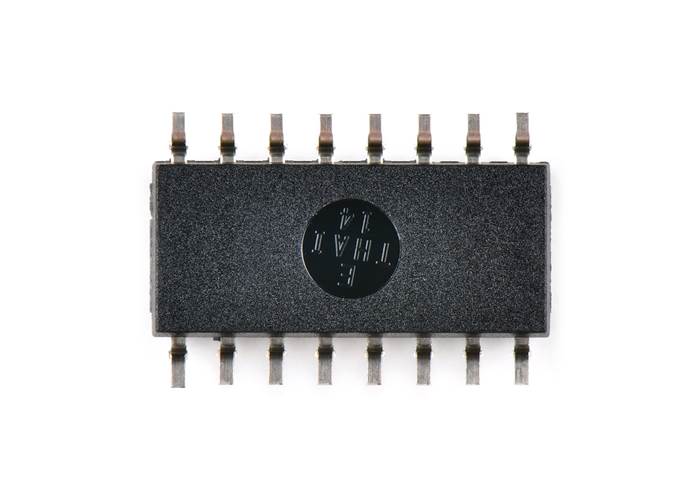

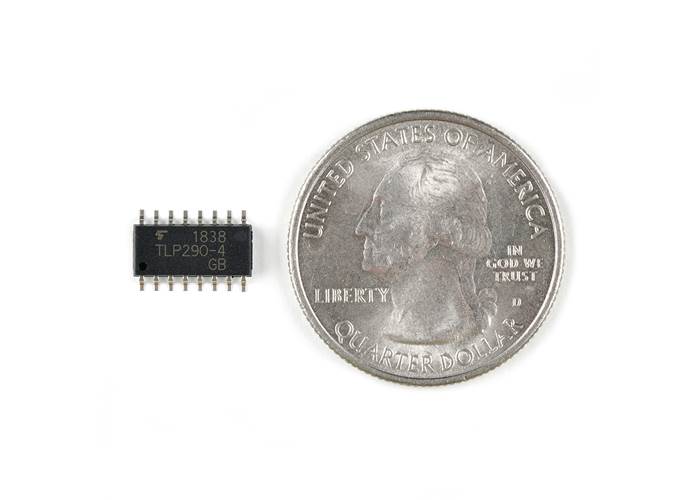

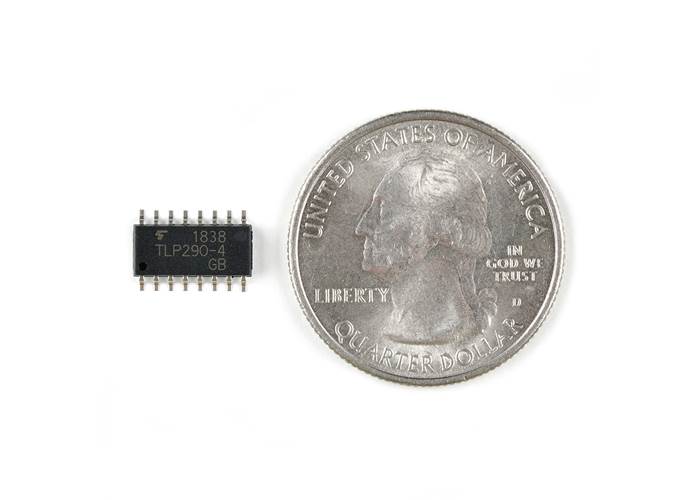

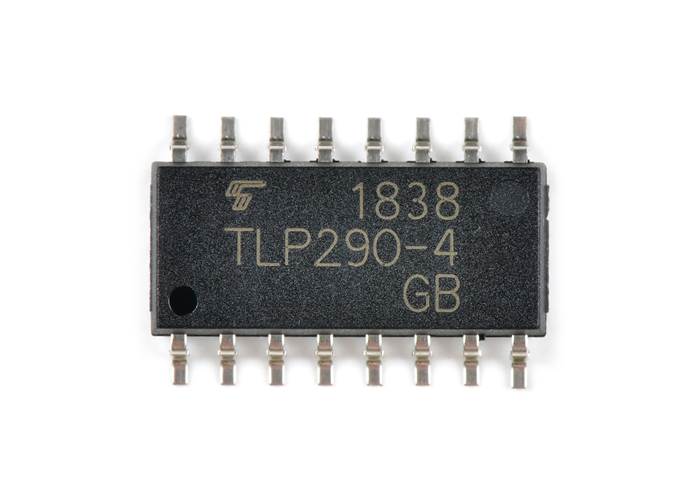

Optoisolator Transistor - TLP290-4

The TLP290-4 is an optoisolator transistor from Toshiba.

AUD$ 2.35

Special Order

Shipping from $4.90

+1340 more from our supplier in 7-10 days

Our Code: SKU-010150

Supplier Link: [SparkFun MPN:22891]

Description

The TLP290-4 is an optoisolator transistor from Toshiba.

Specifications

  • Number of channels: 4
  • Voltage - Isolation: 2500Vrms
  • Current Transfer Ratio (Min): 100% @ 5mA
  • Current Transfer Ratio (Max): 400% @ 5mA
  • Turn On / Turn Off Time (Typ): 3µs, 3µs
  • Rise / Fall Time (Typ): 2µs, 3µs
  • Input Type: AC, DC
  • Output Type: Transistor
  • Voltage - Output (Max): 80V
  • Current - Output / Channel: 50mA
  • Voltage - Forward (Vf) (Typ): 1.2V
  • Current - DC Forward (If) (Max): 50mA
  • Vce Saturation (Max): 400mV
  • Operating Temperature: -55°C ~ 110°C
