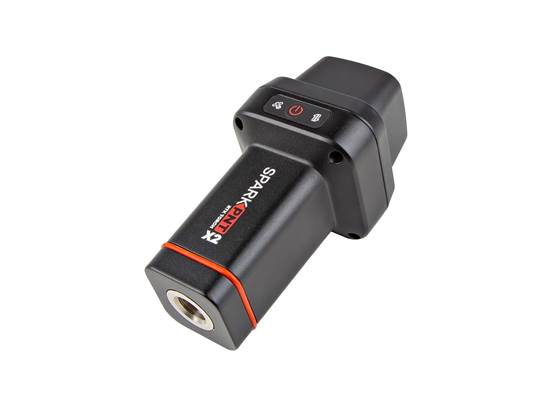

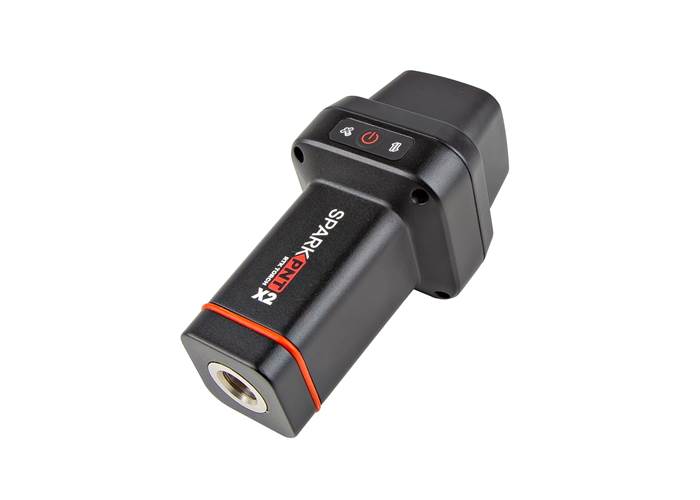

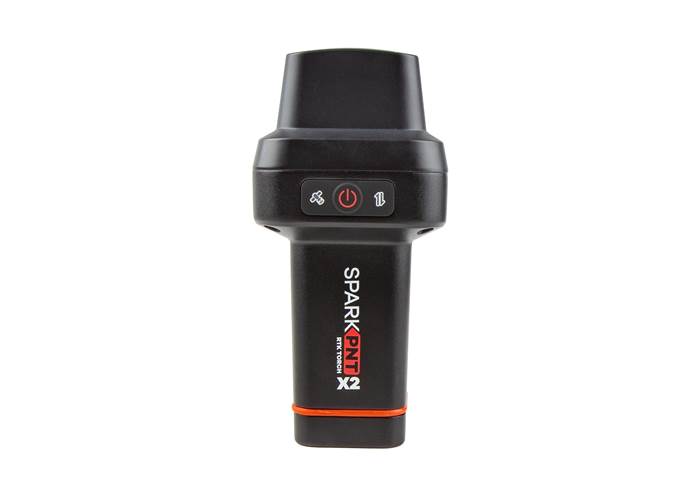

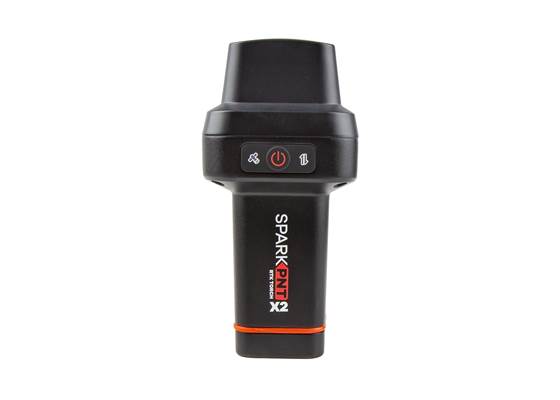

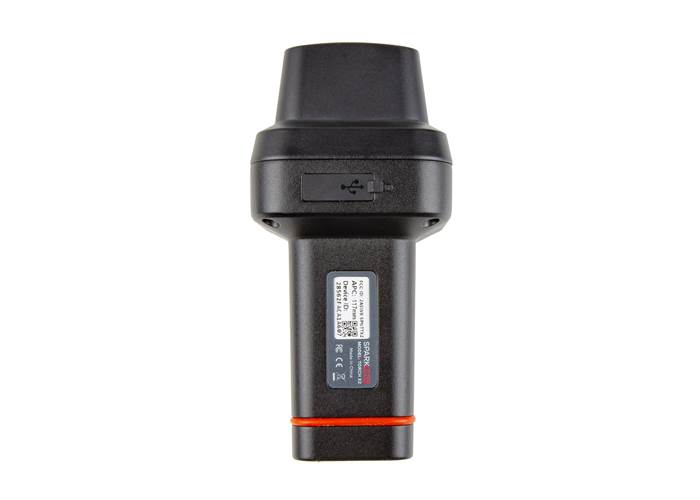

SparkPNT TX2

Our most rugged rover; a quadband receiver housed in a waterproof aluminium enclosure with unparalleled battery life and Galileo-HAS support.

AUD$ 2631.95

Special Order

Shipping from $48.60

+8 more from our supplier in 7-10 days

Our Code: SKU-011332

Supplier Link: [SparkFun MPN:29524]

Description

The TX2 is a simple-to-use high-precision GNSS device built around Quectel's quadband LG290P module, capable of 8mm accuracy when receiving RTK corrections. This reciever is protected inside a robust, waterproof housing with a compact internal helical GNSS antenna and an enclosed battery that lasts over 50 hours.

Packed with modern features:

Capable of L1/L2/L5/E6 reception with Galileo HAS support.
Contains the Apple authentication coprocessor for MFi compatibility.
Can connect to any modern cell phone or tablet over Bluetooth.
Uses WiFi to connect to corrections networks (NTRIP Client built-in) and to distribute location data over TCP.
Affordable and competitive price point when compared to similar devices.

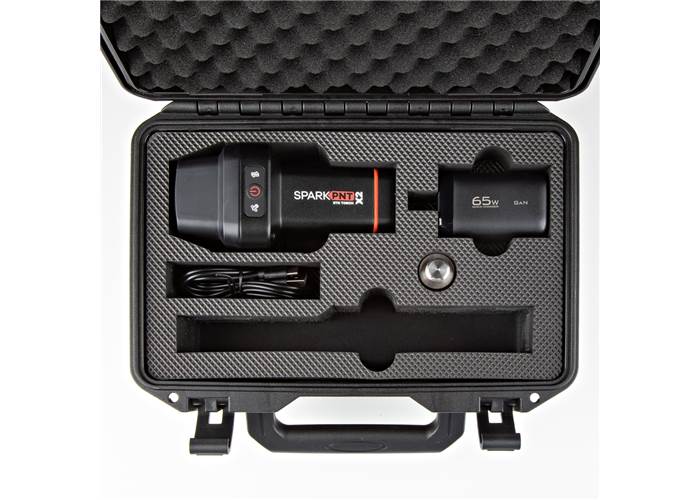

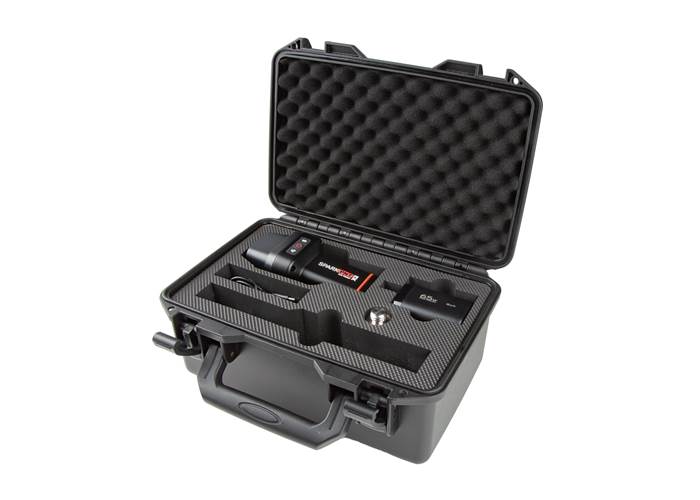

Product includes:

1x SparkPNT TX2
1x Hard-Shell Carrying Case
1x USB-A to USB-C Charging Cable
1x USB A and C Power Delivery (PD) Wall Adaptor - 65W
1x Antenna Thread Adaptor - 1/4in. to 5/8in.
1x SparkPNT Sticker

Does not include:

Specifications

MODULE	RECEPTION	CONSTELLATIONS	INTERNAL ANTENNA	BATTERY	COMMUNICATIONS HARDWARE	APPLICATION	CORRECTIONS SOURCE
LG290P	L1/L2/L5, L6/E6	GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS	Yes	50+ hours	Bluetooth, WiFi	Rover	PointPerfect, NTRIP

Overall Device Details:

Enclosed Aluminium and Plastic Design IP67 - Protected from water up to 1 meter for 30 minutes
Internal Antenna: L1/L2/L5 with ≥2.3dBi gain
Internal Battery: LiPo 7.2V 6.8Ah 48.96Wh with fast 10W charging
Run time: 50+ hours on a full charge
Single push button control
Weight: 428g (0.94 lbs)
Dimensions: 71 x 71 x 147mm (2.8 x 2.8 x 5.8in)
Antenna Phase Centre:
- L1: 115mm
- L2/L5: 118mm
- Average: 116.5mm

GNSS Receiver: Quectel LG290P

GNSS Frequency bands:

GPS: L1 C/A, L1C, L5, L2C
GLONASS: L1, L2
Galileo: E1, E5a, E5b, E6
BDS: B1I, B1C, B2a, B2b, B2I, B3I
QZSS: L1 C/A, L1C, L5, L2C
NavIC: L5
SBAS: L1 C/A
L-band PPP:
- PPP: B2b
- QZSS: L6
- Galileo HAS: E6
Concurrent signal reception: 5 + QZSS
- L1, L2, L5, E6 frequency bands
Built-in NIC anti-jamming unit
Tracking Channels: 1040
Horizontal Position Accuracy:
- Autonomous: 0.7m
- RTK: 0.8cm + 1ppm
Vertical Accuracy:
- Autonomous: 2.5m
- RTK: 1.5cm + 1ppm

Velocity Accuracy Without Aid: 0.03m/s
Accuracy of 1PPS Signal: 5ns (RMS)
RTK Convergence Time: 5s
Time to First Fix (without AGNSS):
- Cold Start: 28s
- Warm Start: 28s
- Hot Start: 1.7s
Sensitivity:
- Acquisition: -146dBm
- Tracking: -160dBm
- Reacquisition: -155dBm
Dynamic Performance:
- Maximum Altitude: 10000m
- Maximum Velocity: 490m/s
- Maximum Acceleration: 4g
Update Rate:
- Default: 10Hz
- Max: 20Hz
Operating temperature: -40°C to +85°C
