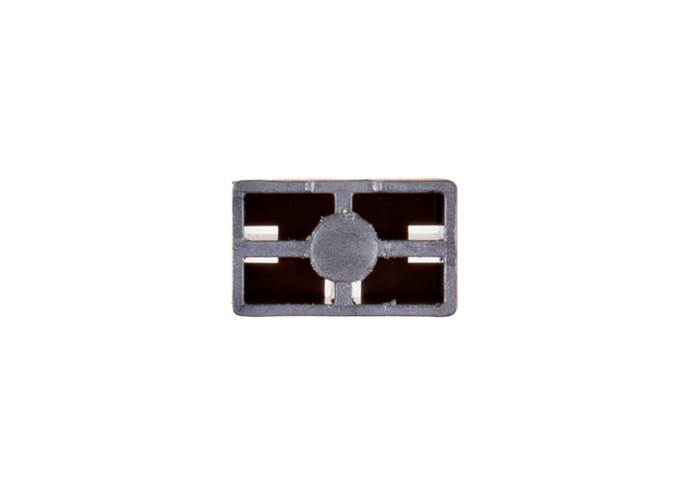

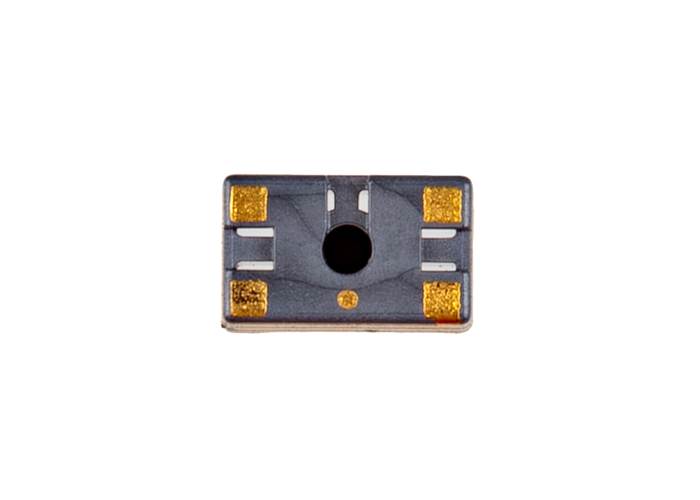

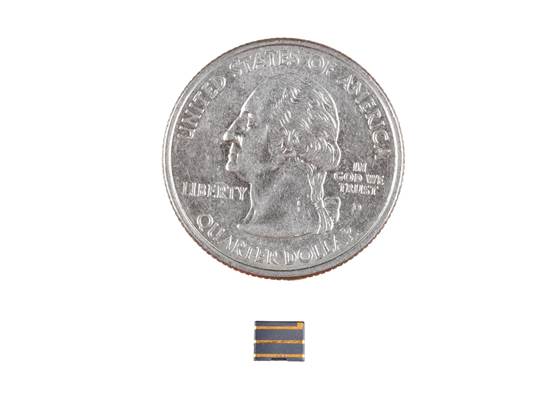

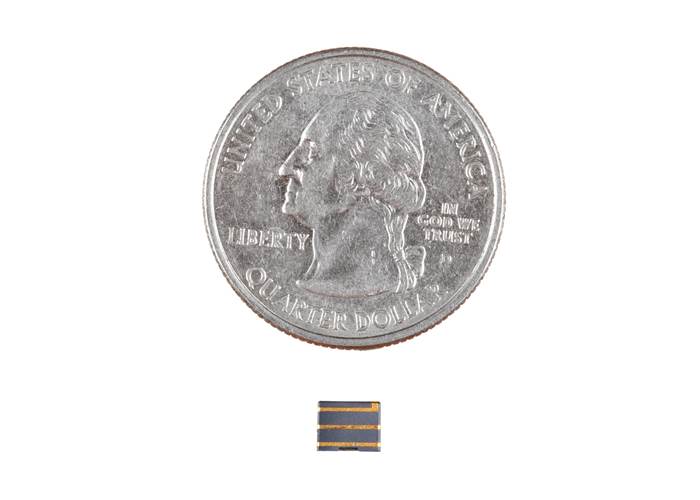

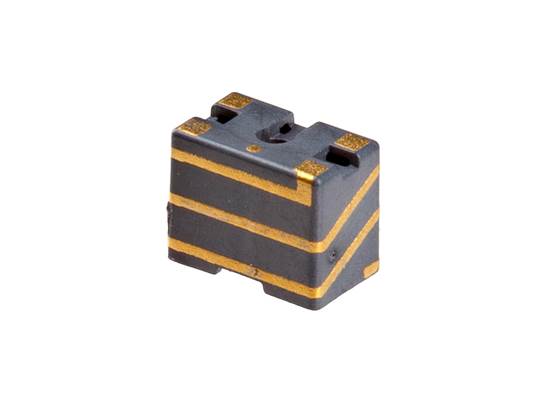

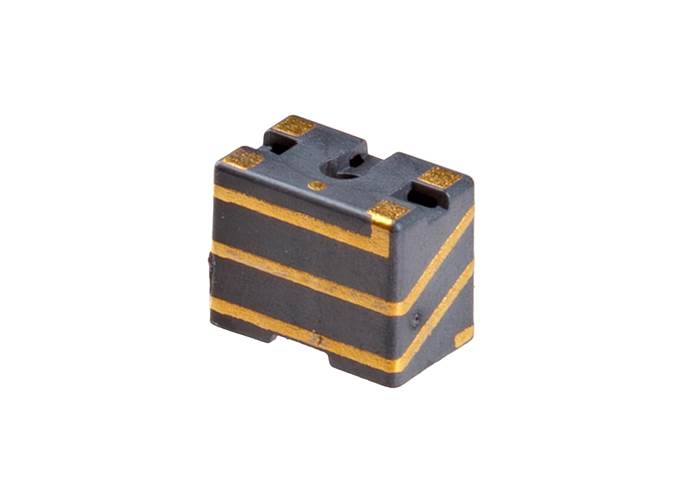

Helix GPS Antenna - Molex Molded PCB Mount

This is a small 3x5x4mm surface mount molded GPS antenna from Molex. It has a frequency range of 1561 - 1602 MHz.

AUD$ 3.35

Special Order

Shipping from $2.90

+260 more from our supplier in 7-10 days

Our Code: SKU-011148

Supplier Link: [SparkFun MPN:29206]

Description

This is a small 3x5x4mm surface mount molded GPS antenna from Molex. It has a frequency range of 1561 - 1602 MHz.

Specifications

Dimensions: 3 x 5 x 4mm
PCB Clearance: 4x6mm
Material: LDS
Antenna Type: Monopole
Frequency Range: 1561 - 1602 MHz
Return Loss: <-8dB
Peak Gain: 1.1dBi
Total Efficiency: >50%
Polarization: Elliptic
Axial Ratio: <6.0
