Straight Header - Male (PTH, 2mm, 2x3-Pin)

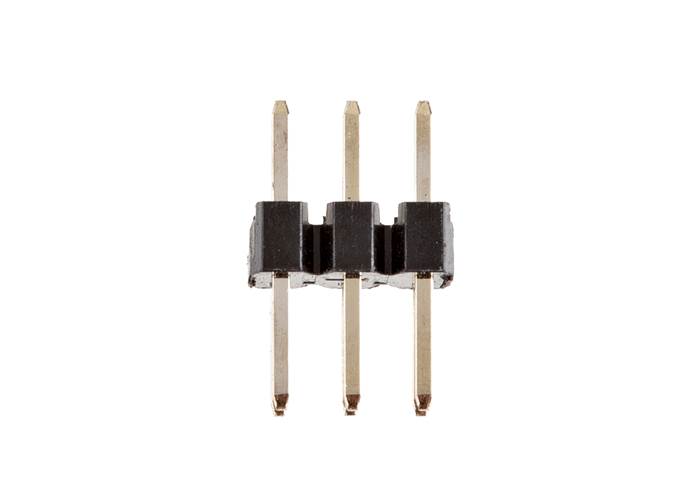

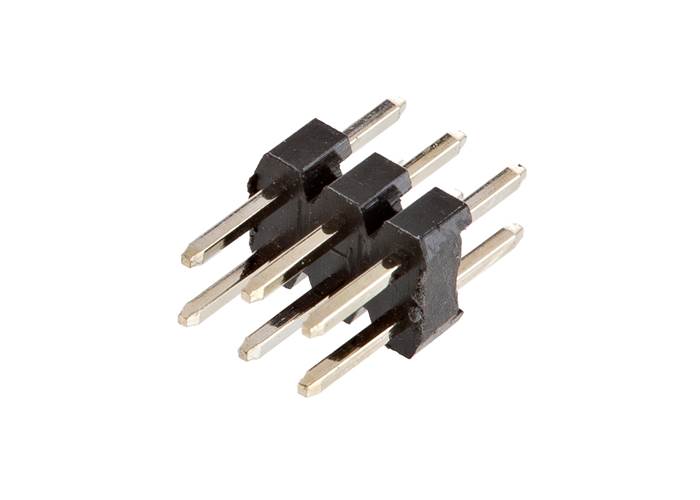

This is a simple 2x3 male PTH header.

AUD$ 0.85

Special Order

Shipping from $2.90

+1044 more from our supplier in 7-10 days

Our Code: SKU-011138

Supplier Link: [SparkFun MPN:29292]

Description

This is a simple 2x3 male PTH header. Each pin has a spacing of 2mm in between each other.

This is the same header that is included with the Ethernet Kit for Teensy 4.1

Specifications

  • Contact Type: Male Pin
  • Pitch - Mating: 2mm (0.079")
  • Number of Positions: 6
  • Number of Rows: 2
  • Row Spacing - Mating: 2mm (0.079")
  • Shrouding: Unshrouded
  • Mounting Type: Through Hole
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Length - Mating: 3.91mm (0.154")
  • Contact Length - Post: 2.79mm (0.110")
  • Overall Contact Length: 8.70mm (0.343")
  • Insulation Height: 2mm (0.079")
  • Contact Shape: Square
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: Flash
  • Contact Finish - Post: Gold
  • Contact Material: Brass
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Operating Temperature: -40°C ~ 105°C
  • Material Flammability Rating: UL94 V-0
  • Insulation Colour: Black
  • Current Rating (Amps): 1A
  • Voltage Rating: 250VAC
