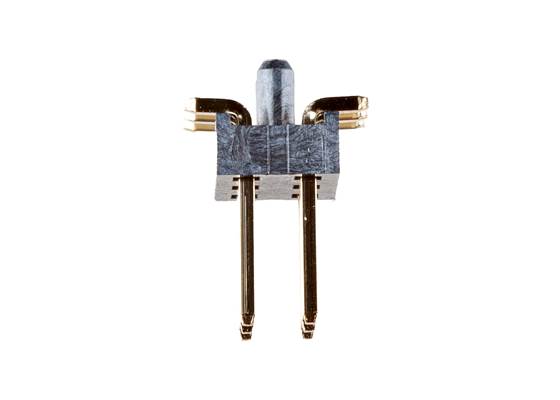

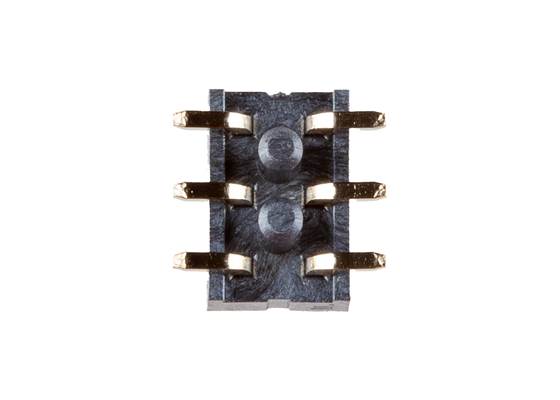

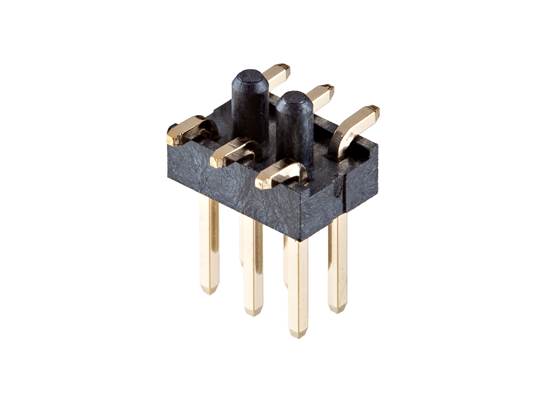

Straight Header - Male (SMD, 0.1in., 2x3-Pin)

This is a simple 2x3-pin male SMD right angle header.

AUD$ 1.30

Special Order

Shipping from $2.90

+89 more from our supplier in 7-10 days

Our Code: SKU-011070

Supplier Link: [SparkFun MPN:27910]

Description

This is a simple 2x3-pin male SMD right angle header.

The pins on this header have been spaced at the 0.1" standard.

Specifications

  • Contact Type: Male pin
  • Pitch - Mating: 0.100" (2.54mm)
  • Number of Positions: 6
  • Number of Rows: 2
  • Row Spacing - Mating: 0.100" (2.54mm)
  • Shrouding: Unshrouded
  • Mounting Type: Surface Mount
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Length - Mating: 0.240" (6.10mm)
  • Insulation Height: 0.090" (2.29mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 15.0µin (0.38µm)
  • Contact Finish - Post: Tin
  • Contact Material: Copper Alloy
  • Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
  • Material Flammability Rating: UL94 V-0
  • Insulation Colour: Black
  • Contact Finish Thickness - Post: 74.8µin (1.90µm)
  • Mfg Part #: 0015910060
