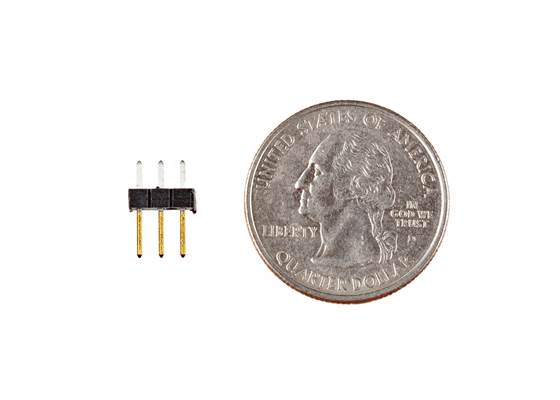

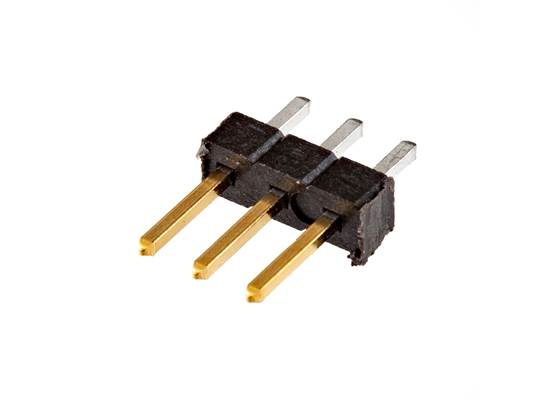

Straight Header - Male, Phosphor Bronze Contact (PTH, 0.1in., 3-Pin)

This is a simple 3-pin male PTH straight header.

AUD$ 0.50

Special Order

Shipping from $2.90

+609 more from our supplier in 7-10 days

Our Code: SKU-011078

Supplier Link: [SparkFun MPN:27908]

Description

This is a simple 3-pin male PTH straight header. Each pin can even be broken apart if you only need one or two pins instead of all three.

The pins on this header have been spaced at the 0.1" standard.

Specifications

  • Contact Type: Male
  • Pitch - Mating: 0.100" (2.54mm)
  • Number of Positions: 3
  • Shrouding: Unshrouded
  • Mounting Type: Through Hole
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Length - Mating: 0.230" (5.84mm)
  • Contact Length - Post: 0.120" (3.05mm)
  • Overall Contact Length: 0.450" (11.43mm)
  • Insulation Height: 0.100" (2.54mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 10.0µin (0.25µm)
  • Contact Finish - Post: Tin
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Operating Temperature: -65°C ~ 125°C
  • Material Flammability Rating: UL94 V-0
  • Current Rating: 3A
  • Contact Finish Thickness - Post: 100.0µin (2.54µm)
  • Mfg Part #: PBC03SAAN
