Easily connect with the SparkFun DE9 Male Breakout, a compact board that brings all nine DE9 pins to a convenient 0.1in. spaced header.
Special Order
Shipping from $9.90
+173 more from our supplier in 7-10 days
Our Code: SKU-011173
Supplier Link: [SparkFun MPN:29195]

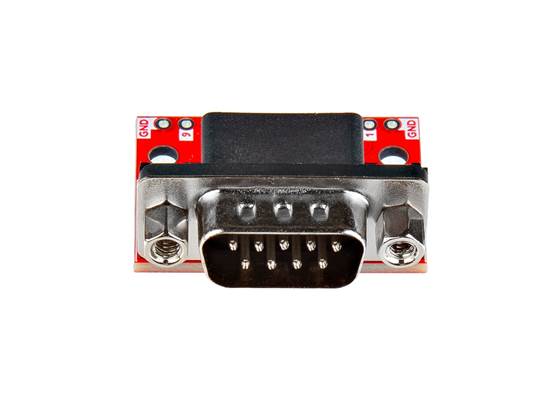

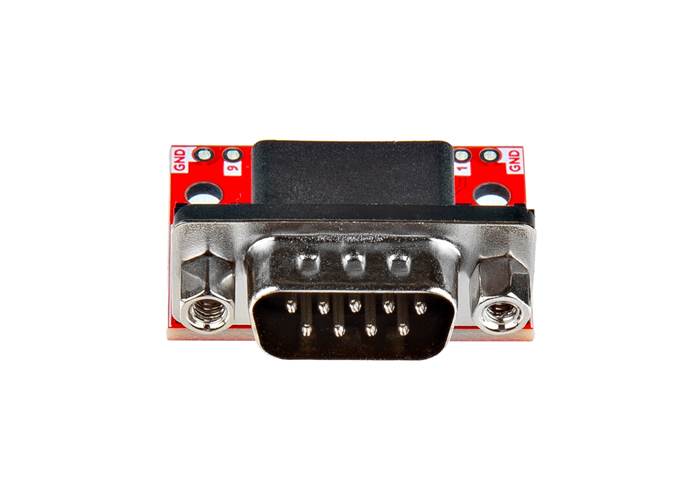

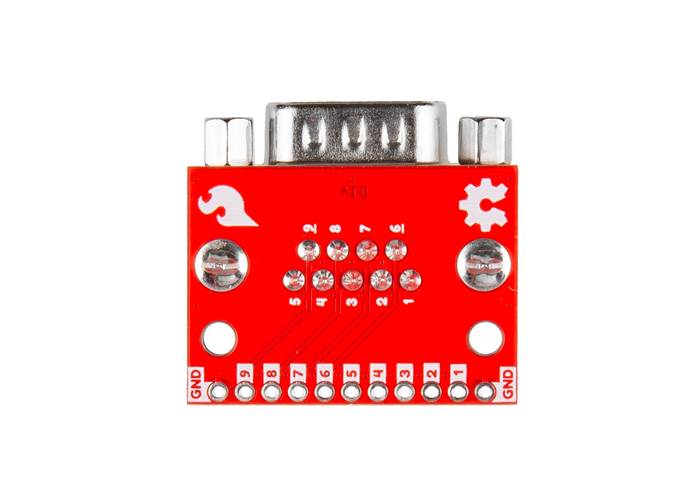

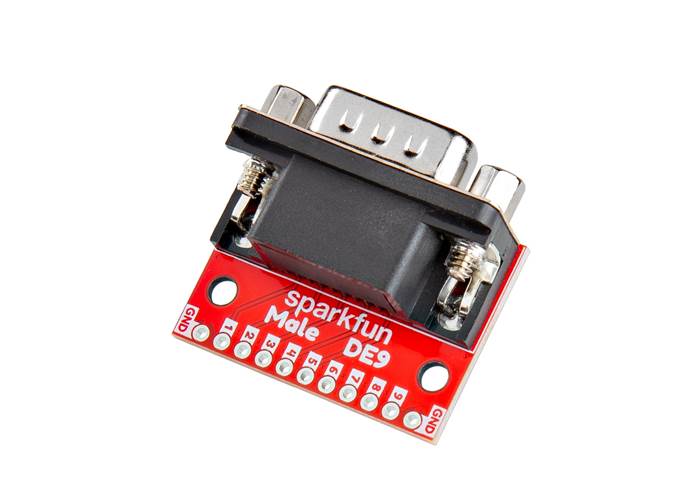

The SparkFun Male DE9 Breakout is a simple breakout board featuring a male DE9 (commonly referred to as DB9) connector. The board comes with the male DE9 connector and routes all nine of the connector's pins, along with two extra ground connections to a 0.1in.-spaced plated through-hole header.

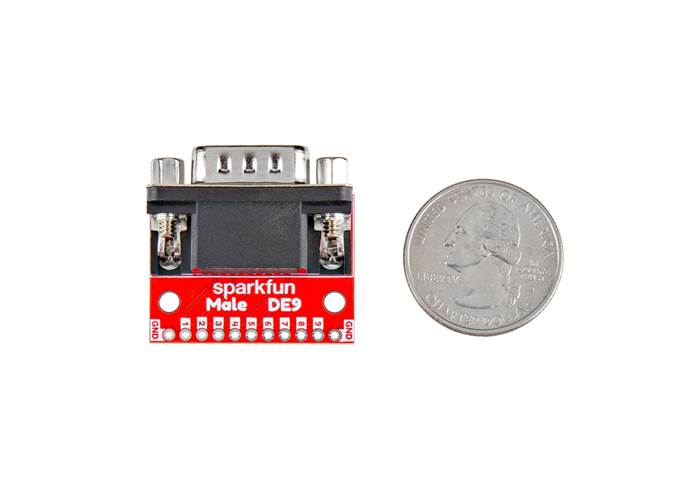

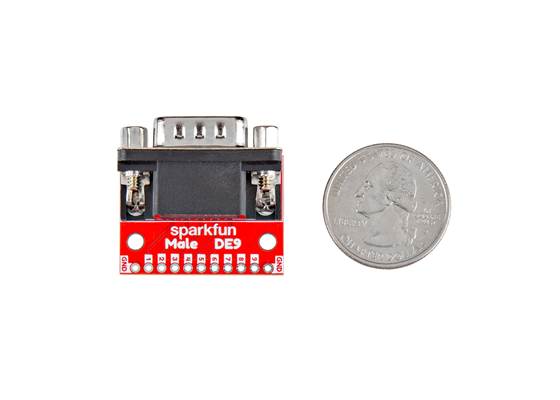

The board measures 1.25in. x 0.9in. (31.75mm x 22.86mm) and includes two mounting holes that fit a 4-40 screw.
