A simple HSTX to DVI conversion breakout that can connect your boards to DVI displays effortlessly.
Special Order
Shipping from $2.90
+110 more from our supplier in 7-10 days
Our Code: SKU-011108
Supplier Link: [SparkFun MPN:28468]

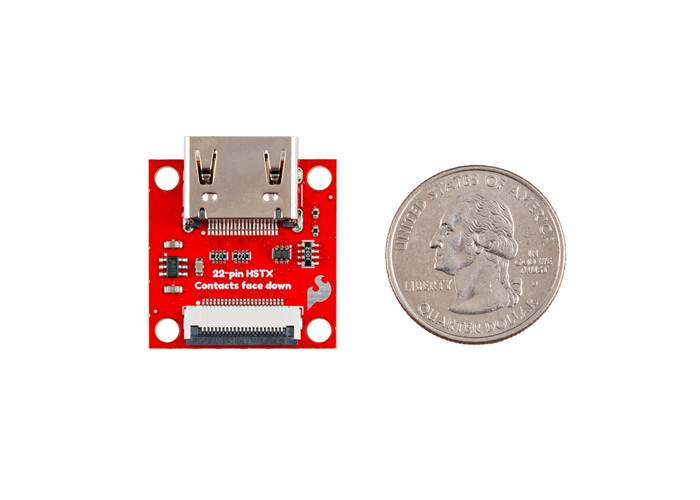

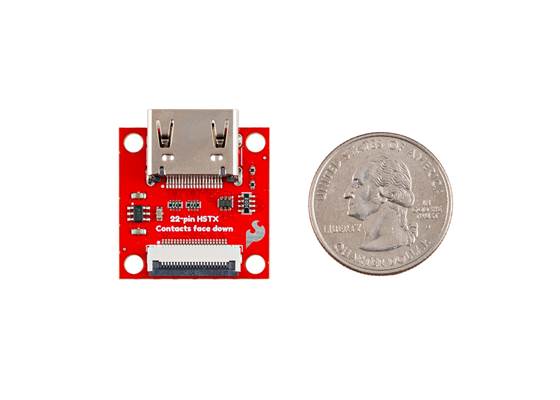

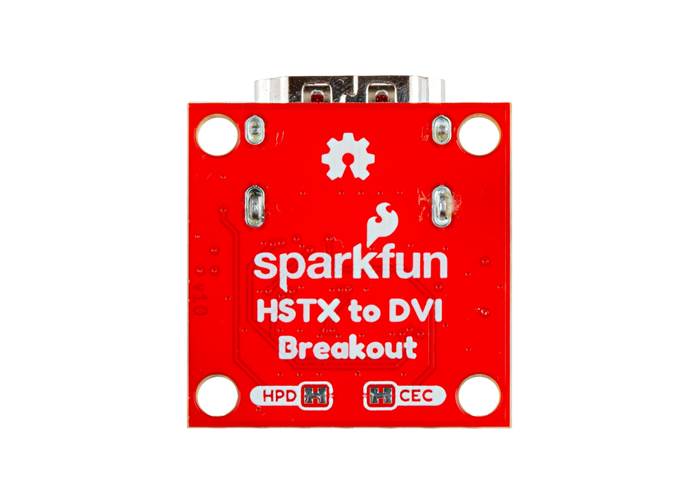

The SparkFun HSTX to DVI Breakout takes the 22-pin interface found on the HSTX connector on the RP2350 IoT RedBoard and the display connector on a Raspberry Pi 5 and translates it to an HDMI connector for DVI output.

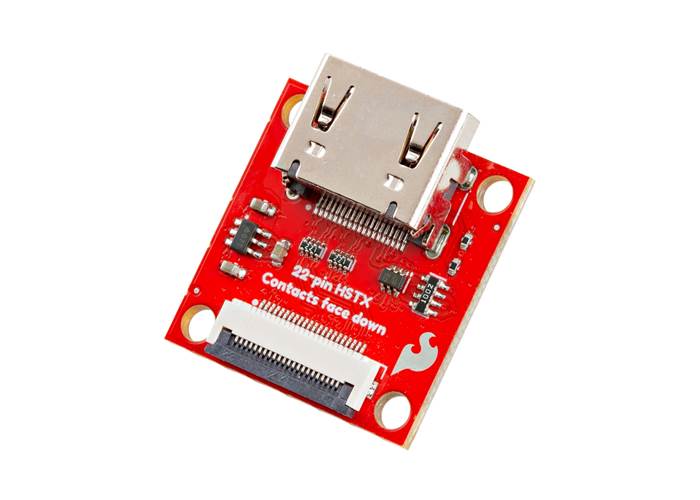

The board includes a 22-pin flex cable connector and HDMI connector, along with the required components to level shift and boost the voltage for compatibility with DVI signal requirements.
