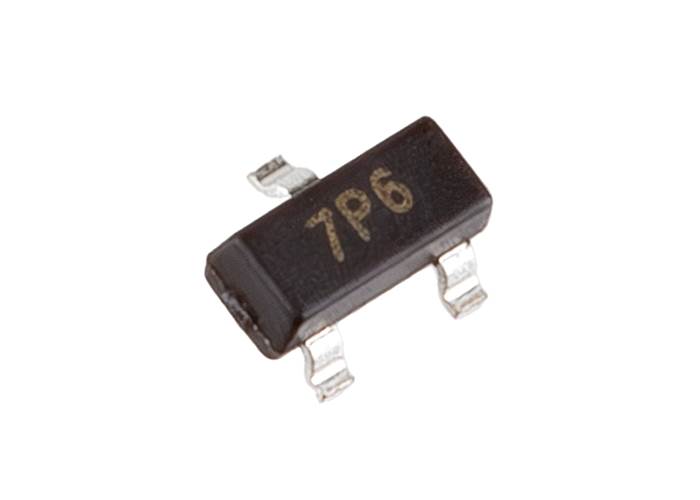

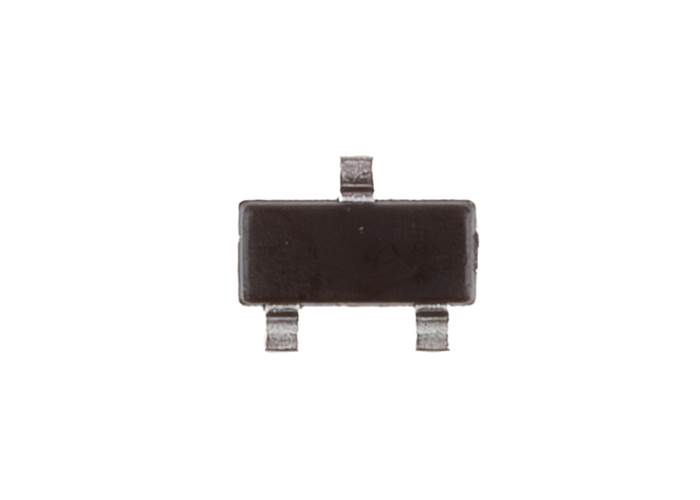

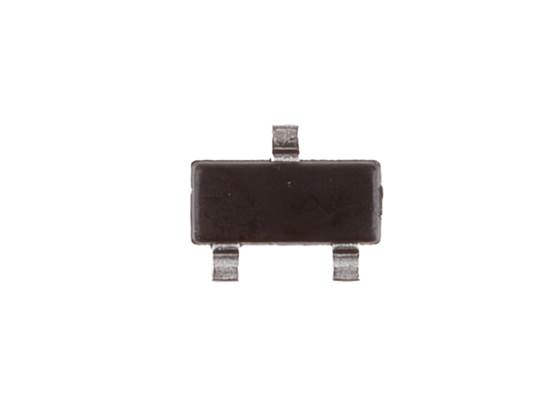

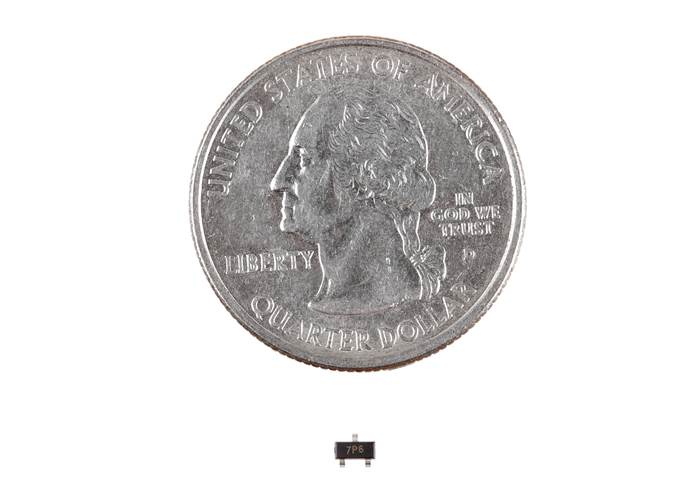

MOSFET P-CH, 60V, 900mA (ZXMP6A13FTA)

This is a common MOSFET with very low on-resistance and a control voltage (aka gate voltage) that is compatible with any 3-5V microcontroller or mechanical switch. This allows you to control high-power devices with very low-power control mechanisms.

AUD$ 1.10

Special Order

Shipping from $2.90

+4 more from our supplier in 7-10 days

Our Code: SKU-011171

Supplier Link: [SparkFun MPN:29463]

Description

This is a common MOSFET with very low on-resistance and a control voltage (aka gate voltage) that is compatible with any 3-5V microcontroller or mechanical switch. This allows you to control high-power devices with very low-power control mechanisms.

Specifications

FET Type: P-Channel
Technology: MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss): 60V
Current - Continuous Drain (Id) @ 25°C: 900mA (Ta)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Rds On (Max) @ Id, Vgs: 400mOhm @ 900mA, 10V
Vgs(th) (Max) @ Id: 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: 5.9nC @ 10V
Vgs (Max): ±20V
Input Capacitance (Ciss) (Max) @ Vds: 219pF @ 30V
Power Dissipation (Max): 625mW (Ta)
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Mfg #: ZXMP6A13FTA

Resources

Datasheet
