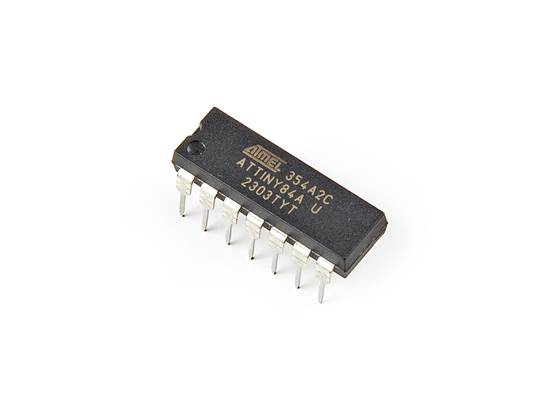

AVR® 14-Pin ATtiny Microcontroller IC - 8-Bit, 20MHz, 8KB (4K x 16) FLASH

The ATtiny84 is another of Atmel's little tiny 8-Bit Processors. 8KB (4K x 16) of program space, 12 I/O lines, and 8-channel 10 bit ADC. It will run up to 20MHz with an external crystal and can be programmed in circuit.

• Core Processor: AVR
• Core Size: 8-Bit
• Speed: 20MHz
• Connectivity: USI
• Number of I/O: 12
• Program Memory Size: 8KB (4K x 16)
• Program Memory Type: FLASH
• EEPROM Size: 512x8
• RAM Size: 512x8
• Voltage - Supply (Vcc/Vdd): 1.8V ~ 5.5V
• Data Converters: A/D 8x10b
• Oscillator Type: Internal
• Operating Temperature: -40°C ~ 85°C

• Datasheet
