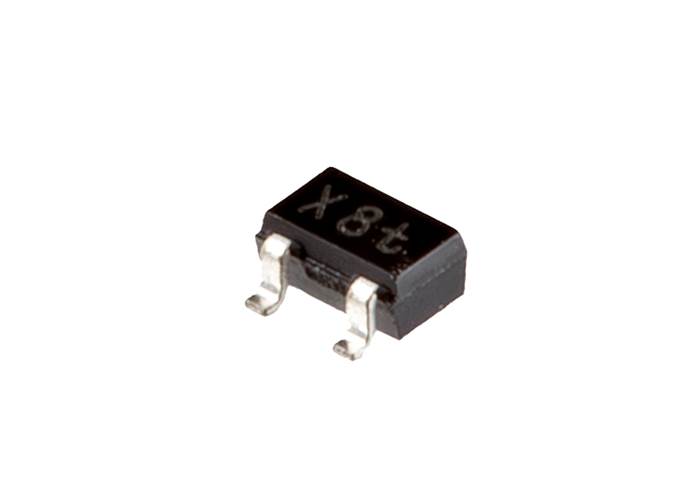

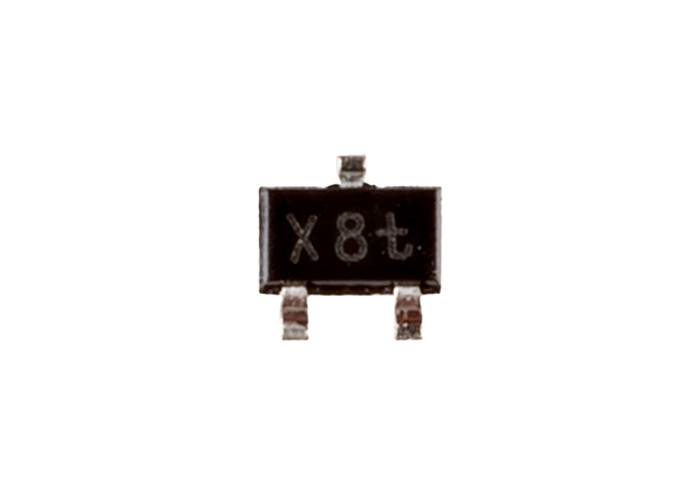

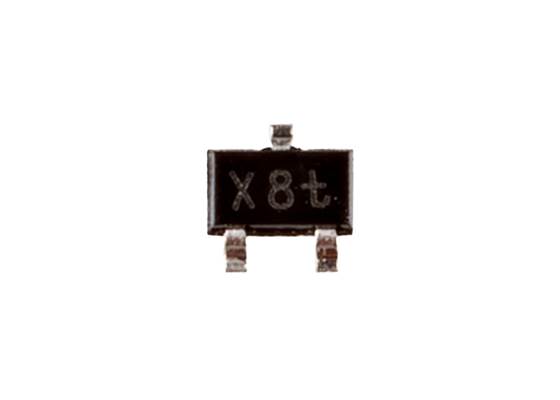

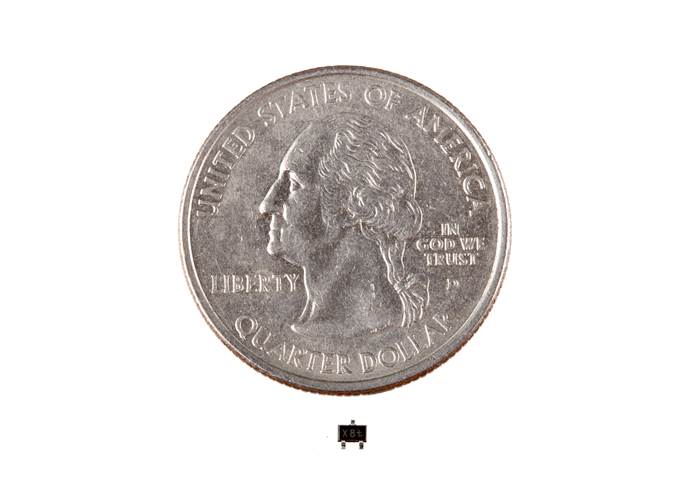

MOSFET N-CH - 60V 0.3A 2N7002PW

This is a common MOSFET with very low on-resistance and a control voltage (aka gate voltage) that is compatible with any 3-5V microcontroller or mechanical switch.

AUD$ 0.20

Special Order

Shipping from $2.90

+285 more from our supplier in 7-10 days

Our Code: SKU-011072

Supplier Link: [SparkFun MPN:27912]

Description

This is a common MOSFET with very low on-resistance and a control voltage (aka gate voltage) that is compatible with any 3-5V microcontroller or mechanical switch. This allows you to control high-power devices with very low-power control mechanisms.

Specifications

FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss): 60V
Current - Continuous Drain (Id) @ 25°C: 310mA (Ta)
Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
Rds On (Max) @ Id, Vgs: 1.6Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id: 2.1V @ 250µA
Vgs (Max): ±20V
Input Capacitance (Ciss) (Max) @ Vds: 50 pF @ 25 V
Power Dissipation (Max): 350mW (Ta)
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Mfg Part #: 2N7002KW

Resources

Datasheet
