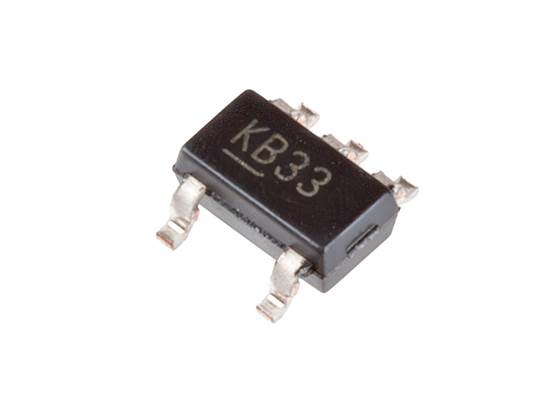

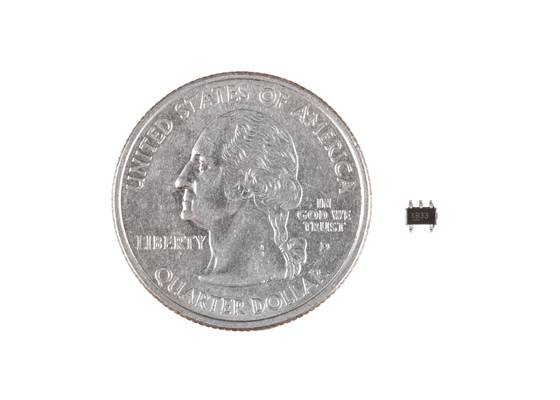

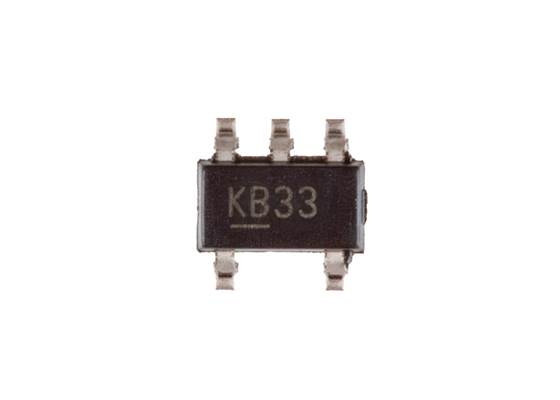

A 3.3V, 150mA low-dropout (LDO) linear voltage regulator in a SOT-23-5 package, featuring ultra-low noise, an enable pin, and reverse battery protection.
Special Order
Shipping from $2.90
+3000 more from our supplier in 7-10 days
Our Code: SKU-011259
Supplier Link: [SparkFun MPN:30226]
The MIC5205 is an efficient linear voltage regulator with ultra-low-noise output, very low dropout voltage (typically 17 mV at light loads and 165 mV at 150 mA), and very low ground current (600 µA at 100 mA output). The MIC5205 offers initial accuracy better than 1%.
Designed especially for hand-held, battery-powered devices, the MIC5205 includes a CMOS or TTL-compatible enable/shutdown control input. When shut down, power consumption drops nearly to zero. Regulator ground current increases only slightly in dropout, further prolonging battery life.
Key MIC5205 features include a reference bypass pin to improve its already excellent low-noise performance, reversed-battery protection, current limiting, and overtemperature shutdown.
