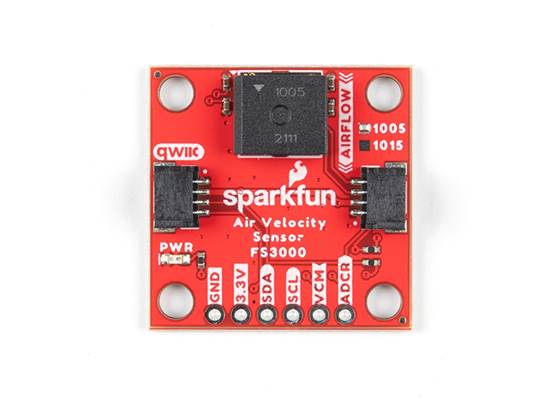

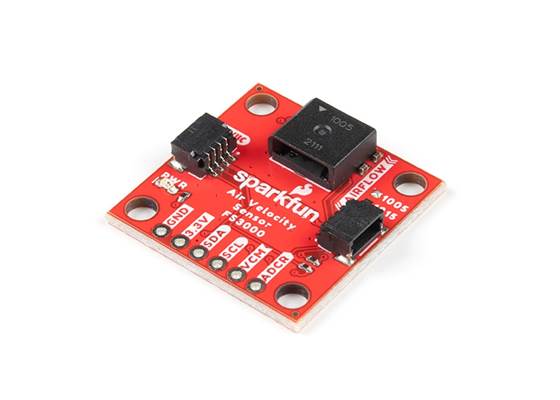

SparkFun Air Velocity Sensor Breakout - FS3000-1005 (Qwiic)

Whether you are monitoring cooling efficiency in a crowded data centre or ensuring your custom HVAC system operates at full capacity, tracking air velocity can be critical. Luckily, the SparkFun Air Velocity Sensor Breakout takes the complexity out of measuring airflow! Powered by the Renesas FS3000-1005 module, this board allows you to accurately determine the speed and consistency of the air moving through your environment.

Qwiic Convenience

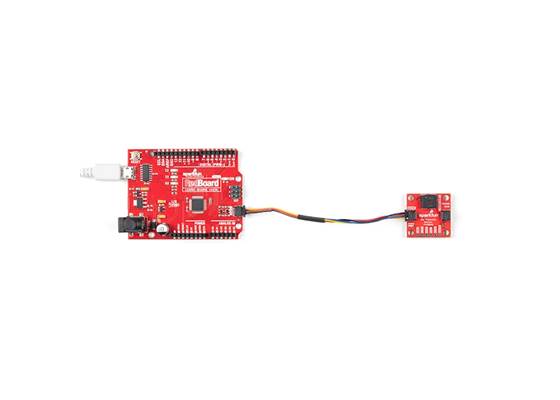

To make getting your readings as easy as possible, all communication is provided exclusively via I²C. We've routed this through our handy Qwiic Connect System, so no soldering is required to connect it to the rest of your system. However, we have still broken out 0.1”-spaced pins in case you prefer to use a standard breadboard.

Precision Airflow Monitoring

This sensor is engineered to withstand active airflow without degrading over time. We specifically designed this breakout with a few key advantages to ensure long-term reliability and ease of use:

• MEMS Technology: Utilizes a highly accurate MEMS thermopile-based sensor to measure air velocity up to 7.23m/s (16.17mph).
• Environmental Protection: Features solid thermal isolation technology and a specialised silicon carbide coating to protect the sensing elements from abrasive wear and water condensation.

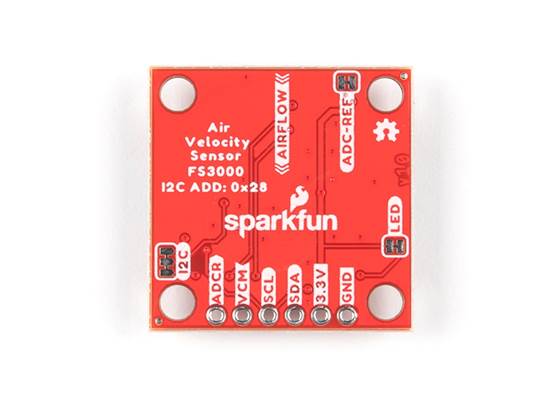

• Configurable Hardware: The back of the board includes jumpers to easily disable the power LED, adjust the I²C pull-up resistors, or provide a custom ADC reference voltage.

To make the software side just as effortless, we have created a dedicated Arduino library for the sensor. Simply search for "SparkFun Air Velocity" in the library manager, upload the example code, and you will be reading 12-bit digital airflow data over I²C in a matter of minutes!

• Schematic
• Eagle Files
• Board Dimensions
• Hookup Guide
• Datasheet (FS3000-1005)
• Log With DataLogger IoT
• Qwiic Information Page
• Libraries:
  • Arduino
  • Python / MicroPython / CircuitPython
• GitHub Hardware Repo
