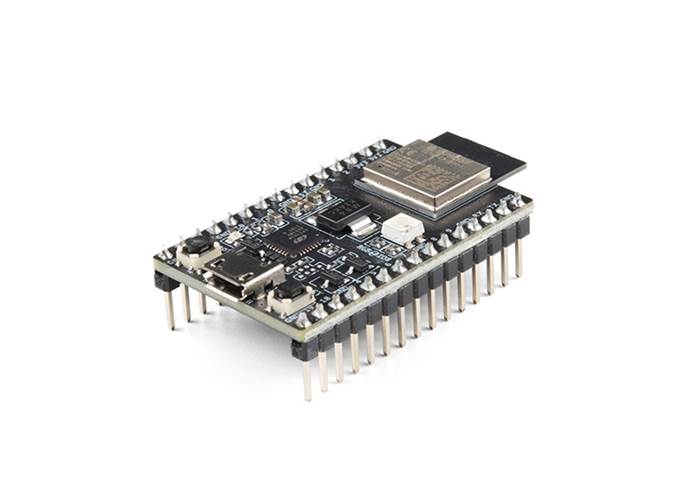

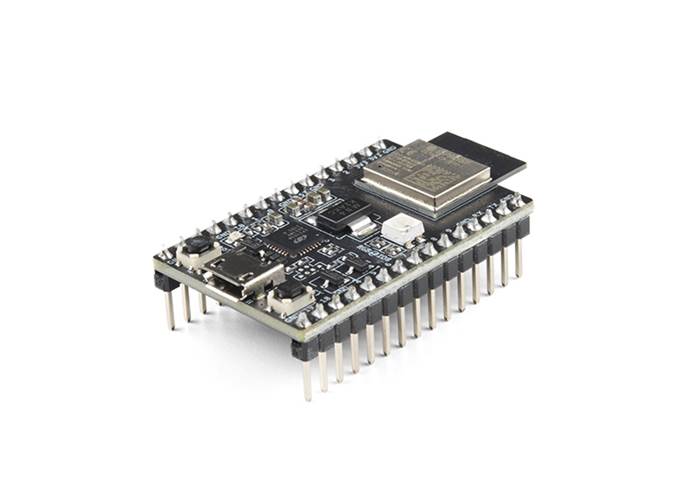

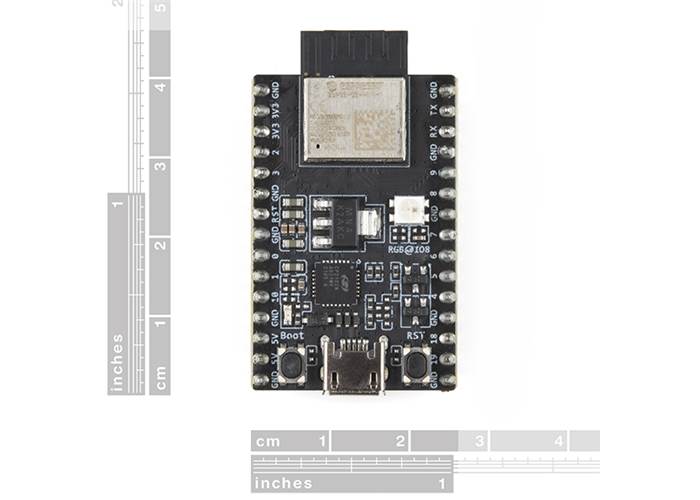

ESP32-C3 Mini Development Board

The ESP32-C3 Mini Development Board is an entry-level development board based on ESP32-C3-MINI-1, a module named for its small size. This board integrates complete Wi-Fi and Bluetooth® LE functions.

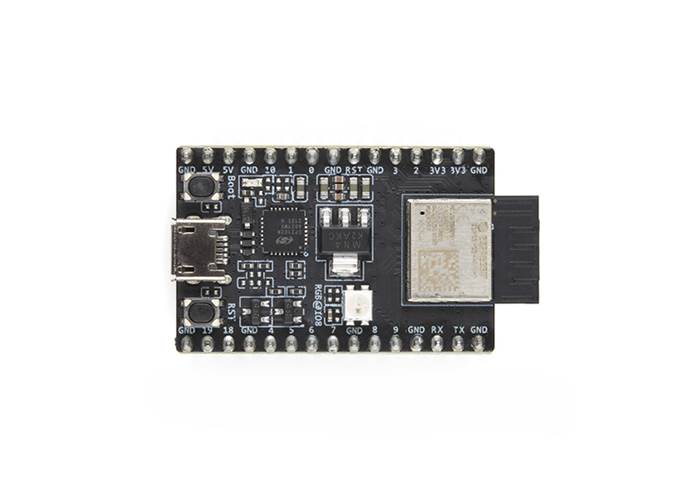

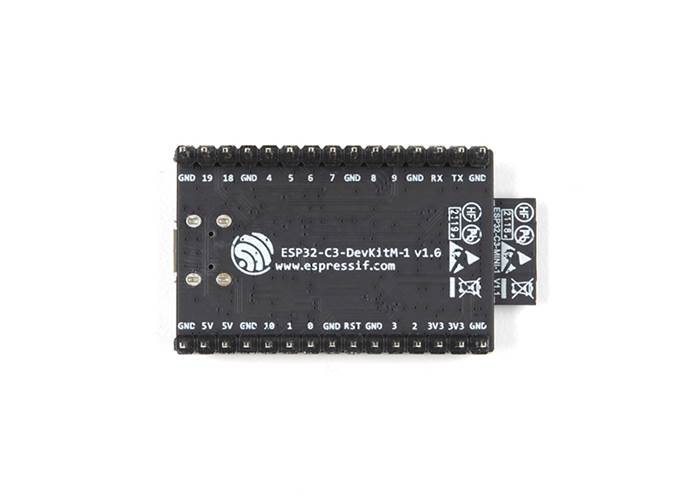

Most of the I/O pins on the ESP32-C3-MINI-1 module are broken out to the pin headers on both sides of this board for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C3-DevKitM-1 on a breadboard.

• Wi­Fi
  • IEEE 802.11 b/g/n-compliant
  • Supports 20 MHz, 40 MHz bandwidth in 2.4GHz band
  • 1T1R mode with data rate up to 150 Mbps
  • Wi-Fi Multimedia (WMM)
  • TX/RX A-MPDU, TX/RX A-MSDU
  • Immediate Block ACK
  • Fragmentation and defragmentation
  • Transmit opportunity (TXOP)
  • Automatic Beacon monitoring (hardware TSF)
  • 4 × virtual Wi-Fi interfaces
• Simultaneous support for Infrastructure BSS in Station mode, SoftAP mode, Station + SoftAP mode, and promiscuous mode. Note that when ESP32-C3 family scans in Station mode, the SoftAP channel will change along with the Station channel
  • Antenna diversity
  • 802.11mc FTM
• Bluetooth
  • Bluetooth LE: Bluetooth 5, Bluetooth mesh
  • Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
  • Advertising extensions
  • Multiple advertisement sets
  • Channel selection algorithm #2
• CPU and Memory
  • 32-bit RISC-V single-core processor, up to 160MHz
  • 384 KB ROM
  • 400 KB SRAM (16 KB for cache)
  • 8 KB SRAM in RTC
  • Embedded flash (see details in Chapter 1 Family Member Comparison)
  • SPI, Dual SPI, Quad SPI, and QPI interfaces that allow connection to multiple external flash
• Advanced Peripheral Interfaces
  • 22 × programmable GPIOs
  • Digital interfaces:
    • 3 × SPI
    • 2 × UART
    • 1 × I2C
    • 1 × I2S
    • Remote control peripheral, with 2 transmit channels and 2 receive channels
    • LED PWM controller, with up to 6 channels
    • Full-speed USB Serial/JTAG controller
    • General DMA controller (GDMA), with 3 transmit channels and 3 receive channels
    • 1 × TWAI® controller (compatible with ISO 11898-1)
  • Analogue interfaces:
    • 2 × 12-bit SAR ADCs, up to 6 channels
    • 1 × temperature sensor
  • Timers:
    • 2 × 54-bit general-purpose timers
    • 3 × watchdog timers
    • 1 × 52-bit system timer Low Power Management
  • Power Management Unit with four power modes Security
  • Secure boot
  • Flash encryption • 4096-bit OTP, up to 1792 bits for users • Cryptographic hardware acceleration: – AES-128/256 (FIPS PUB 197)
